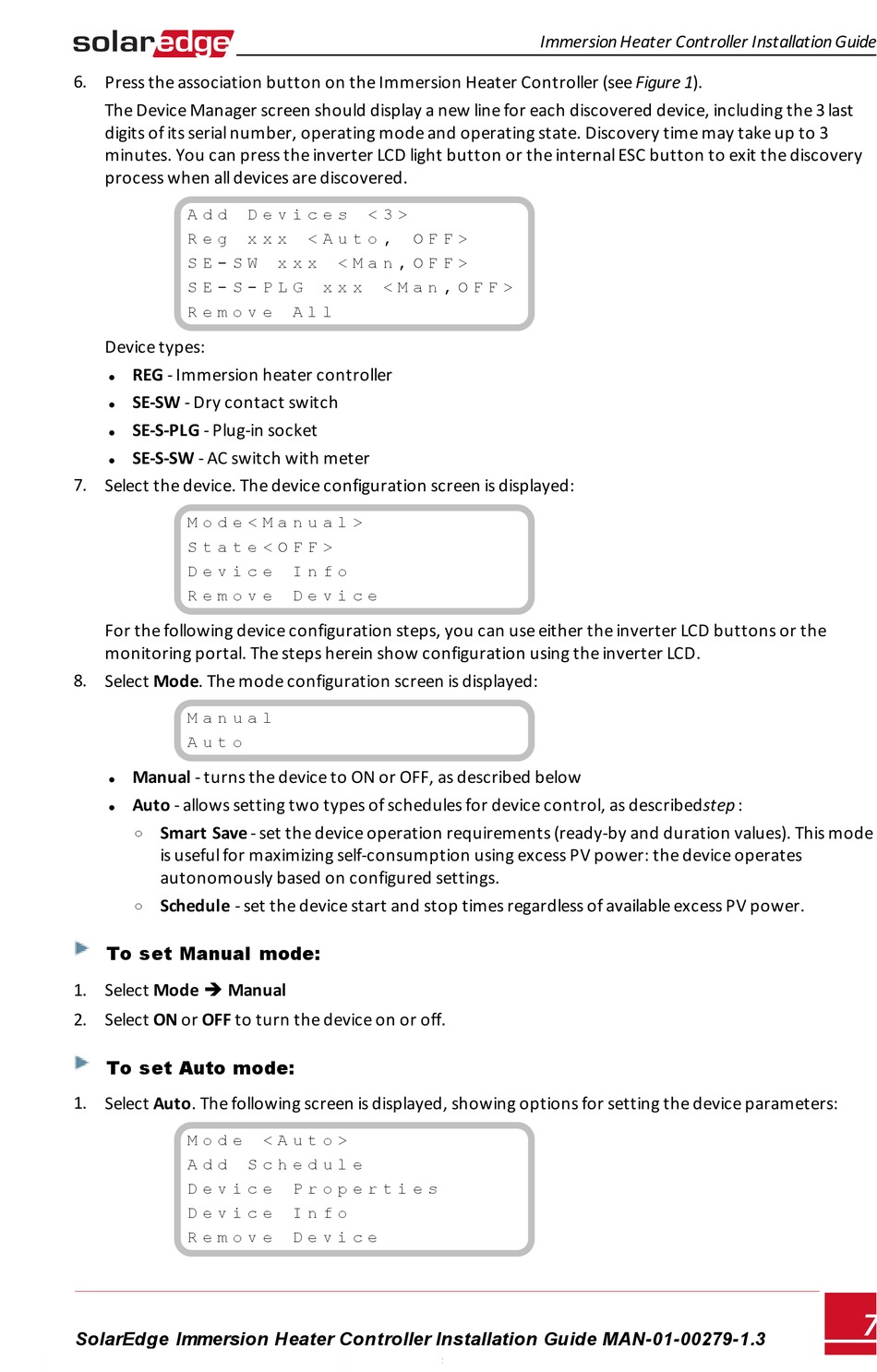

6. Press the association button on the Immersion Heater Controller (see Figure 1).
The Device Manager screen should display a new line for each discovered device, including the 3 last
digits of its serial number, operating mode and operating state. Discovery time may take up to 3
minutes. You can press the inverter LCD light button or the internal ESC button to exit the discovery
process when all devices are discovered.
A d d D e v i c e s
R e g x x x
S E - S W
S E - S - P L G
R e m o v e
Device types:
REG - Immersion heater controller
l
SE-SW - Dry contact switch
l
SE-S-PLG - Plug-in socket
l
SE-S-SW - AC switch with meter
l
7. Select the device. The device configuration screen is displayed:
M o d e < M a n u a l >
S t a t e < O F F >
D e v i c e
R e m o v e
For the following device configuration steps, you can use either the inverter LCD buttons or the
monitoring portal. The steps herein show configuration using the inverter LCD.
8. Select Mode. The mode configuration screen is displayed:
M a n u a l
A u t o
Manual - turns the device to ON or OFF, as described below
l
Auto - allows setting two types of schedules for device control, as describedstep :
l
Smart Save - set the device operation requirements (ready-by and duration values). This mode
o
is useful for maximizing self-consumption using excess PV power: the device operates
autonomously based on configured settings.
Schedule - set the device start and stop times regardless of available excess PV power.
o
To set Manual mode:
1. Select Mode è Manual
2. Select ON or OFF to turn the device on or off.
To set Auto mode:
1. Select Auto. The following screen is displayed, showing options for setting the device parameters:
M o d e
A d d S c h e d u l e
D e v i c e
D e v i c e
R e m o v e
SolarEdge-Immersion Heater Controller Installation Guide MAN-01-00279-1.3
< 3 >
< A u t o , O F F >
x x x < M a n , O F F >
x x x < M a n , O F F >
A l l
I n f o
D e v i c e
< A u t o >
P r o p e r t i e s
I n f o
D e v i c e
