Installation

Installation
CAUTION!
This product must be operated under the specified operating specifications, as described in
l
the latest technical specification datasheet.
This product must be used with immersion heaters that include a thermostat that shuts off
l
the power when reaching the required temperature.
Configure the product so that the load connected is not switched on or off more
l
frequently than specified by the load manufacturer.
Do not connect loads that require a continuous current supply (e.g. fridge, freezer).
l
Do not use the product if it is damaged or malfunctioning.
l
Never connect loads that can cause injuries or fire if they are switched on unintentionally
l
(e.g. an iron).
Do not let the product come into contact with water or other liquids.
l
The enclosed documentation is an integral part of this product. Keep the documentation
l
in a convenient place for future reference and observe all instructions contained therein.
NOTE
It is recommended to install a bypass switch between the AC cables coming from the mains and the
AC cables going to the immersion heater.
1. Release the four screws of the device front cover and remove the cover.
2. Remove the antenna taped inside the enclosure and install it at the top of the device.
3. Determine the device mounting location on the wall, as follows:
To allow proper heat dissipation, maintain a minimum clearance of 7 cm to the top and bottom
l
of the device.
Maximum distance from the inverter
l
network): 50 m when the device is installed indoors, 400 m when the device is installed outdoors
4. Position the device against the wall and mark the drilling hole locations. Do not use the device as a
drilling template as it may damage the enclosure.
5. Drill the holes and mount the device using screws and nuts. Fasten the unit to the wall.
1 Approximate values. May differ depending on specific installation conditions.
4
SolarEdge Immersion Heater Controller Installation Guide MAN-01-00279-1.3

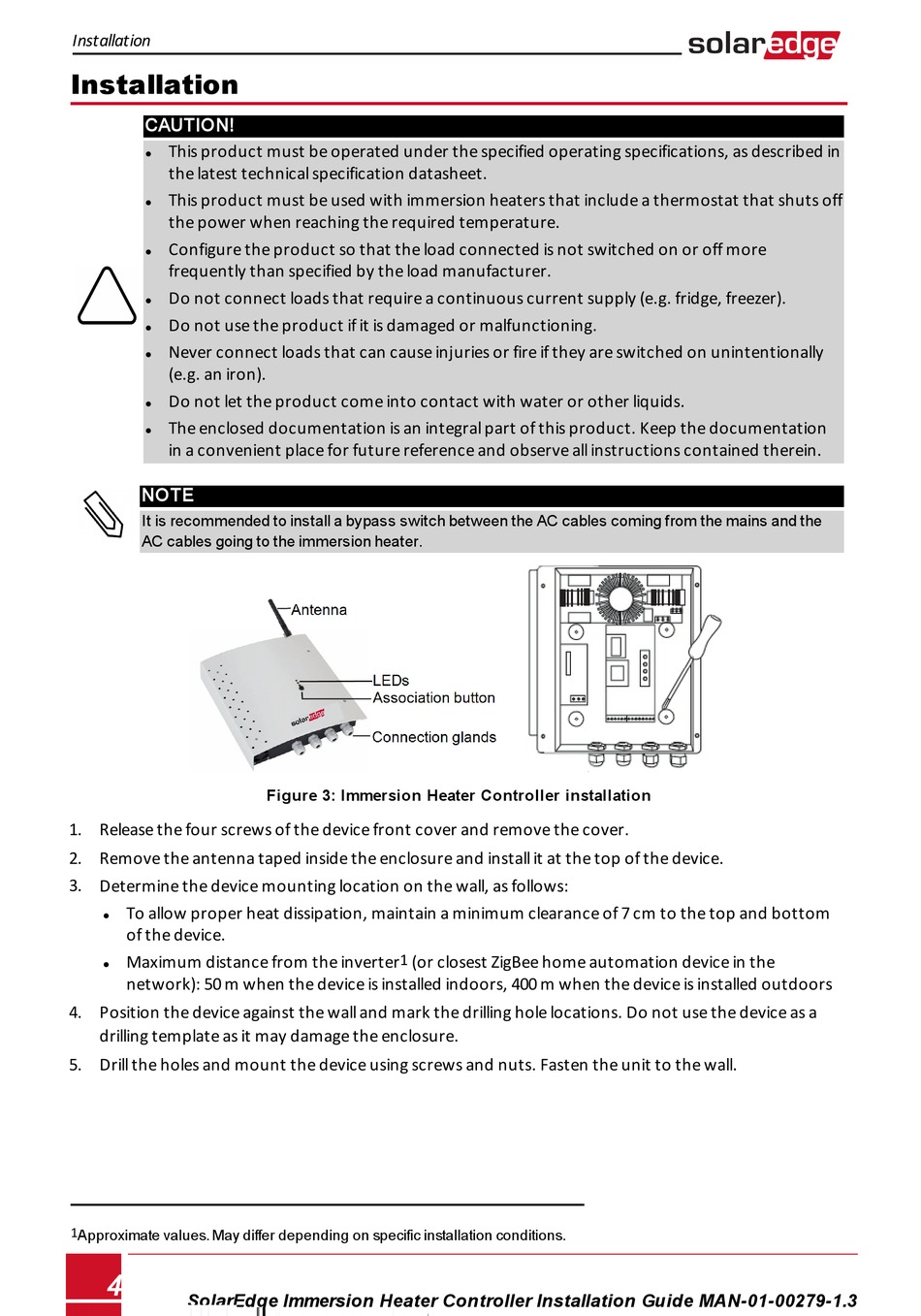

Figure 3: Immersion Heater Controller installation
1
(or closest ZigBee home automation device in the
