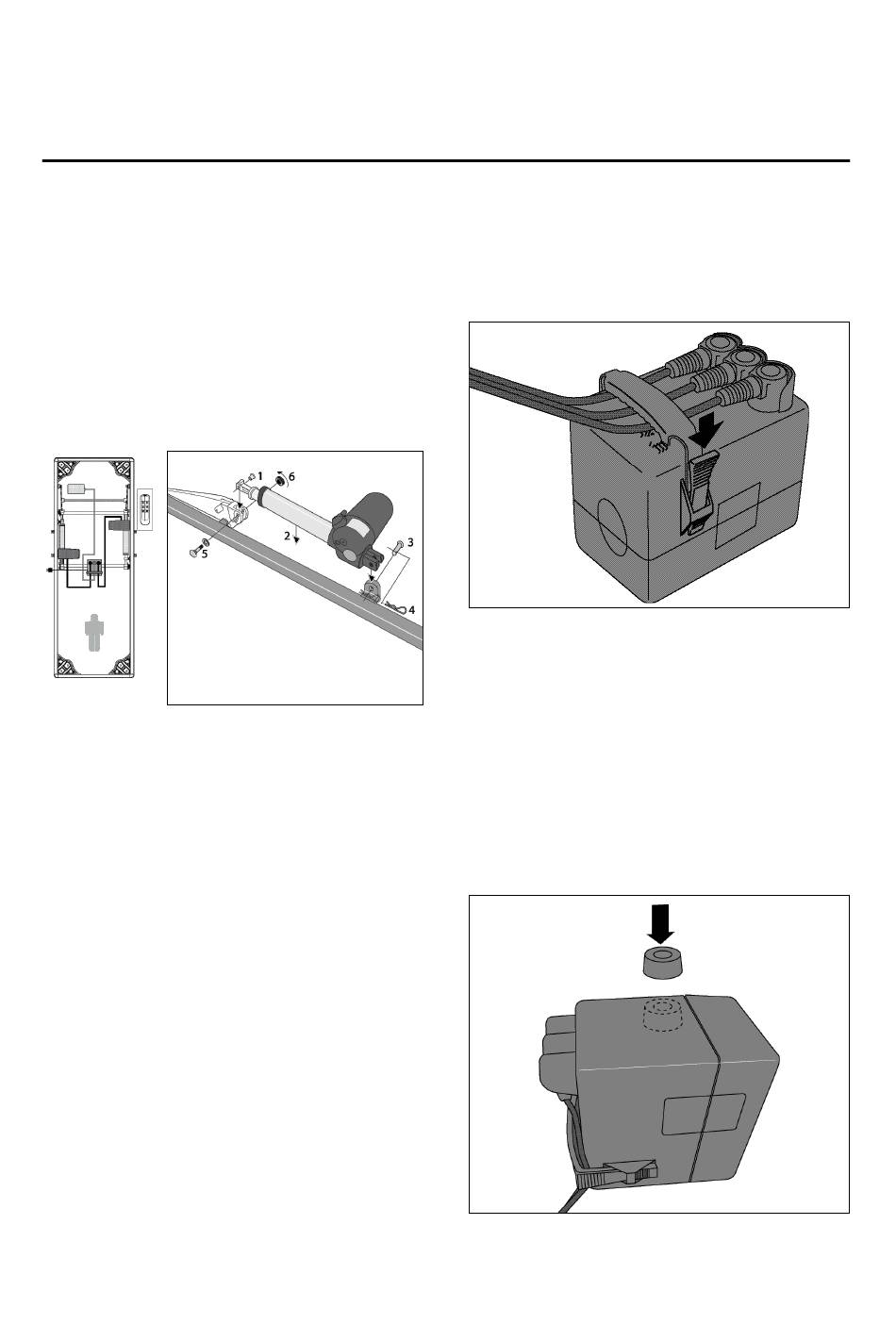

3.4 Installing the electric motors

1. Attach the back motor (151747)
to the underside of the base frame
using the screws and locking pin
as indicated in figure 6 or on the
included assembly chart.
(foot)
2. Attach the upper leg motor
(151748) to the underside of the
base frame using the screws and
locking pin as indicated in figure 6
or on the included assembly chart.
3. Insert the plug of the back motor
into connection point 1 on the
control box.
4. Place the included battery in the
infrared handset and insert the
plug of the receiver in connection
point 2 on the control box.
5. Insert the plug of the upper leg
motor into connection point 3 on
the control box.
6. Secure the cables by fastening the
fig. 6
cable clamp on the control box.
(see fig. 7).
With legs of 14 cm:
7. Place the cap at the underside of
the control box (see fig. 8).
*If applicable
fig. 7
fig. 8
GB 7
