Fireplace Installation

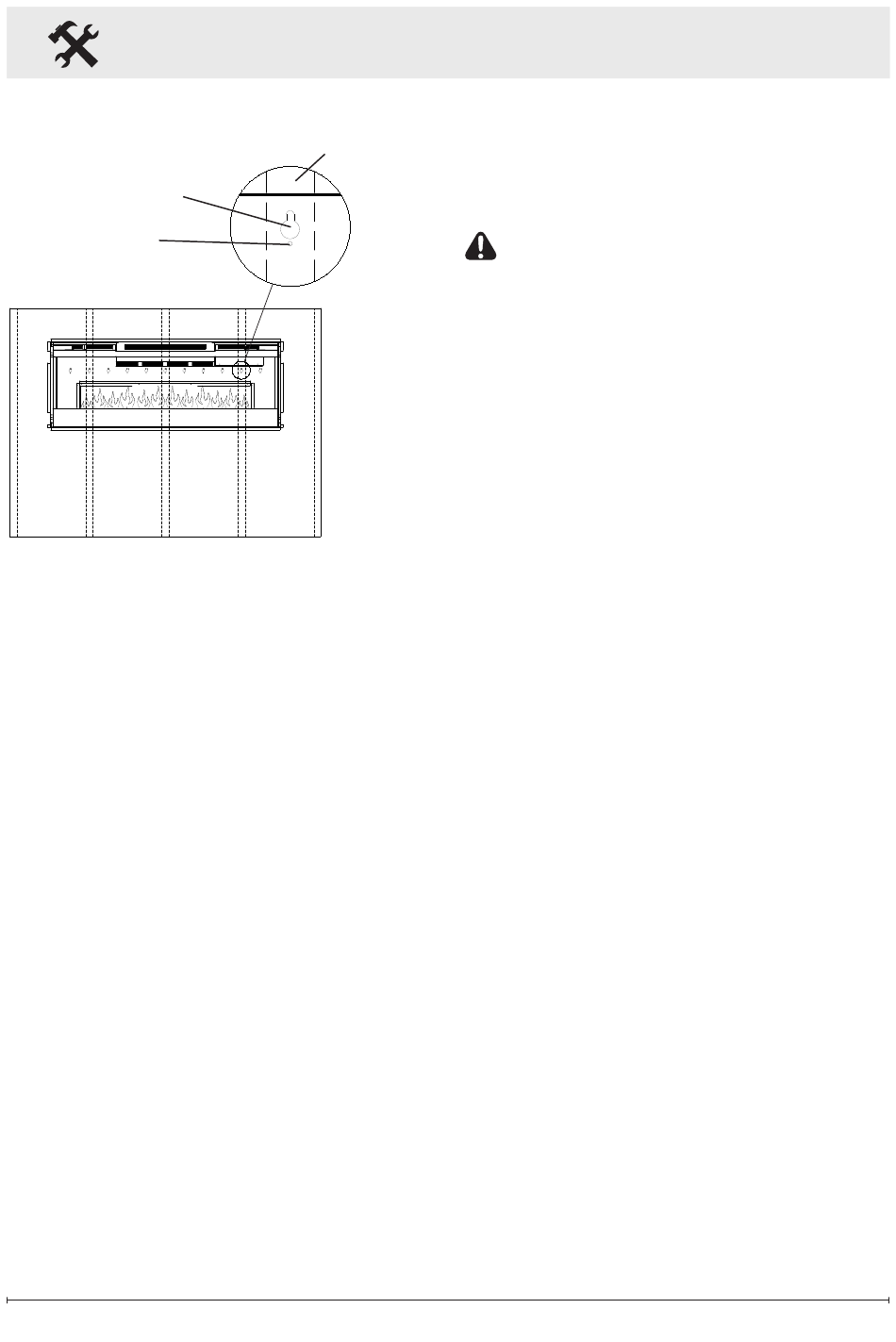

Figure 3
Key-hole
Permanent
mounting hole
• Lay fireplace on its back.
• remove two (2) Phillips
screws from each of the two
(2) glass brackets (Figure 2).
• remove glass brackets.
• With one hand keeping
pressure on the partially
reflective glass, tilt the
fireplace upright and slightly
forward to allow the partially
reflective glass to fall out of
the inside framing.
• remove partially reflective
glass from fireplace.
4. Position the fireplace on a wall
at the position where it will be
mounted (Figure 3). use a
bubble level (one is supplied)
to ensure that fireplace is level
on the wall.
5.
Wall stud
6.
7.
8.
9.
10.
11.
mark the location of four (4)
screw locations on the wall
(through key-holes).
CAUTION: If installing unit on
a wall that is constructed of
drywall ensure that appropriate
wall anchors are used and at
least one is located into a stud.
remove fireplace from wall
and store in a safe place
away from traffic.
screw all four (4) supplied #8,
3.8 cm square head mounting
screws and washers into
the wall and/or wall anchors
leaving 6.5 mm of thread.
Align chosen key-holes with
screws and hang fireplace
on the wall. screw heads
and washers will fit through
key-holes and fireplace will
slide down into place (screws
will slide into narrow part of
key-holes).
tighten all four (4) mounting
screws down on fireplace
chassis.
screw the two (2) supplied
#8 square head screws
through two of the permanent
mounting holes which align
with a wall stud.
Carefully replace and install
