Fireplace Installation

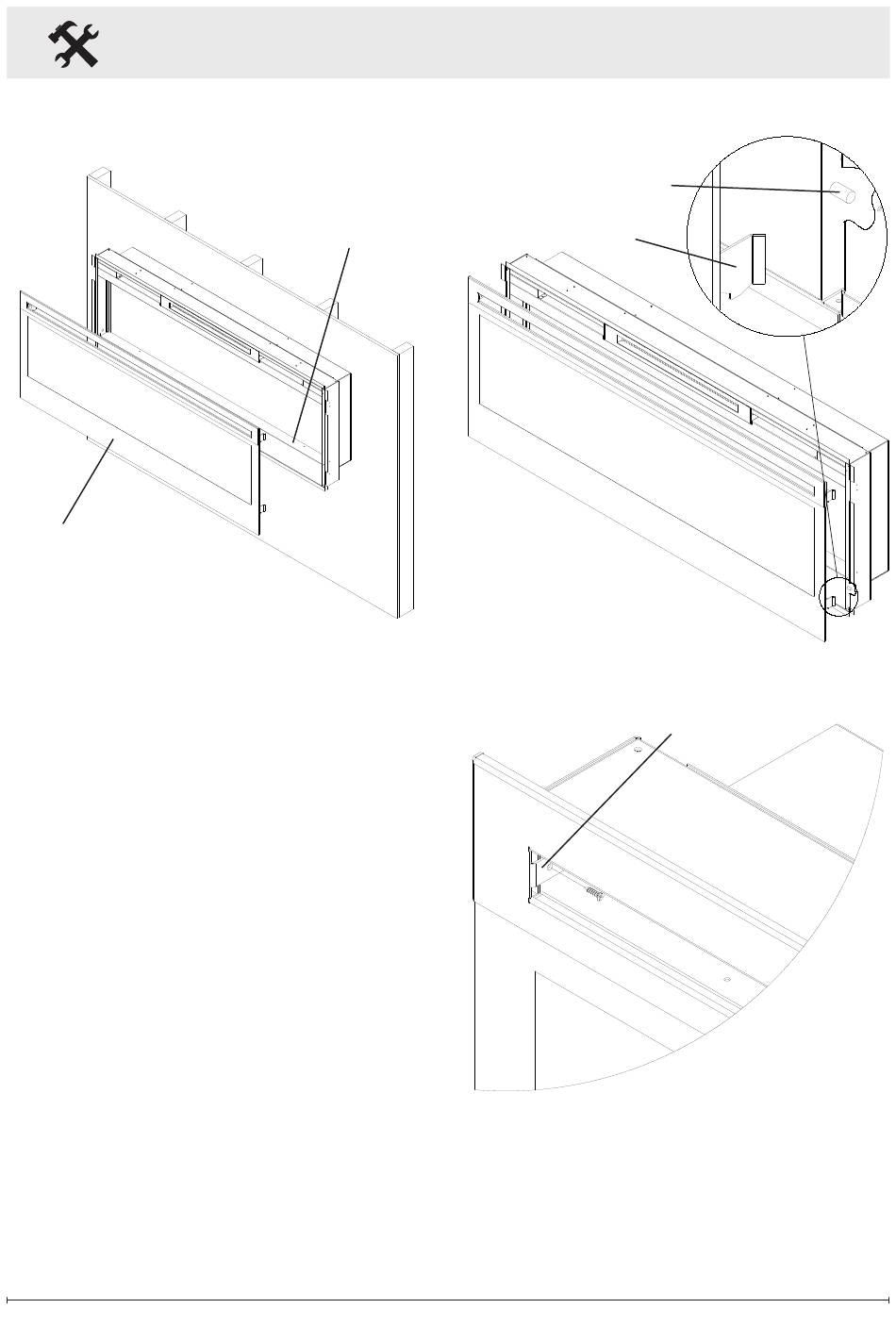

Figure 9
Front glass
assembly
glass hooks (4) hang on the
front glass mounts on the
fireplace (4) (Figure 10).
3. use the supplied two (2)
Phillips sheet metal screws
to fasten the glass assembly
tabs to the fireplace (Figure
11).
4. Ensure the fireplace's
3-Position switch is switched
to the off position ("o").
5. If unit is not hard-wired, plug
fireplace into a 13 Amp, 230
Volt outlet (refer to notE 1).
Figure 10
Front tray
Figure 11
mounts (4)
Hooks (4)
Tab
