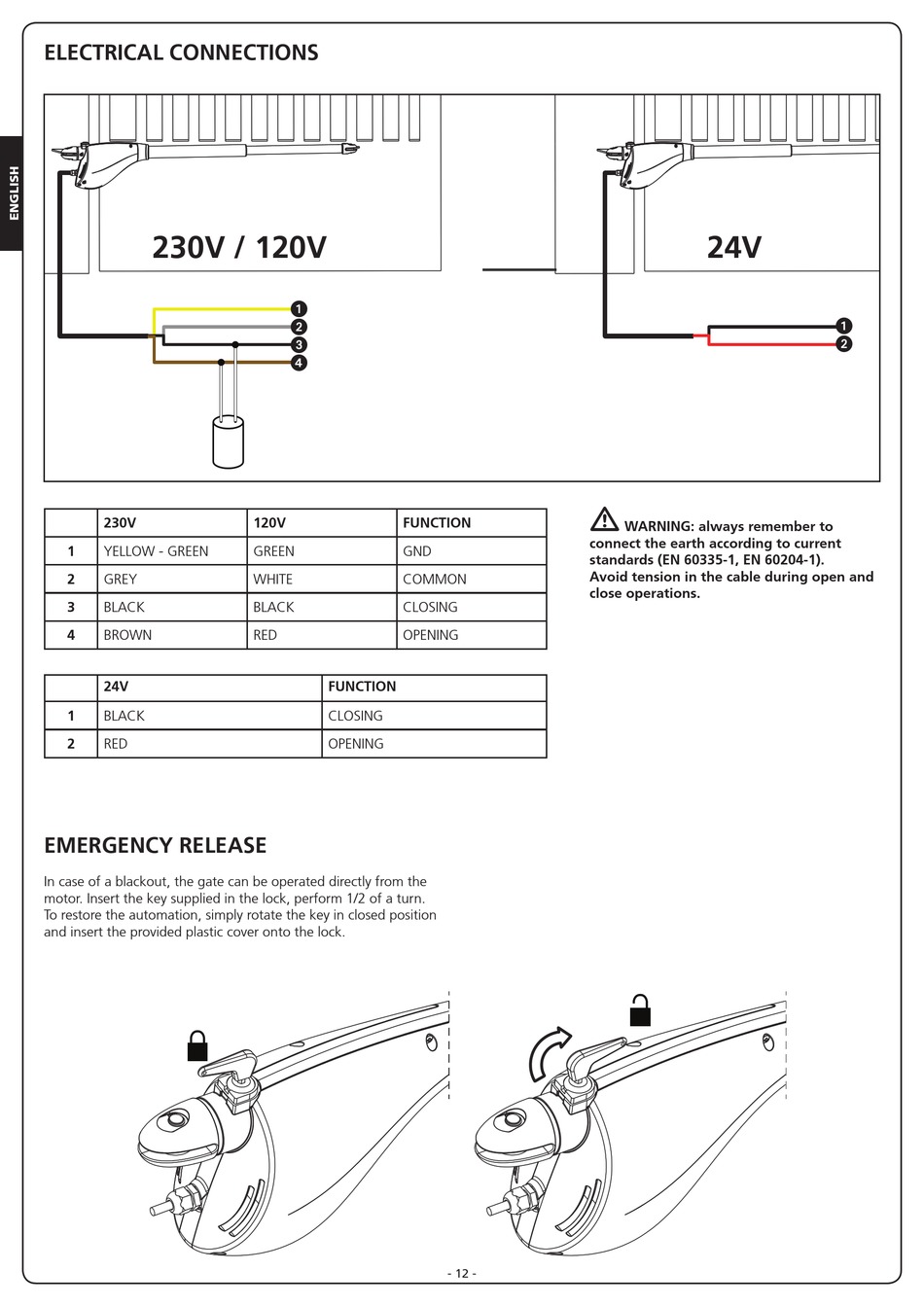

ELECTRICAL CONNECTIONS

230V / 120V
230V
1 YELLOW - GREEN
2 GREY
3 BLACK
4 BROWN
24V
1
BLACK
2
RED

EMERGENCY RELEASE

In case of a blackout, the gate can be operated directly from the
motor. Insert the key supplied in the lock, perform 1/2 of a turn.
To restore the automation, simply rotate the key in closed position
and insert the provided plastic cover onto the lock.
120V FUNCTION
GREEN GND
WHITE COMMON
BLACK CLOSING
RED OPENING
FUNCTION
CLOSING
OPENING
m
connect the earth according to current
standards (EN 60335-1, EN 60204-1).
Avoid tension in the cable during open and
close operations.
- 12 -
24V
WARNING: always remember to
