Assembly
Important! The fitting must be installed, flushed and
tested after the valid norms!
1. Flush through the supply pipes.
2. Place the mixer including the sealing washer in position
on the sink.
3. Slip the plastic washer, the slide washer, the metall
washer and collar over the hoses and threaded base
and tighten the collar nut by hand. If there is not enough
space, please use only the slide washer and the metal
washer without the plastic washer.
4. Tighten screws.
5. Connect the supply pipes to the isolation valves; cold
right - hot left.
The hot and cold supplies must be of equal pressures..

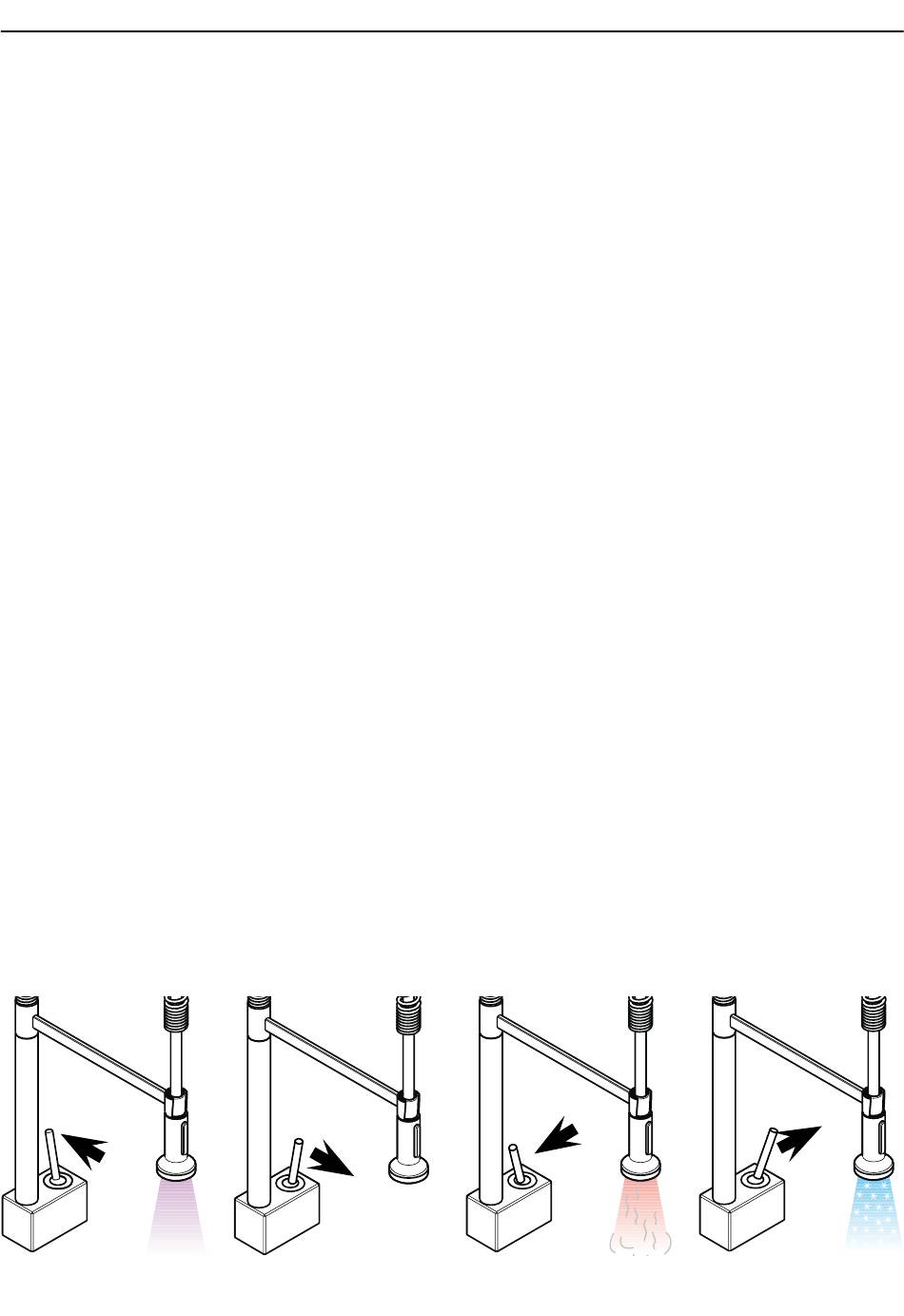

Operation

The handspray is activated by pressing the button. After
releasing the button, the mixer returns automatically to the
standard function.
If the waterflow drops, clean the filter located between
hose and handspray.
Technical Data
Operating pressure:
Recommended operating pressure:
Test pressure:
(1 MPa = 10 bars = 147 PSI)
Hot water temperature:
Recommended hot water temp.:
Rate of flow:
Test certificate:
Anti-pollution function
open
English
max. 1 MPa
0.1 - 0.5 MPa
1,6 MPa
max. 80° C
65° C
ca. 1 1 l/min 0.3 MPa
WRAS
close
Hansgrohe single lever mixers can be used together with
hydraulically and thermically controlled continuous flow
heaters if the flow pressure is at least 0.15 MPa.
Maintenance non return valve
The non return valves must be checked regularly according
to DIN EN 1717 in accordance with national or regional
regulations (at least once a year).
Spare parts (see page 3)
1 flange for handle
2 handle
3 nut
4 cartridge cpl.
5 aerator cpl.
6 fixing set
7 connection hose 900 mm
8 hose 720 mm
9 handspray
10 non return valve DW15
11 non return valve
Special accessories
12 extension base
(order as an extra)
hot
97466000
10092000
97157000
96339000
13913000
95049000
94082000
97475000
96920000
94074000
95340000
97474000
