Parts Overview Multisensor; Scope Of Delivery - National Geographic Colour Weather Center 5-in-1 Bedienungsanleitung

7 Parts overview Multisensor

D
12
9
8
7

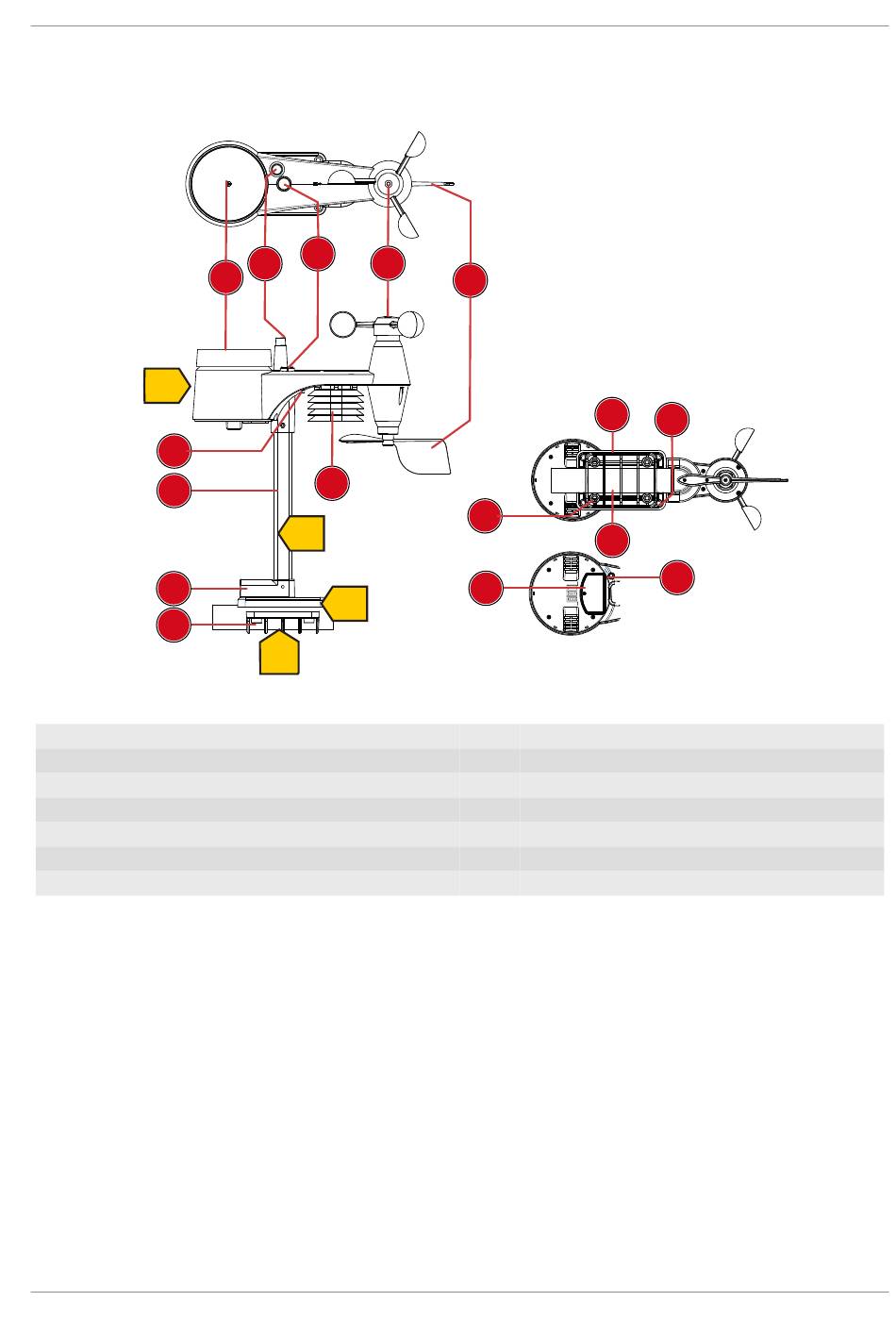

Illustration 2: All parts of the multisensor
1 Rain gauge
3 Circular level
5 wind vane (wind direction)
7 Pipe clamp
9 Mounting bar
11 RESET button
13 Mounting screws with nuts

8 Scope of delivery

Base station (A), power adapter (B), stand (C), multifunctional outdoor sensor (D), mounting bar (E),
mounting shoe (F), pipe clamp (G), screws, instruction manual
Also required (not included):3 pcs. of 1.5V AA type batteries (outdoor sensor), 1 pc. of 3V CR2032
battery (base station)
3
4
2
1
6
E
F
G
5
8
13
7
10
2 Antenna
4 Wind cups (wind speed)
6 Thermo-Hygrometer
8 Mounting shoe
10 Battery compartment (cover)
12 LED function indicator
