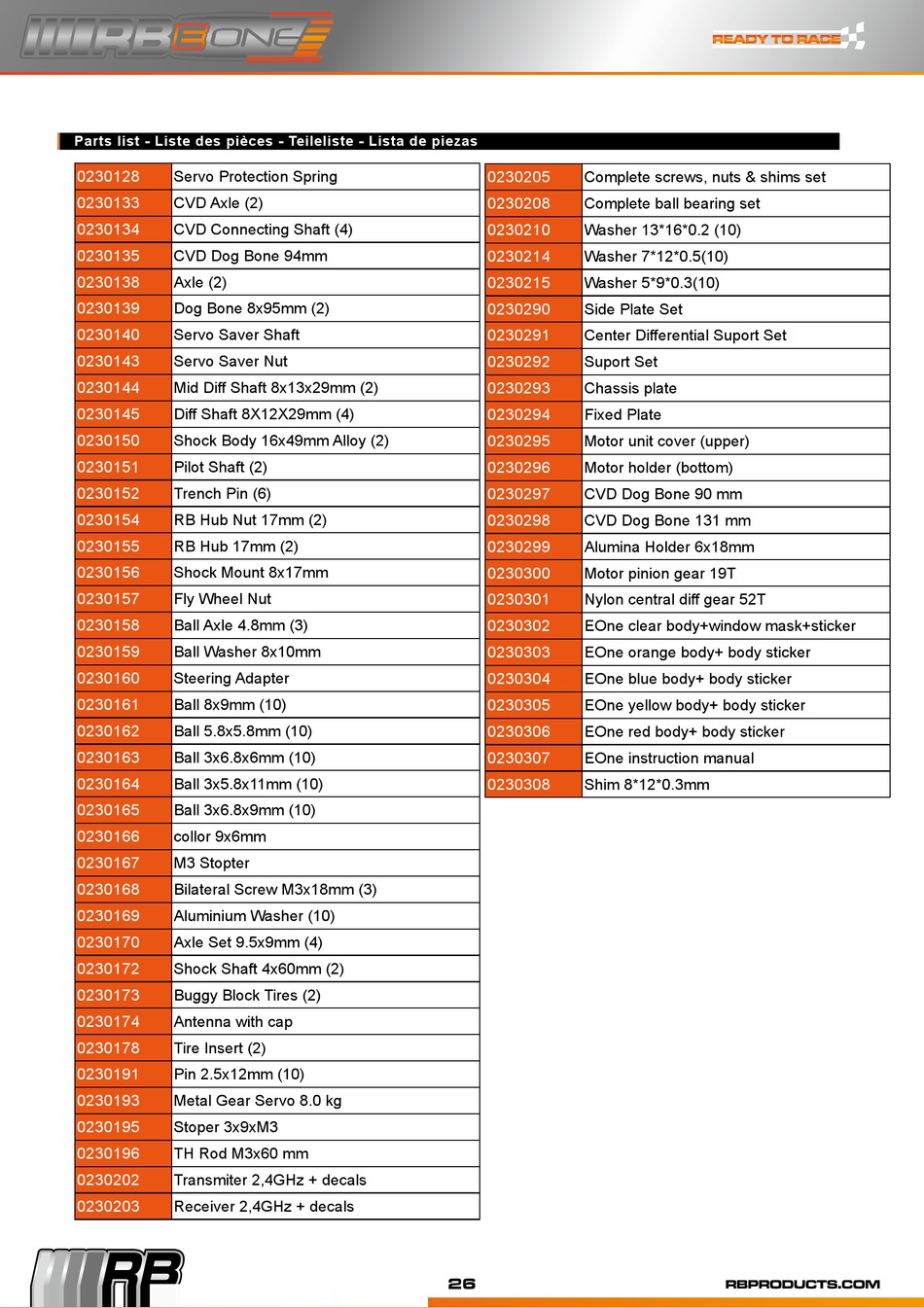

Parts list - Liste des pièces - Teileliste - Lista de piezas
0230128
Servo Protection Spring
0230133
CVD Axle (2)
0230134
CVD Connecting Shaft (4)
0230135
CVD Dog Bone 94mm
0230138
Axle (2)
0230139
Dog Bone 8x95mm (2)
0230140
Servo Saver Shaft
0230143
Servo Saver Nut
0230144
Mid Diff Shaft 8x13x29mm (2)
0230145
Diff Shaft 8X12X29mm (4)
0230150
Shock Body 16x49mm Alloy (2)
0230151
Pilot Shaft (2)
0230152
Trench Pin (6)
0230154
RB Hub Nut 17mm (2)
0230155
RB Hub 17mm (2)
0230156
Shock Mount 8x17mm
0230157
Fly Wheel Nut
0230158
Ball Axle 4.8mm (3)
0230159
Ball Washer 8x10mm
0230160
Steering Adapter
0230161
Ball 8x9mm (10)
0230162
Ball 5.8x5.8mm (10)
0230163
Ball 3x6.8x6mm (10)
0230164
Ball 3x5.8x11mm (10)
0230165
Ball 3x6.8x9mm (10)
0230166
collor 9x6mm
0230167
M3 Stopter
0230168
Bilateral Screw M3x18mm (3)
0230169
Aluminium Washer (10)
0230170
Axle Set 9.5x9mm (4)
0230172
Shock Shaft 4x60mm (2)
0230173
Buggy Block Tires (2)
0230174
Antenna with cap
0230178
Tire Insert (2)
0230191
Pin 2.5x12mm (10)
0230193
Metal Gear Servo 8.0 kg
0230195
Stoper 3x9xM3
0230196
TH Rod M3x60 mm
0230202
Transmiter 2,4GHz + decals
0230203
Receiver 2,4GHz + decals
0230205
Complete screws, nuts & shims set
0230208
Complete ball bearing set
0230210
Washer 13*16*0.2 (10)
0230214
Washer 7*12*0.5(10)
0230215
Washer 5*9*0.3(10)
0230290
Side Plate Set
0230291
Center Differential Suport Set
0230292
Suport Set
0230293
Chassis plate
0230294
Fixed Plate
0230295
Motor unit cover (upper)
0230296
Motor holder (bottom)
0230297
CVD Dog Bone 90 mm
0230298
CVD Dog Bone 131 mm
0230299
Alumina Holder 6x18mm
0230300
Motor pinion gear 19T
0230301
Nylon central diff gear 52T
0230302
EOne clear body+window mask+sticker
0230303
EOne orange body+ body sticker
0230304
EOne blue body+ body sticker
0230305
EOne yellow body+ body sticker
0230306
EOne red body+ body sticker
0230307
EOne instruction manual
0230308
Shim 8*12*0.3mm
26
