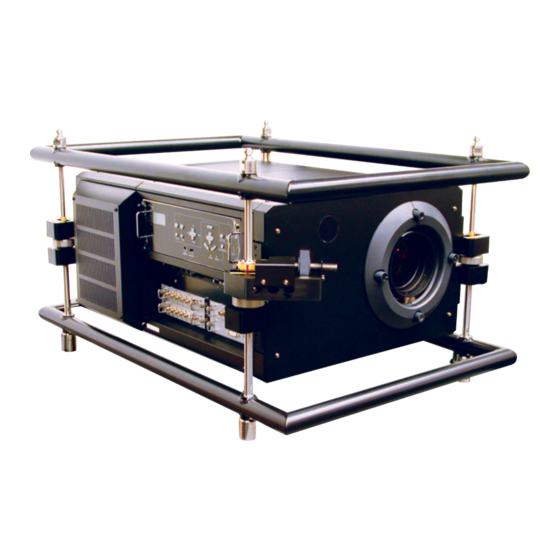

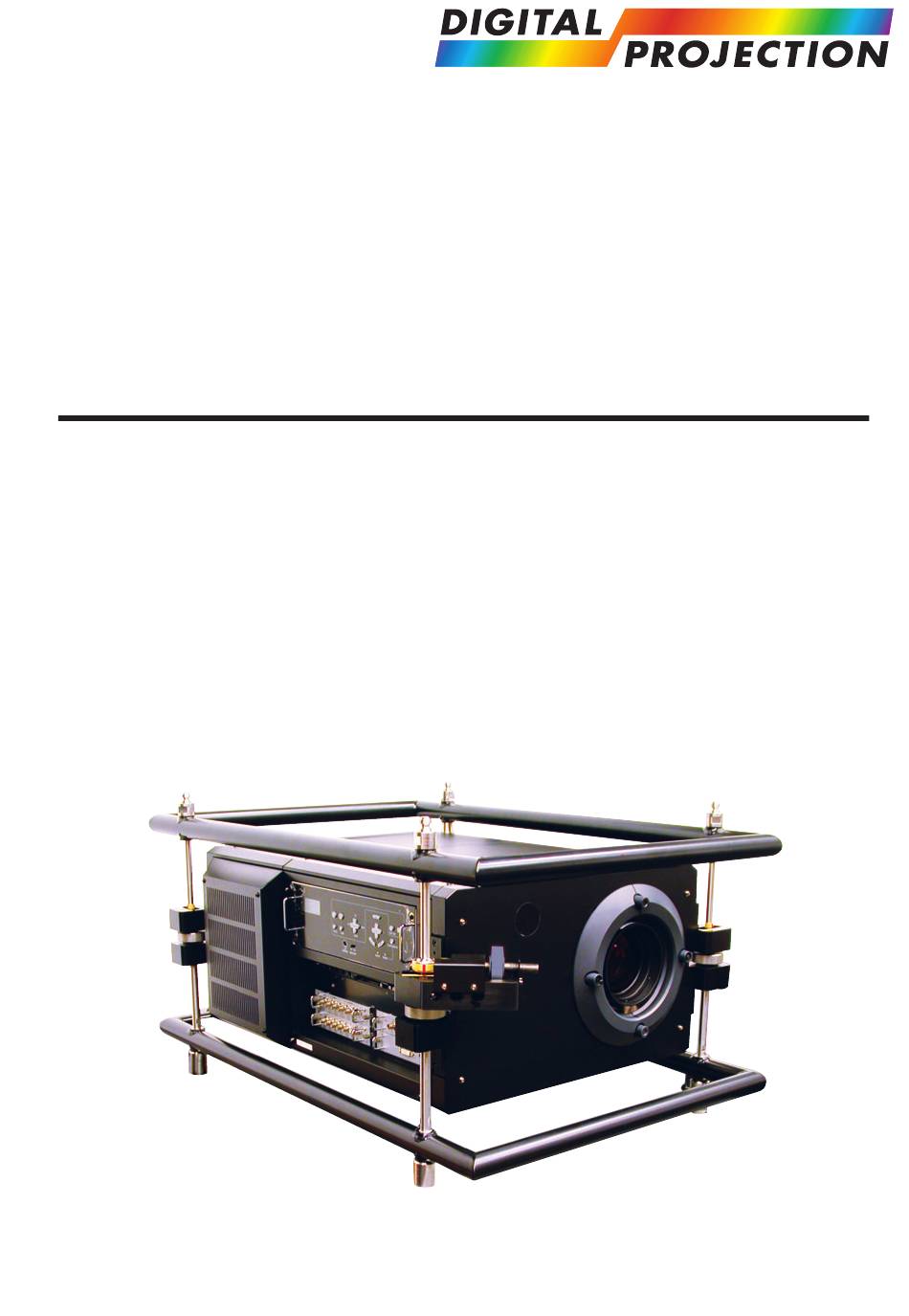

- Seite 1 HL12000Dsx+ / 12000HD HL8000Dsx+ / 10000HD Super High Brightness Digital Video Projector Important Information 104-019C...
-
Seite 2: Declaration Of Conformity
Declaration of Conformity Directives covered by this Declaration 89/336/EEC Electromagnetic Compatibility Directive, amended by 92/31/EEC & 93/68/EEC. 73/23/EEC Low Voltage Equipment Directive, amended by 93/68/EEC. Products covered by this Directive Large Screen Projector type HIGHlite 12000Dsx HIGHlite 8000Dsx Basis on which Conformity is being declared The products identified above comply with the protection requirements of the above EU directives, and the manufacturer has applied the following standards:- EN55022:1998 - Limits and Methods of Measurements of Radio Disturbance Characteristics of... - Seite 3 Declaration of Conformity Directives covered by this Declaration 89/336/EEC Electromagnetic Compatibility Directive, amended by 92/31/EEC & 93/68/EEC. 73/23/EEC Low Voltage Equipment Directive, amended by 93/68/EEC. Products covered by this Directive Large Screen Projector type HL 12000HD HL 10000HD Basis on which Conformity is being declared The products identified above comply with the protection requirements of the above EU directives, and the manufacturer has applied the following standards:- EN55022:1998 - Limits and Methods of Measurements of Radio Disturbance Characteristics of...
- Seite 4 Important Information CAUTION: To turn off the main power, be sure to remove the Precautions: Please read this manual carefully before us- plug from power outlet. The power outlet socket should be ing your HIGHlite Pro Projector and keep the manual handy installed as near to the equipment as possible, and should be for future reference.
-
Seite 5: Important Safeguards
Important Information Important Safeguards 2. Prevent foreign objects such as paper clips and bits of paper from fall- ing into your projector. Do not attempt to retrieve any objects that might These safety instructions are to ensure the long life of your pro- fall into your projector. -
Seite 6: Recommandations Importantes
Important Information Recommandations importantes essayer de récupérer des objets qui seraient tombés dans le projecteur. Ne pas introduire d’objets métalliques tels qu’un fil ou un tournevis dans Ces instructions de sécurité ont pour but d’assurer une longue le projecteur. Si quelque-chose doit tomber dans le projecteur, le vie à... -
Seite 7: Wichtige Sicherheitshinweise
Important Information Achtung: Um die Netzspannung komplett abzuschalten, Wichtige Sicherheitshinweise stellen Sie sicher, daß der Netzstecker aus der Netzsteckdose Diese Sicherheitshinweise sollen eine lange Lebensdauer Ihres gezogen wurde. Die Netzsteckdose sollte so nahe als möglich Projektors sicherstellen und vor Feuer und elektrischen Schlägen vom Gerät entfernt und leicht zugänglich sein. - Seite 8 Important Information Vorsichtsmaßnahmen zur Vermeidung von Bränden und elektrischen Schlägen WARNUNG: • Schauen Sie nicht in die Linse, wenn der Projektor 1. Sorgen Sie für ausreichende Belüftung und stellen Sie außerdem sicher, eingeschaltet ist. Dies könnte schwere Augenverletzungen dass die Lüftungsschlitze frei bleiben, damit sich innerhalb des zur Folge haben.
- Seite 9 1. Introduction 1 What's in the Box? Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your Projector. HIGHlite 12000Dsx+ Projector HIGHlite 12000HD Projector (USA model 103-487, ROW model 103-488) (USA model 104-690, ROW model 104-600[small rails])
-
Seite 10: Troubleshooting
2. Troubleshooting This section helps you resolve problems you may encounter while setting up or using the projector. Power Indicator Indicator Condition Projector Condition Note The main power is off – Blinking light Green blinking 0.5 sec ON, The projector is getting ready to turn on. Wait for a moment. - Seite 11 2. Troubleshooting (The numbers in the table refer to pages in the User’s manual) Common Problems & Solutions Problem Check These Items Does not turn on • Check that the power cable is plugged in and that the main power switch on the projector is on. See pages E- 27 and E-30.
-
Seite 12: Specifications
3. Specifications Model Number HIGHlite 12000Dsx+ / HIGHlite 8000Dsx+ / HIGHlite 12000HD / HIGHlite 10000HD Panel 0.95” 3 (HL12000Dsx+ / HL8000Dsx+) 1.25” 3 (HL12000HD / HL10000HD) Output Resolution HL12000Dsx+ / HL8000Dsx+ 1400 1050 native resolution Compatible with input resolution up to 1600 1200 with DigiScale HL12000HD / HL10000HD 2048 x 1080 native resolution Lamp... - Seite 13 3. Specifications MM-RGB R,G,B,H,V R,G,B : 75chms 0.7Vp-p positive polarity (Built-in) : 75ohms 1.0Vp-p positive polarity (with Sync) Cr,Cb : 75ohms +/-0.35Vp-p positive polarity (Component accepts HDTV and >31kHz interlaced and progressive inc 1080i/60, 1080i50, 24sF, 25p, 24p 23.98p/sF, 720p/60 but not 60p, RGsB, RGBS, RGBHV accepts HD progressive and progressive computer) H/V Sync : 1k ohms / 75ohms (Selectable)
- Seite 14 Environment Operational Temperature: 50° - 95°F (10° - 35°C) Humidity: 20 – 80% non-condensing Storage Temperature: 14° - 122°F (-10° - 50°C) Humidity: 20 – 80% non-condensing Regulations UL60950 FCC Class A Canada CSA60950 ICES-003 Class A Europe EN60950 EN55022 Class A EN55024 EN61000-3-2 EN61000-3-3...
-
Seite 15: Technische Daten
Technische Daten Modellnummern HL 12000HD / HL 10000HD Bedienfeld* DMD™ 0.95” x 3 (HL 12000Dsx+ / HL 8000Dsx+) DMD™ 1,25” x 3 (HL 12000HD / HL 10000HD) Ausgangsauflösung 1400 x 1050 natürliche Auflösung; bis zu 1600 x 1200 mit Advanced AccuBlend™ Technologie (HL 12000Dsx+ / HL 8000Dsx+) 2048 x 1080 natürliche Auflösung (HL 12000HD / HL 10000HD) - Seite 16 MM-VIDEO Composite-Video 75 Ohm 1,0 Vp-p (mit Synch.) (integriert) S-Video 75 Ohm 1,0 Vp-p (mit Synch.) 75 Ohm 286-300 mVp-p Komponentenvideo 75 Ohm 1,0 Vp-p (mit Synch.) Cr, Cb 75 Ohm +/- 0,35 Vp-p (Nur Standard Definition (15kHz)) MM-RGB R, G, B, H, V R, G, B 75 Ohm 0,7 Vp-p positive Polarität (integriert)
- Seite 17 Leistungsanforderung 200 - 240V Wechselstrom, 50/60Hz Leistungsaufnahme HL 12000Dsx+ / HL 8000Dsx+: 2,8 KW HL 12000HD / HL 10000HD: 3,0 KW Eingangsstrom HL 12000Dsx+ / HL 8000Dsx+: 14 A HL 12000HD / HL 10000HD: 15 A Abmessungen HL 12000Dsx+ / HL 12000HD: 690mm (W) x 1018mm (T) x 547mm (H) 27,2”...
- Seite 20 Printed in UK...
