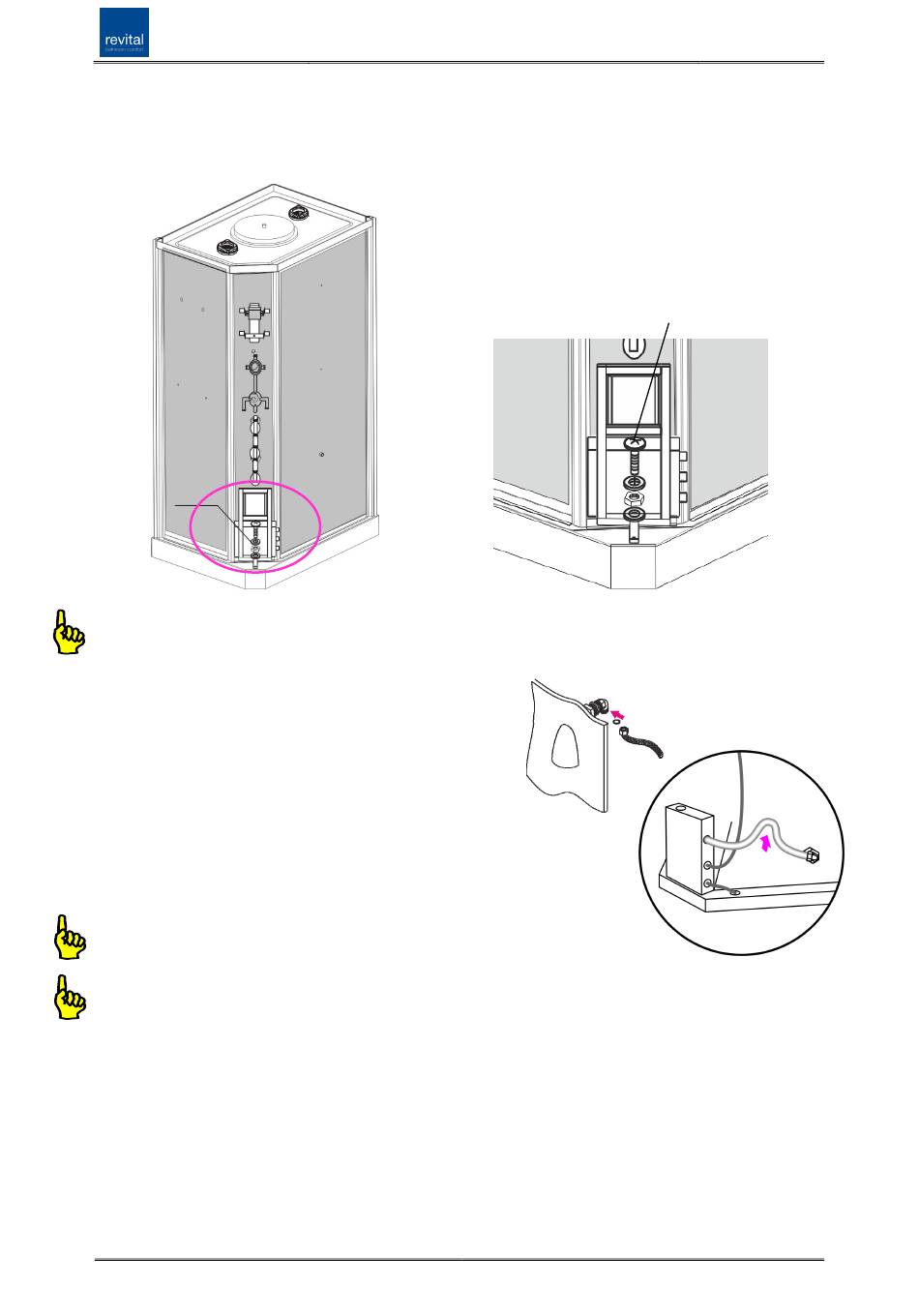

7. Install the computer box and the steam generator.
Carefully screw the frame with the computer box and the steam generator onto the
–
back of the glass rear panel, using an M4 x 3.5 mm bolt and nut (see Drawings 7-1 and 7-2).
M4
x 35 mm
Drawing 7-1
On both sides, place a washer between the bolt and the nut.
8. Connect the steam hose (see Drawing 8-1).
– Connect the drain pipe to the "
– Connect the cold-water hose to the "
– Remove the cap nut from the "
Connect the drain pipe to the steam generator.
–
Connect the steam hose to the "
–
Connect the other end of the steam hose to the steam dispenser.
–
Place a silicone sealing ring in the couplings.
Bend the steam hose up somewhat, immediately after the steam generator, to prevent
hot water from running into the cubicle via the steam dispenser (see Drawing 8-2).
2-13 Installation
".
DRAIN
".
WATER INLET
".
STEAM INLET
".
STEAM OUTLET
R-SR-1309 & R-SR-1310
M4 x 35 mm
Drawing 7-2
Drawing 8-1
Drawing 8-2
