3. Installation
Newer YAESU's (FT-920, FT-847, FT-1000MP) use a 9 pin SUB-D connector and V24 levels
for control, intended for connection to a COM port of a PC. Also these radios can be controlled
by the PTC-IIIusb. Solder a 9 pin connector to the attached cable as shown in the table 16.
Portable transceivers like the FT-100, FT-817 or FT-897 use a 8 pin Mini-DIN connection:
Do not forget to set the exact YAESU transceiver-type using the command YType. Refer to
chapter TRX in the main manual.
3.7
Assembled cables
Many modern transceivers from KENWOOD, ICOM and YAESU are equipped with a so-
called Data-Connector, which usually is a 6 pin Mini-DIN on the rear side of the transceiver.
For this connector we can supply 2 ready-assembled cables, one for 9K6 and the other for 1K2
Packet-Radio operation. Refer to the list of accessories in chapter 5 on page 49.
3.8
GPS
The PTC-IIIusb uses a 3-pole screw terminator to connect to a GPS receiver. This input is
compatible with 5V-TTL and RS232/V24 signal levels. This pins are assigned as follows:
46
Signal
PTC
TxD
PIN 3
yellow
RxD
PIN 8
red
GND
PIN 13 orange
This cable is available completely
assembled. Refer to chapter
page 49.
Table 18: YAESU V24
Signal
PTC
Color
TxD
PIN 1
violet
RxD
PIN 9
pink
GND
PIN 13 orange
This cable is available completely
assembled. Refer to chapter
page 49.
Table 19: YAESU 817

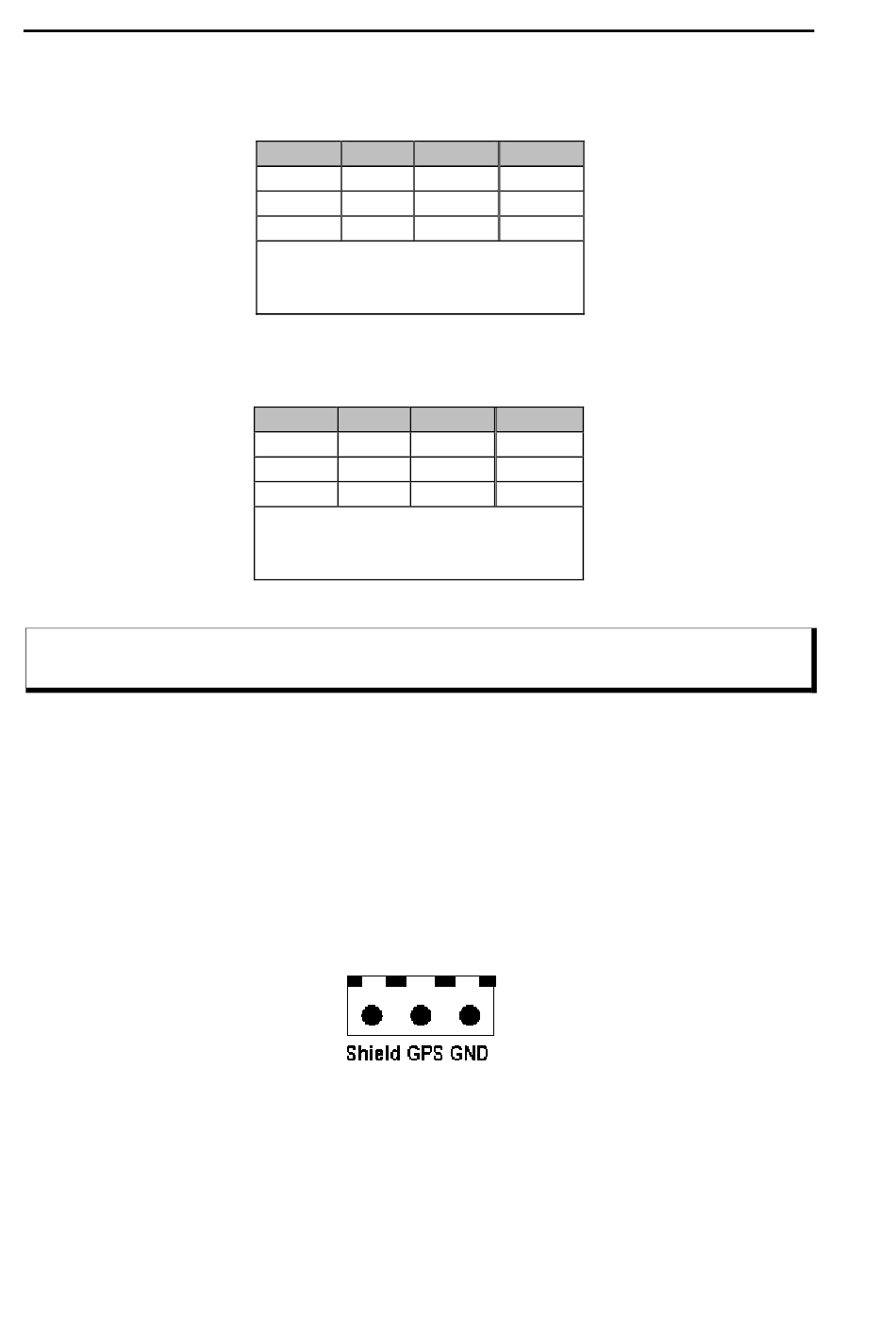

Figure 6: GPS connector
Color
YAESU
PIN 3
PIN 2
PIN 5
5
on
YAESU
PIN 4
PIN 5
PIN 3
5
on
