If you do not find a matching cable there, then use the attached 8 pin DIN cable and complete it
to connect the PTC to the transceiver:
The socket is wired as follows (seen from the rear of the PTC).
7
8
6
1
3
4
5
2

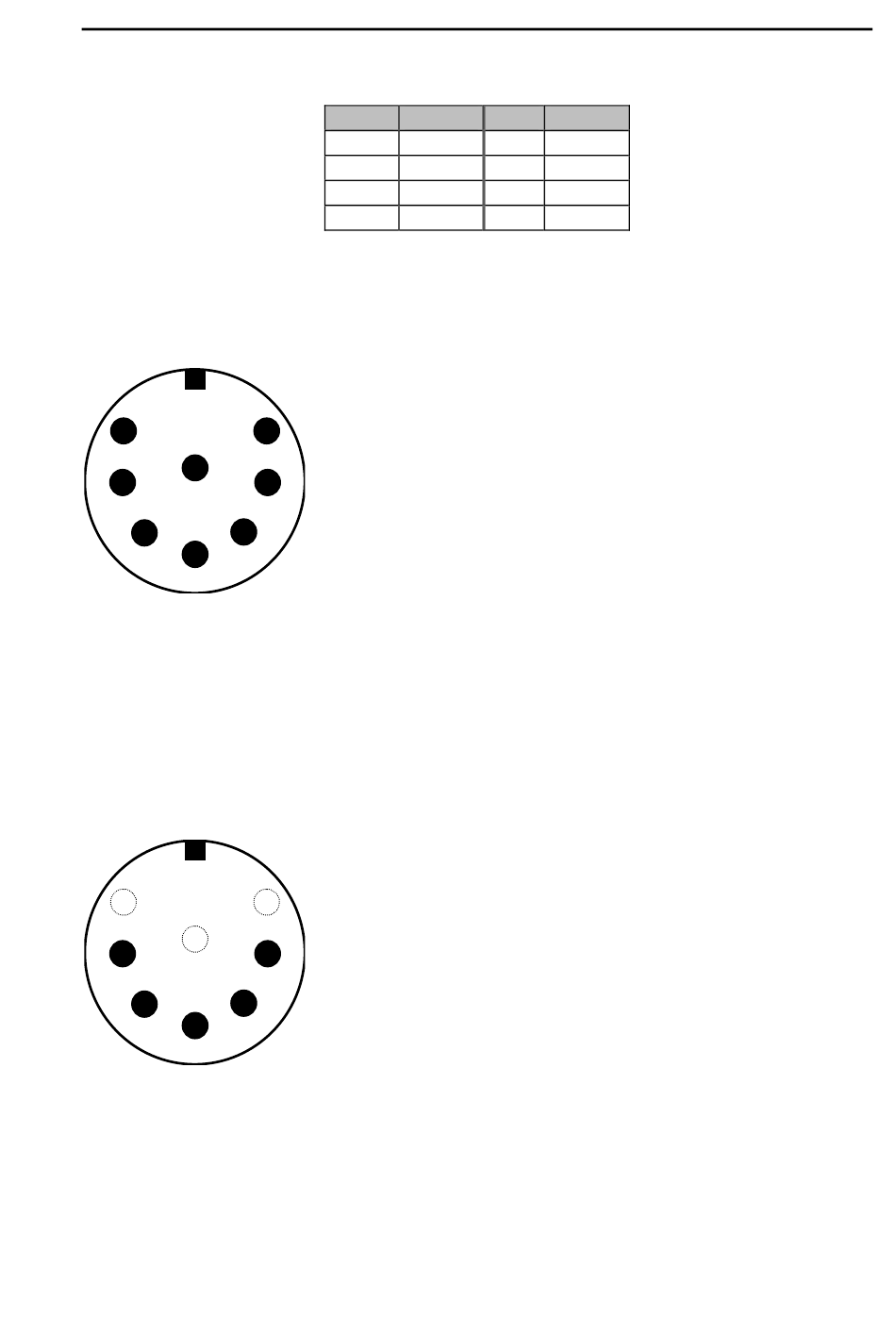

Figure 2: Connection to the transceiver.
NOTE: There are 8 pin plugs with different pin numbering for pin 7 and pin 8. The PTC needs
an 8 pin plug with U-shaped contact footprint. Plugs with circular footprint don't fit or can
only be attached to the PTC with damaging force! Do not blindly rely on the printed numbers
on the plug. The connections as shown in the manual should be used as reference.
The 8 pin DIN socket is designed in a way that a 5 pin DIN plug (180°) may be plugged into it
too. It is possible to use a 5 pin DIN plug if an 8 pin is not available, or the extra functions are
not required.
If a 5 pin DIN plug is used, then the connections are as shown:
7
8
6
1
3
4
5
2
Figure 3: Connections to the transceiver (5 pin DIN).
PIN Color
1 Violet
2 White
3 Yellow
4 Green
Table 2: Cable Colors: 8 pin DIN cable
Pin 1: Audio output from the PTC to the transmitter.
Pin 2: Ground.
Pin 3: PTT output. (to transmitter PTT line)
Pin 4: Audio input from the receiver to the PTC.
(loudspeaker or appropriate AUX/ACC socket)
Pin 5: Optional power supply input.
Pin 6: Not used.
Pin 7: Not used.
Pin 8: Not used.
Pin 1: Audio output from the PTC to the transmitter.
Pin 2: Ground.
Pin 3: PTT output (to transmitter PTT line).
Pin 4: Audio input from the receiver to the PTC
(loudspeaker or appropriate AUX socket).
Pin 5: Optional power supply input.
PIN Color
5 Blue
6 Red
7 Black
8 Brown
