2.2 REAR PANEL CONNECTIONS

EA1250 MONO-AMPLIFIER
10 SPEAKER OUTPUT TERMINALS MONO
Output terminal to connect the speakers to the amplifier.
11 POWER INPUT TERMINAL "GND"
Terminal to connect the amplifier to the negative or ground pole of the car battery.
12 REMOTE INPUT TERMINAL "REM"
Terminal to connect the amplifier to the automatic (remote) turn-on / turn-off lead of
the head unit.
13 POWER INPUT TERMINAL "+12 V"
Terminal to connect the amplifier to the positive +12V pole of the car battery.

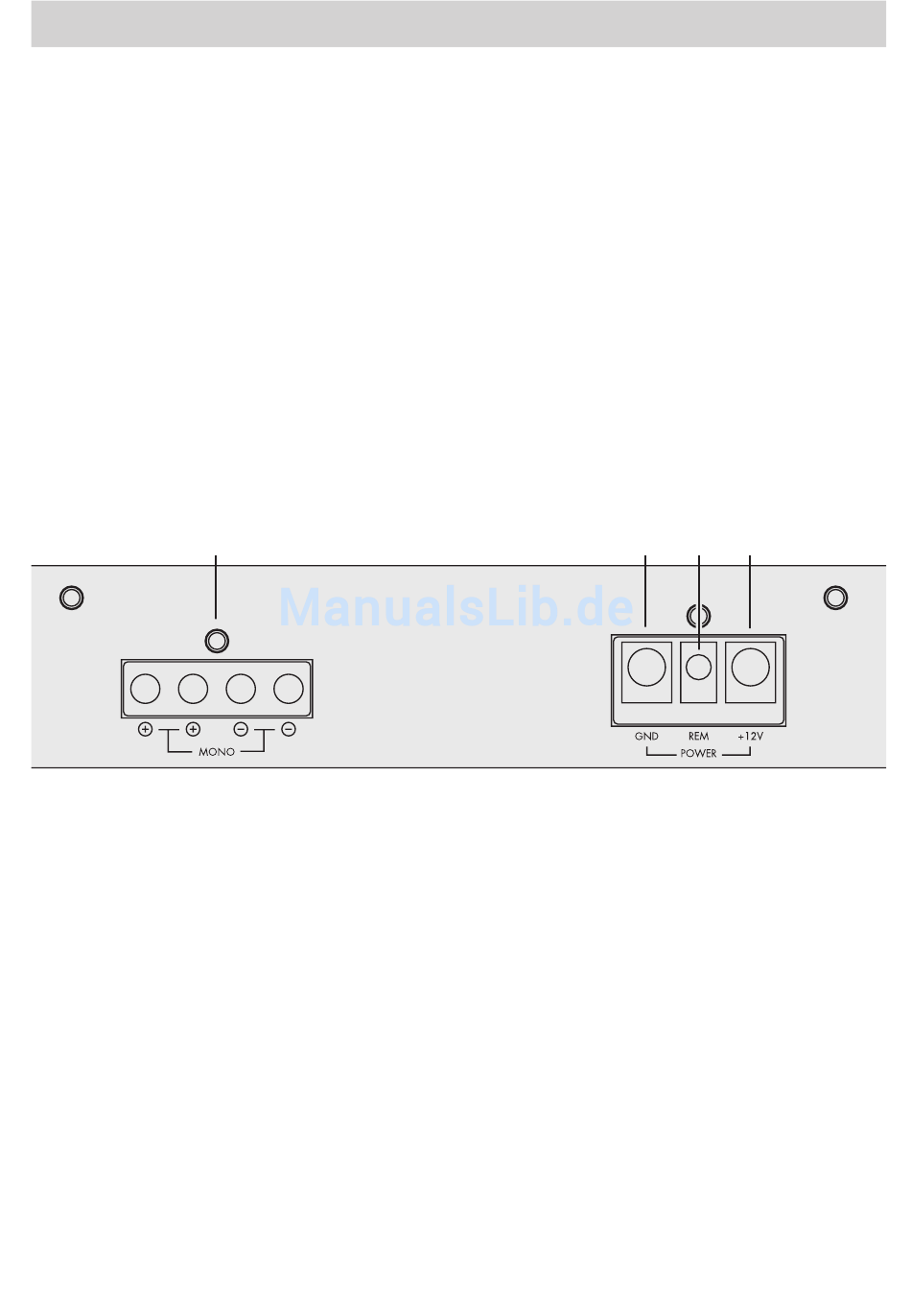

REAR PANEL
EA1250 10
11 12 13
