3. Layout, Connections, LED's & Jumper Settings
3.4 Jumper Settings

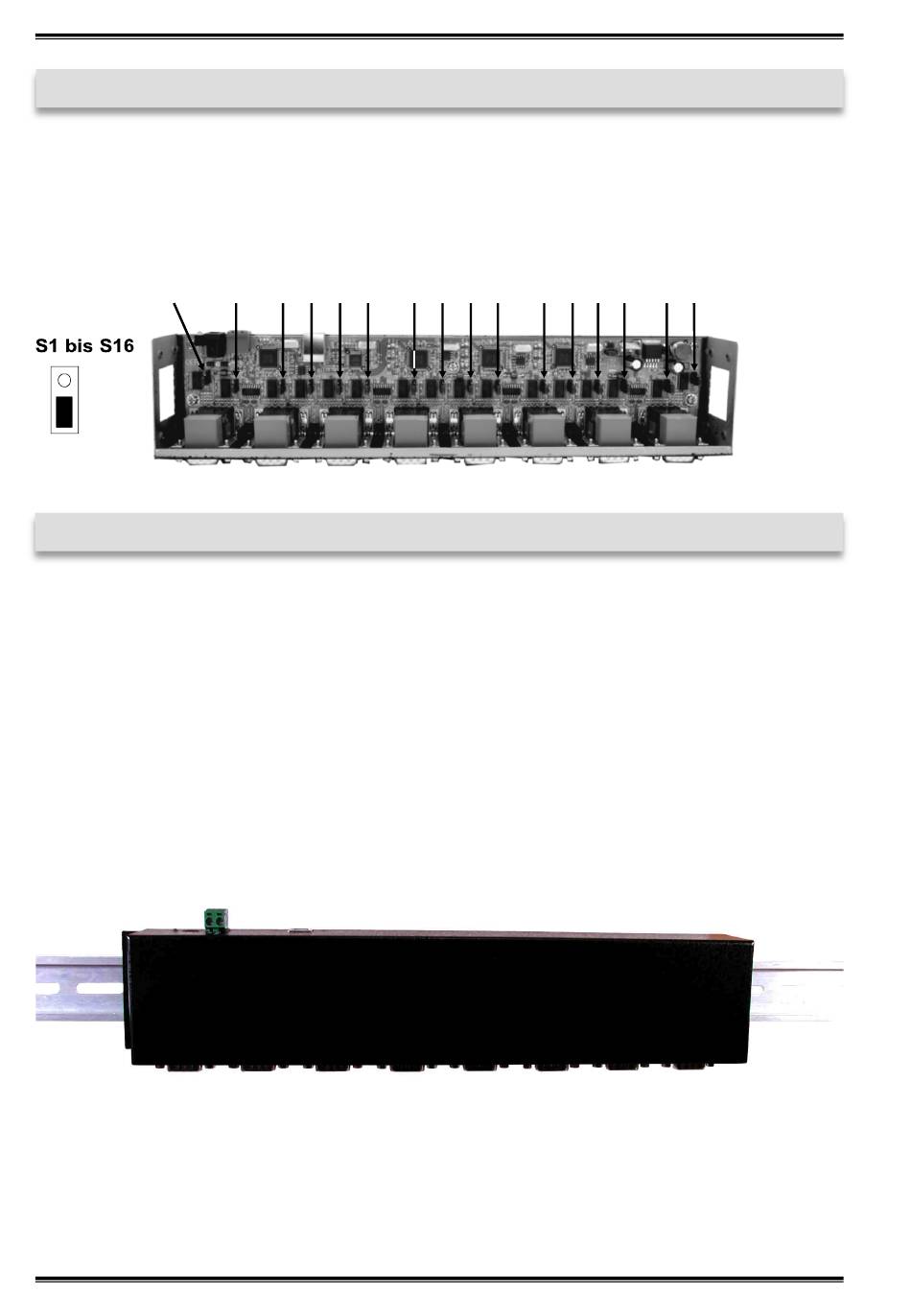

Open the case with the four screws on both sides. There are now 16 jumper (S1-S16)
recognizable. With the jumpers you can set the voltage to pin 9 of the sixteen connect-
ors. For this you need set the jumper from DIS to PWR (see following picture).
S1
PWR
DIS
4. Hardware Installation
Because there are large differences between PC's, we can give you only a general in-
stallation guide. Please refer your computer's reference manual whenever in doubt.
1. If you want to install the EX-1316HMV on a DIN-RAIL, then please go ahead with
the step 5, before proceeding to step 2.
2. Now connect the included USB cable to the USB B-Port of the EX-1316HMV.
3. Connect the included power supply to the DC connector at the EX-1316HMV or
connect the optional power supply into the terminal block at the EX-1316HMV.
4. Now connect the other end from the USB cable (A-Plug) to the A-Port at your PC.
5. Assemble the EX-1316HMV on the DIN-RAIL.
