Exsys EX-1334-HM Bedienungsanleitung

EX- EX EX - - 1334 1334 1334- - - IS- IS IS - - HM HM HM
HARDWARE INSTALLATION :
Because the designs of computers are different, only general installation instructions are
given. Please refer your computer's reference manual whenever in doubt.
1. Connect the USB cable to the USB B Connector of the module.
2. Plug the included power supply into the 5V Connector (only EX-1334IS).
3. Now connect the other end from the USB cable ( A-Plug) to the A-Connector at
your PC.
DRIVER INSTALLATION :
Windows 9.x and ME:
Windows will recognize a new "FT232R USB UART" and open the hardware assistant.
Please choose manual installation and put the driver CD into your CD-Rom drive ( as
sample D: ) . Now enter the Path "D:\USB_to_IO\FTDI\Win2000_2003_XP_VISTA"
into the box for the Path/Source and click at >next/continue<. Now Windows search for
the drivers in the specified directory. Follow the hardware assistant and finish the instal-
lation. If Windows recognizes other new devices repeat the above described steps.
Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that open select >Device Manager<. Under "Ports (COM and LPT)" you should find
one more new „USB Serial Port„ as sample (COM5). If you see this or similar entries
the module is installed correctly.
INSTALL THE PERIPHERAL DEVICE:
The speed from the serial ports can be set to the maximum baud rate of 115.2Kbaud.
With double click select for example >Device manager< > USB Serial Port (COM5)<.
Now you can select the different settings of baud rate, stop/start-bits etc. This setting
you can use also for the other COM ports.
Windows 2000 XP Vista Server 2000 and Server 2003 (32-bit):
Windows will recognize a new "FT232R USB UART" and open the hardware assistant.
Please choose manual installation and put the driver CD into your CD-Rom drive (as
sample D: ) . Now enter the Path "D:\USB_to_IO\FTDI\Win2000_2003_XP_VISTA"
into the box for the Path/Source and click at >next/continue<. Now Windows search for
the drivers in the specified directory. Follow the hardware assistant and finish the instal-
lation. If Windows recognizes other new devices repeat the above described steps.
Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that open select >Device Manager<. Under "Ports (COM and LPT)" you should find
one more new „USB Serial Port„ as sample (COM3). If you see this or similar entries
the module is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 to 256.
5
English English English EX- EX EX - - 1334 1334 1334- - - IS- IS IS - - HM HM HM
DRIVER INSTALLATION :
Windows 2000 XP Vista Server 2000 and Server 2003 (64-bit):
Windows will recognize a new "FT232R USB UART" and open the hardware assistant.
Please choose manual installation and put the driver CD into your CD-Rom drive (as
sample D: ). Now enter the Path "D:\USB_to_IO\FTDI\Win2003_XP_VISTA(x64)" into
the box for the Path/Source and click at >next/continue<. Now Windows search for the
drivers in the specified directory. Follow the hardware assistant and finish the installa-
tion. If Windows recognizes other new devices repeat the above described steps. Atten-
tion! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that open select >Device Manager<. Under "Ports (COM and LPT)" you should find
one more new „USB Serial Port„ as sample (COM3). If you see this or similar entries
the module is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 to 256.
LINUX:
There are drivers available for Linux. The drivers are located in the folder
"D:\USB_to_IO\FTDI\Linux" on the driver CD. They are supported by the most ver-
sions of Linux. Because each individual distribution and kernel version of Linux is differ-
ent, sadly we cant provide a installation instruction. Please refer to the installation man-
ual for standard IO ports from your Linux version !
MAC:
There are drivers available for MAC. The drivers are located in the folder
"D:\USB_to_IO\FTDI\" on the driver CD. They are supported by the most versions of
MAC OS. Because each individual version of MAC OS is different, sadly we cant pro-
vide a installation instruction. Please refer to the installation manual for standard IO
ports from your MAC OS version !
CLEANING :
For cleaning please use only a dry fluffless cloth and remove the dirt with gently pressu-
re. In the area of the connectors please make sure that no fibres from the cloth remain
in the connectors. Attention! Never use a moist or wet cloth for cleaning!
English English English

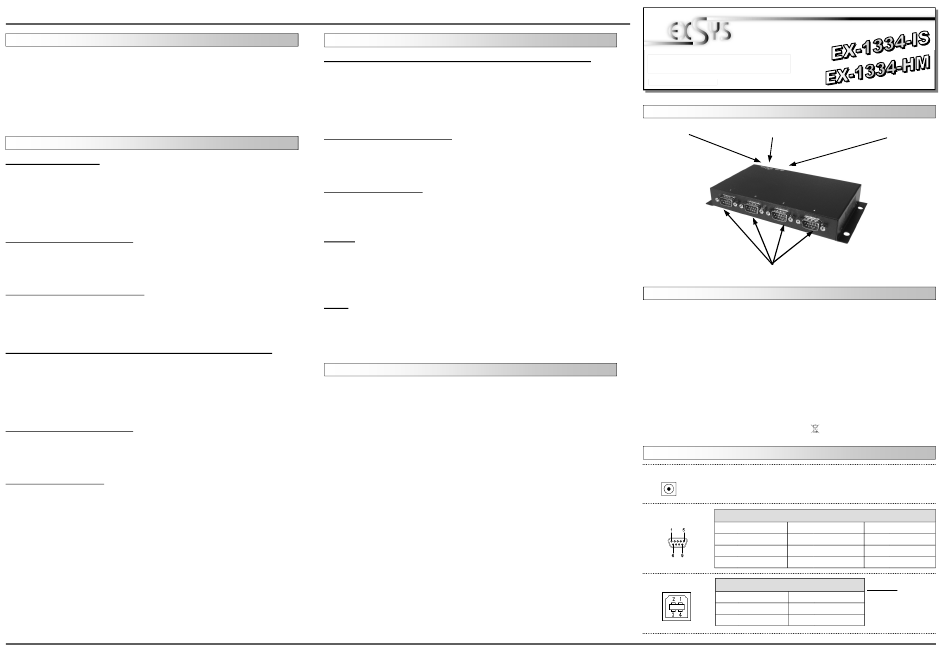

AUFBAU :
Betriebs LED
BESCHREIBUNG & TECHNISCHE DATEN :

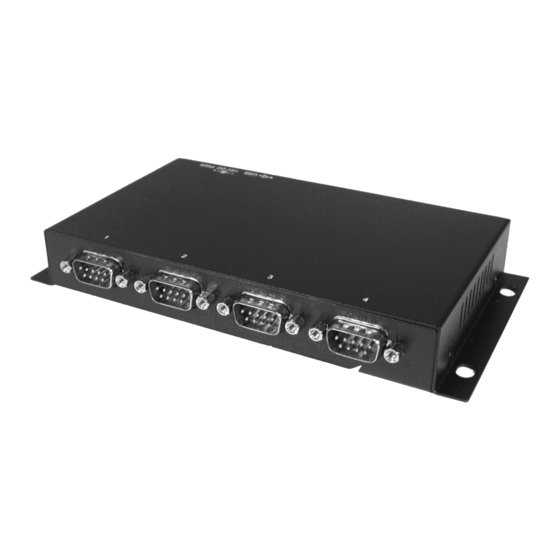

Die EX-1334IS und EX-1334HM sind Module mit Umsetzung von USB auf vier
RS-232 Schnittstellen mit FIFO 16C550 Ports für den Anschluss von High Speed
Seriellen RS-232 Peripherie Geräten (z.B. Modem, Plotter usw.) Die USB Modu-
le sind Hot Plug & Play. Für die Einstellungen der I/O Adressen und Interrupts
sind keine Jumper und Einstellungen notwendig. Sie werden vom System BIOS
und beim Installieren des Betriebssystems automatisch vorgenommen. Die Ex-
1334-IS ist zusätzlich mit 15KV Surge Protection und 2.5KV Optical Isolation
ausgerüstet und wird mit einem Netzteil ausgeliefert.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
JUMPER EINSTELLUNG & ANSCHLÜSSE:
5 Volt Buchse:
DB 9M:
USB B Buchse:
6
Bedienungsanleitung
Bedienungsanleitung
Vers. 1.0 / 08.10.07
5V Buchse für
externes Netzteil
4 x 9 Pin Stecker Seriell RS-232
S1-S4
USB 1.1 & 2.0 Anschluss
WIN 9.x/ME/2000/XP/Server 2003/Vista/Linux/MAC
4 x 9 Pin Sub-D Stecker, 1 x USB B-Buchse, 1 x 5V Buchse
EX-1334IS bzw. 1334HM, Anleitung, CD, USB Kabel
/ FCC / RoHS / WEEE
CE CE CE CE
DE97424562 / WHQL
ACHTUNG !!!
Nur zur Verwendung mit im Lieferumfang enthaltenem Netzteil !!!
Seriell 9 Pin D-SUB Stecker:
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
USB 2.0 B-Buchse:
Pin Signal Pin
1 VCC 3
2 DATA- 4
1
USB B-Buchse
PC-Anschluss
Signal Pin Signal
DTR 7 RTS
8 CTS
DSR 9 RI
Achtung!
Signal Stecker nie umge-
kehrt oder mit
DATA+
Gewalt einstecken.
GND
