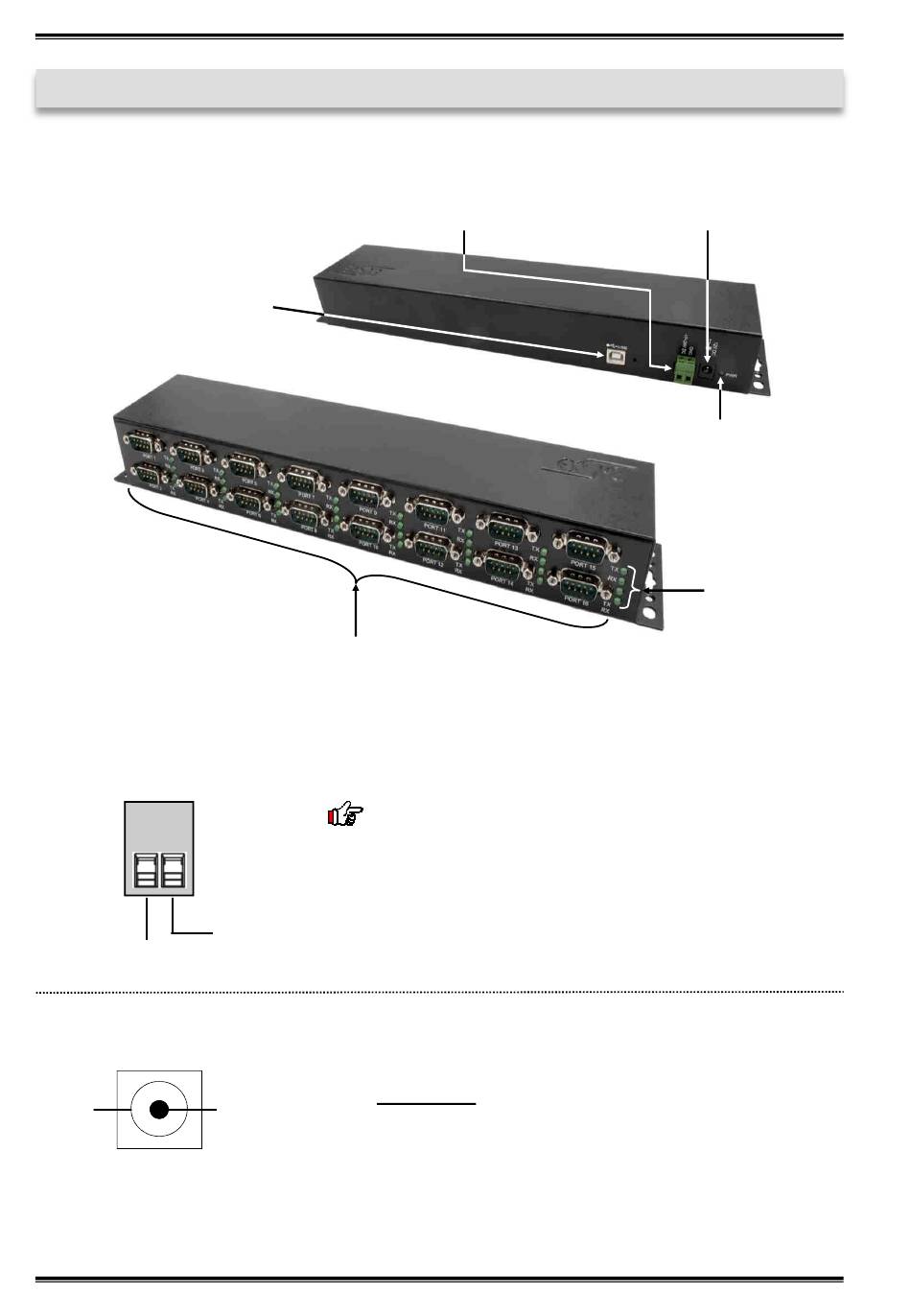

3. Layout, Connections, LED's & Jumper Settings

3.1 Layout

1x USB 2.0
Upstream B-Port
S1-S16: 16x 9 Pin Serial RS-232 Connector

3.2 Connections

+7V-24V T-Block:
+7V - 24V
+12V Buchse:
-
© Copyright 2017 by EXSYS Vertriebs GmbH. All Rights Reserved
7-24V T-Block for optional
external Power Supply
ATTENTION!!
Never connect power to GND, it will destroy
your Hardware!!!
GND (Ground)
Attention!!!
+
Use only with the included power supply!
10
EX-1316HMV
12V DC Connector for
included Power Supply
Power LED
Status LED
for each Port
