HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-1304. Please refer your computers reference manual whenever in doubt.
1. Connect the EX-1304 USB to the USB A-Port at the your PC.
2. When you are ready you can start your PC and continue with the point Driver Installation.
DRIVER INSTALLATION
Windows 2000/ XP/ Vista/ 7/ 8/ Server 200x
Windows will recognize a new „FT232R USB UART" and open the hardware assistant. Please
choose manual installation and put the driver CD into your CD-ROM drive. Enter Path
"D:\USB_to_IO\FTDI\(32_64bit)Win7_8_XP_Vista_2008_2008R2_2003_2000"
into the box for the Path/Source and click at >next/continue<. Now Windows search for the
drivers in the specified directory. Follow the hardware assistant and finish the installation. If
Windows recognizes other new devices repeat the above described steps. Attention! Restart
Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
open select >Device Manager<. Under "Ports (COM and LPT)" you should find one more
new „USB Serial Port (COM2)". If you see this or similar entries the module is installed cor-
rectly.
CHANGE PORT NUMBER (NOT WIN98 & ME)
If you like to change the port number for example COM3 to COM5, open the >Device Manager<
click at >COM3<, >Settings< and then >Advance<. There you can choose between COM3 up to
COM256.
Windows 98/ 98SE/ ME
Windows will recognize a new "FT232R USB UART" and open the hardware assistant. Please
choose manual installation and put the driver CD into your CD-Rom drive (as sample D:) . Now
enter the Path "D:\USB_to_IO\FTDI\Win98_ME" into the box for the Path/Source and click at
>next/continue<. Now Windows search for the drivers in the specified directory. Follow the
hardware assistant and finish the installation. If Windows recognizes other new devices repeat
the above described steps. Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
open select >Device Manager<. Under "Ports (COM and LPT)" you should find one more
new „USB Serial Port (COM2)". If you see this or similar entries the module is installed cor-
rectly.
LINUX
There are drivers available for Linux. The drivers
"D:\USB_to_IO\FTDI\Linux x86_64" on the driver CD. They are supported by the most ver-
sions of Linux. Because each individual distribution and kernel version of Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual for stan-
dard I/O ports from your Linux version !
MAC
There are drivers available for MAC. The drivers
"D:\USB_to_IO\FTDI\MAC OSX or Mac_OS_9_8" on the driver CD. They are supported by
the most versions of MAC OS. Because each individual version of MAC OS is different, sadly
we cant provide a installation instruction. Please refer to the installation manual for standard I/O
ports from your MAC OS version !
5
English English English EX EX- EX - - 1304 1304 1304
are located in the folder
are located in the folder
English English English

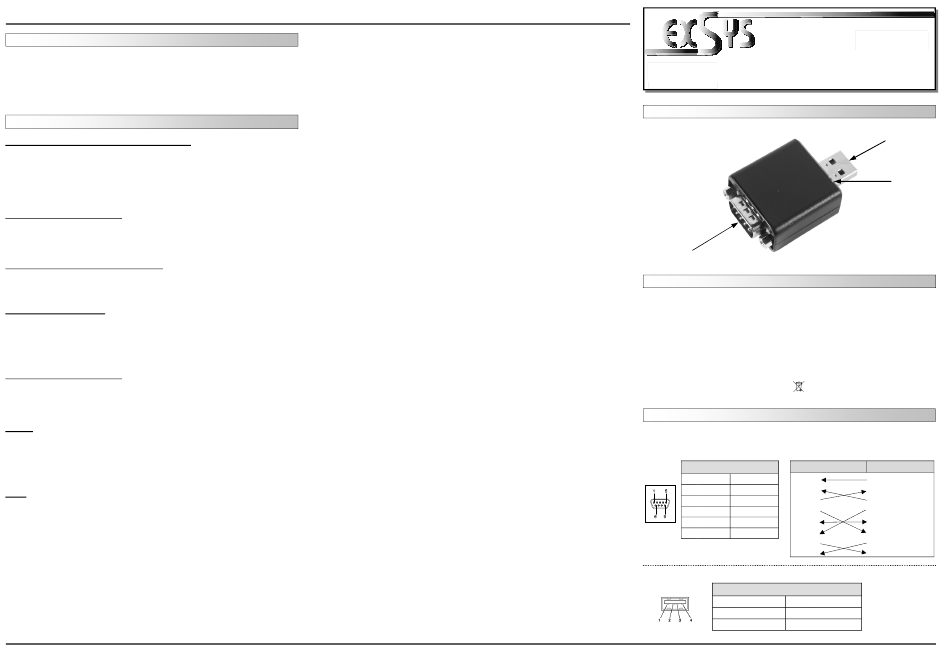

AUFBAU
S1: 9 Pin Stecker Seriell RS-232
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-1304 ist ein Modul zur Umsetzung von USB 2.0 auf eine RS-232 Schnittstelle mit FIFO
16C550 Port für den Anschluss von High Speed Seriellen RS-232 Peripherie Geräten (z.B.
Modem, Plotter usw.). Das USB Modul ist Hot Plug & Play fähig. Für die Einstellungen der I/O
Adressen und Interrupts sind keine Jumper und Einstellungen notwendig, da die Einstellungen
automatisch vom System BIOS und bei der Installation des Betriebssystems vorgenommen
werden.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
ANSCHLÜSSE
RS-232 Anschlussbelegung
DB 9M
USB A-Stecker
6
Anleitung
Anleitung
Vers. 1.0 / 22.04.15
USB 2.0
WIN 9.x/ ME/ 2000/ XP/ Vista/ 7/ 8/ Server 200x/ Linux/ MAC
1x 9 Pin D-SUB Stecker, 1x USB A-Stecker
EX-1304, Treiber CD, Anleitung
CE / FCC / RoHS / WEEE DE97424562
Verdrahtung RS-232
DB9 (EX-1304)
Seriell 9 Pin D-SUB Stecker
1 DCD
Pin Signal Pin Signal
2 RXD
1 DCD 6 DSR
3 TXD
2 RXD 7 RTS
4 DTR
3 TXD 8 CTS
5 GND
4 DTR 9 RI
6 DSR
5 GND
7 RTS
8 CTS
USB 2.0 A-Stecker
Pin Signal Pin Signal
1 VCC 3 DATA+
2 DATA- 4
1
EX - 1304
EX - 1304
USB A–Stecker
Betriebs LED
RS-232 (Endgerät)
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
GND
