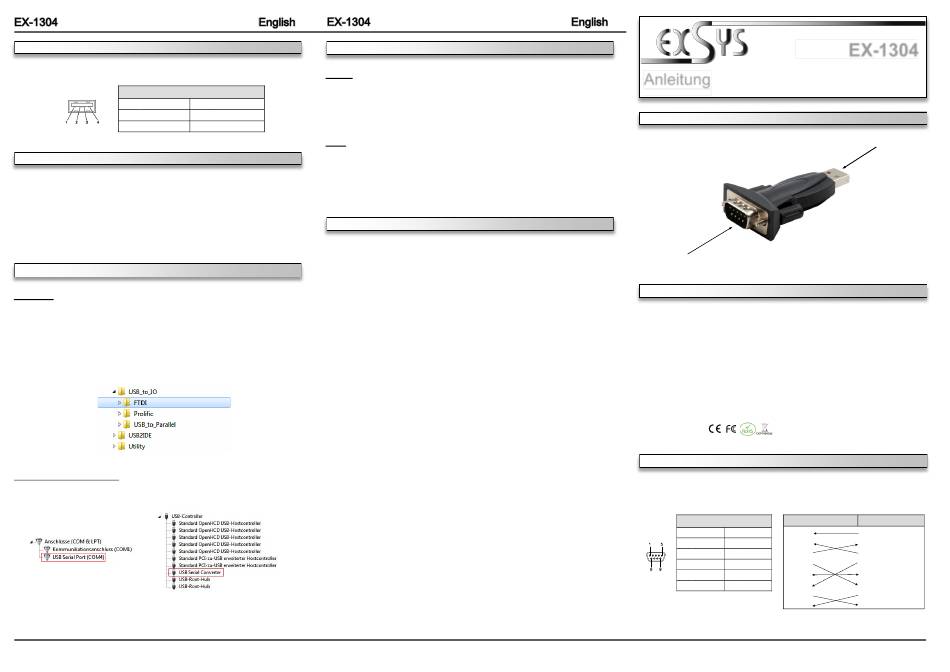

Exsys EX-1304 Anleitung

CONNECTORS
USB A-Connector
USB A-Connector
Pin Signal
1 VCC
2 DATA-
HARDWARE INSTALLATION
Please note the following installation instructions. As there are major differences between PCs, we
can only provide you with general instructions for installing the EX-1304. If you are unsure, please
refer to the operating instructions for your computer system.
1. Connect the EX-1304 to a USB A socket on your PC.
2. Connect the cable with the 9-pin socket to the EX-1304.
3. Now you can start your PC and continue with the driver installation.
DRIVER INSTALLATION
Windows
Once the hardware installation is complete, the operating system automatically recognizes the
adapter and installs it! If the drivers are not installed automatically, you can download them from
our website www.exsys.de or www.exsys.ch. Enter our article number EX-1304 under "Search".
There you will find the drivers and manual. Open the folder "USB_to_IO/FTDI". Now select the
folder of your operating system and install the drivers (see illustration). Follow the installation
instructions and complete the installation. Important! Restart your PC after the installation.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ports (COM & LPT)" and „USB-
Controller" the following new entry:
If you see this or a similar information the device is installed correctly.
5
DRIVER INSTALLATION
LINUX
There are drivers
"\USB_to_IO\FTDI\Linux x86_64" on the driver CD. They are supported by the most versions
of Linux. Because each individual distribution and kernel version of Linux is different, sadly we
Pin Signal
cant provide a installation instruction. Please refer to the installation manual for standard I/O
3 DATA+
ports from your Linux version !
4 GND
MAC
There are drivers
"\USB_to_IO\FTDI\MAC OSX or Mac_OS_9_8" on the driver CD. They are supported by the
most versions of MAC OS. Because each individual version of MAC OS is different, sadly we
cant provide a installation instruction. Please refer to the installation manual for standard I/O
ports from your MAC OS version !
CLEANING
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
the area of the connectors please make sure that no fibres from the cloth remain in the connect-
ors. Attention! Never use a moist or wet cloth for cleaning!
available for Linux. The drivers are located in
available for MAC. The drivers are located in
6
Anleitung
the folder
Vers. 1.2 / 15.01.24
AUFBAU
the folder
S1: 9 Pin Stecker Seriell RS-232
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-1304 ist ein Modul zur Umsetzung von USB auf eine RS-232 Schnittstelle mit FIFO
16C550 Port für den Anschluss von High Speed Seriellen RS-232 Peripherie Geräten (z.B.
Modem, Plotter usw.). Das USB Modul ist Hot Plug & Play fähig. Für die Einstellungen der I/O
Adressen und Interrupts sind keine Jumper und Einstellungen notwendig, da die Einstellungen
automatisch vom System BIOS und bei der Installation des Betriebssystems vorgenommen
werden.
Kompatibilität: USB 1.1 & 2.0
Betriebssysteme: Windows 9.x / ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx /
Linux / MAC
Anschlüsse: 1x 9 Pin D-SUB Stecker, 1x USB A-Stecker
Lieferumfang: EX-1304
Zertifikate:
ANSCHLÜSSE
RS-232 Anschlussbelegung:
DB 9M
Seriell 9 Pin D-SUB Stecker
Pin Signal Pin Signal
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 GND
EX-1304
USB A–Stecker
Verdrahtung RS-232
DB9 (EX-1304) RS-232 (Endgerät)
1 DCD 1 DCD
2 RXD 2 RXD
3 TXD 3 TXD
4 DTR 4 DTR
5 GND 5 GND
6 DSR 6 DSR
7 RTS 7 RTS
8 CTS 8 CTS
1
