HARDWARE INSTALLATION:
Because there are large differences between PC's, we can give you only a general installa-
tion guide for the EX-1332HMV. Please refer your computer's reference manual whenever
in doubt.
1. Connect the USB cable to the USB B-Port of the module an lock the screw.
2. Now connect the other end from the USB cable (A-Plug) to the A-Port at your PC.
DRIVER INSTALLATION:
Windows XP/ Vista/ 2000/ Server 200x/ 7/ 8 (32&64-Bit) :
Windows will recognize a new "FT232R USB UART" and open the hardware assistant.
Please choose manual installation and put the driver CD into your CD-Rom drive. Enter
the Path
"D:\USB_to_IO\FTDI\(32_64bit)Win7_8_XP_Vista_2008_2008R2_2003_2000".
into the box for the Path/Source and click at >next/continue<. Now Windows search for
the drivers in the specified directory. Follow the hardware assistant and finish the instal-
lation. If Windows recognizes other new devices repeat the above described steps.
Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that open select >Device Manager<. Under "Ports (COM and LPT)" you should find
one more new "USB Serial Port„ as sample (COM5). If you see this or similar entries
the module is installed correctly.
INSTALL THE PERIPHERAL DEVICE:
The speed from the serial ports can be set to the maximum baud rate of 115.2Kbaud.
With double click select for example >Device manager< > USB Serial Port (COM5)<.
Now you can select the different settings of baud rate, stop/start-bits etc. This setting
you can use also for the other COM ports.
Windows 98/ 98SE/ ME:
Windows will recognize a new "FT232R USB UART" and open the hardware assistant.
Please choose manual installation and put the driver CD into your CD-Rom drive (as
sample D:) . Now enter the Path "D:\USB_to_IO\FTDI\Win98_ME" into the box for the
Path/Source and click at >next/continue<. Now Windows search for the drivers in the
specified directory. Follow the hardware assistant and finish the installation. If Windows
recognizes other new devices repeat the above described steps. Attention! Restart
Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that open select >Device Manager<. Under "Ports (COM and LPT)" you should find
one more new "USB Serial Port„ as sample (COM3). If you see this or similar entries
the module is installed correctly.
CHANGE PORT NUMBER:
If you like to change the port number for example COM 3 to COM 5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM 3 to 256.
LINUX:
There are drivers available for Linux. The drivers are located in the folder
"D:\USB_to_IO\FTDI\Linux x86_64" on the driver CD. They are supported by the most
versions of Linux. Because each individual distribution and kernel version of Linux is
different, sadly we cant provide a installation instruction. Please refer to the installation
manual for standard IO ports from your Linux version !
MAC:
There are drivers available for MAC. The drivers are located in the folder
"D:\USB_to_IO\FTDI\MAC OSX or Mac_OS_9_8" on the driver CD. They are support-
ed by the most versions of MAC OS. Because each individual version of MAC OS is
different, sadly we cant provide a installation instruction. Please refer to the installation
manual for standard IO ports from your MAC OS version !
5
English English English EX- EX EX - - 1332HMV 1332HMV 1332HMV
CLEANING:
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pres-
sure. In the area of the connectors please make sure that no fibres from the cloth re-
main in the connectors. Attention! Never use a moist or wet cloth for cleaning!
English English English

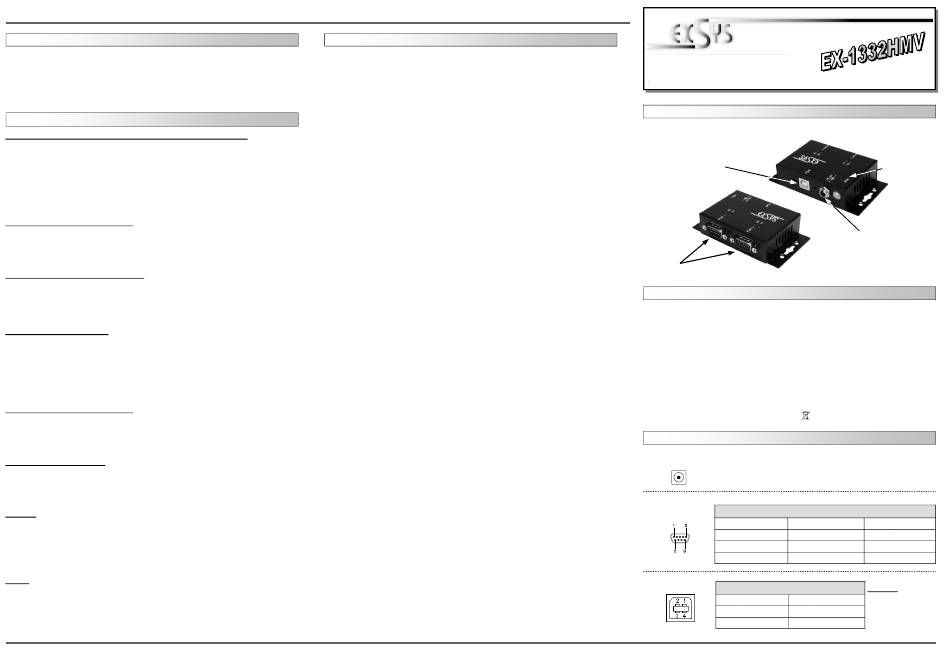

AUFBAU:
BESCHREIBUNG & TECHNISCHE DATEN:

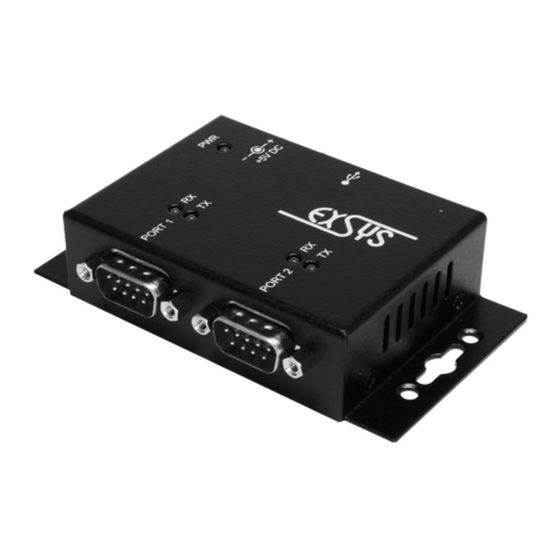

Die EX-1332HMV ist ein Modul zur Umsetzung von USB 2.0 auf zwei RS-232 Schnitt-
stellen mit FIFO 16C550 Ports für den Anschluss von High Speed Seriellen RS-232
Peripherie Geräten (z.B. Modem, Plotter usw.). Die USB Module sind Hot Plug & Play
fähig. Für die Einstellungen der I/O Adressen und Interrupts sind keine Jumper und
Einstellungen notwendig. Sie werden vom System BIOS und beim installieren des
Betriebssystems automatisch vorgenommen. Die EX-1332HMV ist zusätzlich mit ver-
schraubbarem USB Anschluss und Netzteil Anschluss ausgerüstet.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
JUMPER EINSTELLUNG & ANSCHLÜSSE:
5 Volt Buchse:
DB 9M:
USB B-Buchse:
6
Bedienungsanleitung Bedienungsanleitung
Vers. 1.1 / 06.06.13
USB B-Buchse
PC-Anschluss
(Verschraubbar)
S1 & S2: 9 Pin Stecker Seriell RS-232
USB 2.0 Anschluss
WIN 9.x/ ME/ 2000/ XP/ Server 200x/ Vista/ 7/ 8, Linux, MAC
2x 9 Pin D-Sub Stecker, 1x USB B-Buchse, 1x 5V Buchse
EX-1332HMV, Treiber CD, Anleitung, USB Kabel
CE / FCC / RoHS / WEEE CE DE97424562 / WHQL
CE CE
ACHTUNG !!!
Nur zur Verwendung mit optionalem Original Netzteil !!!
Seriell 9 Pin D-SUB Stecker (S1 & S2)
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
USB 2.0 B-Buchse
Pin Signal Pin
1 VCC 3
2 DATA- 4
1
Betriebs LED
5V Buchse für externes
Netzteil (Verschraubbar)
Signal Pin Signal
DTR 7 RTS
8 CTS
DSR 9 RI
Achtung!
Stecker nie umge-
Signal
kehrt oder mit
DATA+
Gewalt einstecken.
GND
