Exsys EX-1303 Bedienungsanleitung

EX EX- EX - - 1303 1303 1303
JUMPER SETTING & CONNECTORS
DB 9M:
Serial 9 Pin male connector
Pin Signal Pin
1 TXD- (DATA-) 4
2 TXD+ (DATA+) 5
3 RXD+ 6
USB A-Connector:
USB 2.0 A-Connector
Pin Signal Pin
1 VCC 3
2 DATA- 4
RS-422 Cable Wiring:
DB 9 Male (EX-1303) RS-422 Peripheraldevice
1 TXD-
2 TXD+
3 RXD+
4 RXD-
5 GND
RS-485 Cable Wiring:
DB 9 Male (EX-1303)
RS-485 Peripheraldevice
1 DATA-
2 DATA+
3 NC
4 NC
5 GND
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide. Please refer your computer's reference manual whenever in doubt.
1. Connect the end from the USB cable (A-Plug) to the USB A-connector at your PC.
5
All manuals and user guides at all-guides.com
English English English EX- EX EX - - 1303 1303 1303
DRIVER INSTALLATION
Windows 2000/ XP/ Vista/ 7/ 8/ Server 200x
Windows will recognize a new „FT232R USB UART" and open the hardware assistant. Please
Signal Pin Signal
choose manual installation and put the driver CD into your CD-ROM drive. Enter Path
"D:\USB_to_IO\FTDI\(32_64bit)Win7_8_XP_Vista_2008_2008R2_2003_2000"
RXD- 7 NC
into the box for the Path/Source and click at >next/continue<. Now Windows search for the
GROUND 8 NC
drivers in the specified directory. Follow the hardware assistant and finish the installation. If
NC 9 NC Windows recognizes other new devices repeat the above described steps. Attention! Restart
Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
Attention!
open select >Device Manager<. Under "Ports (COM and LPT)" you should find one more
Signal
Never plug in with
new „USB Serial Port (COM2) to (COM9)". If you see this or similar entries the module is
force or in wrong
DATA+
installed correctly.
direction.
GND
INSTALL THE PERIPHERAL DEVICE
The speed from the serial ports can be set to the maximum baud rate of 115.2Kbaud. With
double click select for example >Device manager< >USB Serial Port (COM5)<. Now you can
select the different settings of baud rate, stop/start-bits etc. This setting you can use also for the
other COM ports.
CHANGE PORT NUMBER (NOT WIN98 & ME)
1 TXD-
If you like to change the port number for example COM3 to COM5, open the >Device Manager<
2 TXD+
click at >COM3<, >Settings< and then >Advance<. There you can choose between COM3 up to
3 RXD+
COM256.
4 RXD-
5 GND
Windows 98/ 98SE/ ME
Windows will recognize a new "FT232R USB UART" and open the hardware assistant. Please
choose manual installation and put the driver CD into your CD-Rom drive (as sample D:) . Now
enter the Path "D:\USB_to_IO\FTDI\Win98_ME" into the box for the Path/Source and click at
>next/continue<. Now Windows search for the drivers in the specified directory. Follow the
hardware assistant and finish the installation. If Windows recognizes other new devices repeat
1 TXD-
the above described steps. Attention! Restart Windows in any case after installing the drivers.
2 TXD+
CHECK THE INSTALLED DRIVER
3 NC
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
4 NC
open select >Device Manager<. Under "Ports (COM and LPT)" you should find one more
5 GND
new „USB Serial Port (COM2) to (COM9)". If you see this or similar entries the module is
installed correctly.
INSTALL THE PERIPHERAL DEVICE
The speed from the serial ports can be set to the maximum baud rate of 115.2Kbaud. With
double click select for example >Device manager< >USB Serial Port (COM5)<. Now you can
select the different settings of baud rate, stop/start-bits etc. This setting you can use also for the
other COM ports.
LINUX
There are
"D:\USB_to_IO\FTDI\Linux x86_64" on the driver CD. They are supported by the most ver-
sions of Linux. Because each individual distribution and kernel version of Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual for stan-
dard I/O ports from your Linux version.
MAC
There are
"D:\USB_to_IO\FTDI\MAC OSX or Mac_OS_9_8" on the driver CD. They are supported by
the most versions of MAC OS. Because each individual version of MAC OS is different, sadly
we cant provide a installation instruction. Please refer to the installation manual for standard I/O
ports from your MAC OS version.
drivers available for Linux. The drivers are located
drivers available for MAC. The drivers are located
6
English English English
Bedienungsanleitung
Bedienungsanleitung
Vers. 1.3 / 09.05.14

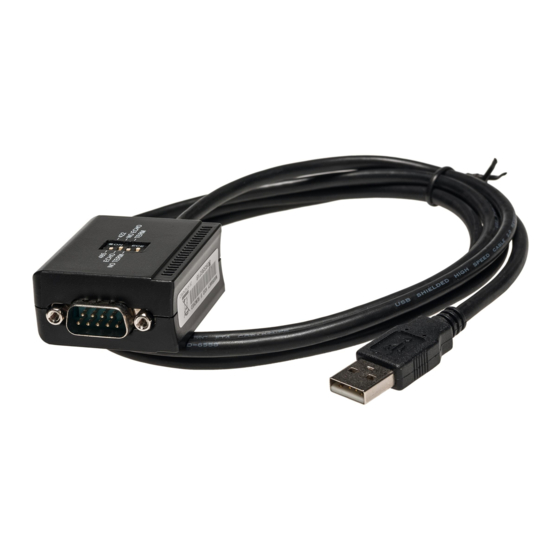

AUFBAU
USB A–Stecker
Umschalter RS-422/485
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-1303 ist ein Modul zur Umsetzung von USB auf eine RS-422/485 Schnittstelle mit FIFO
16C550 Port für den Anschluss von High Speed Seriellen RS-422/485 Peripherie Geräten (z.B.
Modem, Plotter usw.). Das USB Modul ist Hot Plug & Play fähig. Für die Einstellungen der I/O
Adressen und Interrupts sind keine Jumper und Einstellungen notwendig. Sie werden vom
System (BIOS) und beim installieren des Betriebssystems automatisch vorgenommen.
Kompatibilität: USB 1.1 & 2.0
Betriebssysteme: WIN 9.x/ ME/ 2000/ XP/ Vista/ 7/ 8/ Server 200x/ Linux/ MAC
Anschlüsse: 1x 9 Pin D-Sub Stecker, 1x USB A-Stecker
Lieferumfang: EX-1303, Treiber CD, Anleitung
Zertifikate: CE / FCC / RoHS / WEEE CE CE CE
JUMPER EINSTELLUNG & ANSCHLÜSSE
Switch Switch
Pin# Name
OFF
1 422/485
ON
in the folder
OFF
ECHO/
2
NO_ECHO
ON
OFF
NO TERM/
3
TERM
in the folder
ON
OFF
4 Leer
ON
•
Wenn Sie den Mode auf "422" setzen, sind die anderen Einstellung (AUTO, ECHO und
LOOP) nicht mehr aktiv.
•
Der "Echo Mode" ist nützlich, dass das Anwendungsprogramm erkennt ob der RS-485
"Bus" in einem Konflikt ist. Übereinstimmen die zurückgesendeten Daten nicht mit den
gesendeten Daten, ist der RS-485 Bus in einem Konflikt.
S1: 9 Pin Stecker Seriell RS-422/485
DE97424562 / WHQL
Switch
Beschreibung
Position
485 (Werkseinstellung) 2-Draht RS-485 Mode
422 4-Draht RS-422 Mode
Übermittelte Daten werden mit
ECHO
Echo zurückgesendet
NO_ECHO
Keine Echo Daten
(Werkseinstellung)
NO TERM
Terminator ausgeschaltet
(Werkseinstellung)
TERM Terminator eingeschaltet
OFF keine Funktion
(Werkseinstellung) keine Funktion
1
