Exsys EX-13078HM Anleitung

HARDWARE INSTALLATION:
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-13078HM. Please refer your computer's reference manual whenever in doubt.
1. Connect the USB cable to the USB B-Port of the module an lock the screw.
2. Now connect the other end from the USB cable (A-Plug) to the A-Port at your PC.
DRIVER INSTALLATION:
Drivers for the different operating systems can be downloaded from the EXSYS website
(www.exsys.de / www.exsys.ch).
Windows 10/ 11 (32&64-Bit):
No drivers are required.
Windows XP/ Vista/ 2000/ Server 200x/ 7/ 8 (32&64-Bit):
Windows will recognize a new "FT232R USB UART" and open the hardware assistant. Please
choose manual installation and select the appropriate driver from the downloaded file folder.
Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
open select >Device Manager<. Under "Ports (COM and LPT)" you should find one more new
"USB Serial Port„ as sample (COM5). If you see this or similar entries the module is installed
correctly.
INSTALL THE PERIPHERAL DEVICE:
The speed from the serial ports can be set to the maximum baud rate of 115.2Kbaud. With
double click select for example >Device manager< > USB Serial Port (COM5)<. Now you can
select the different settings of baud rate, stop/start-bits etc. This setting you can use also for the
other COM ports.
Windows 98/ 98SE/ ME:
Windows will recognize a new "FT232R USB UART" and open the hardware assistant. Please
choose manual installation and select the appropriate driver from the downloaded file folder.
Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER:
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows that
open select >Device Manager<. Under "Ports (COM and LPT)" you should find one more new
"USB Serial Port„ as sample (COM3). If you see this or similar entries the module is installed
correctly.
INSTALL THE PERIPHERAL DEVICE:
The speed from the serial ports can be set to the maximum baud rate of 115.2Kbaud. With
double click select for example >Device manager< > USB Serial Port (COM5)<. Now you can
select the different settings of baud rate, stop/start-bits etc. This setting you can use also for the
other COM ports.
CHANGE PORT NUMBER:
If needed, the COM ports can be changed. Open the >Device Manager< click at >COM3<,
>Settings< and then >Advance<. There you can change between COM 3 to 256.
5
DRIVER INSTALLATION
LINUX:
The Linux driver is supported by most Linux versions. Since the individual distributions and
kernel versions differ greatly from each other, we can unfortunately not give you installation
instructions here. Please follow the installation instructions for USB ports of your Linux version.
MAC:
The driver file contains drivers for Mac OS 8 and higher. Since the individual operating systems
differ from each other, we can unfortunately not give you installation instructions here. Please
refer to the installation instructions for USB ports of your MAC OS version.
CLEANING:
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
the area of the connectors please make sure that no fibres from the cloth remain in the connect-
ors. Attention! Never use a moist or wet cloth for cleaning!
Switzerland:
EXSYS Vertriebs GmbH
Dübendorfstrasse 17
8602 Wangen
www.exsys.ch
6

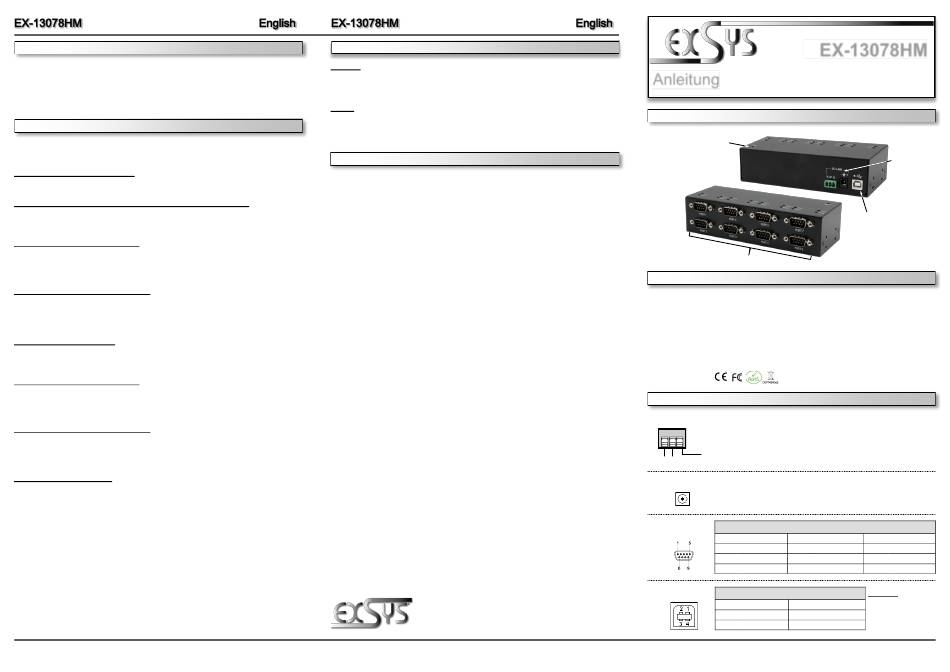

Anleitung
Vers. 1.0 / 27.07.22
AUFBAU:
Betriebs LED
S1 - S8: 9 Pin Stecker Seriell RS-232
BESCHREIBUNG & TECHNISCHE DATEN:
Die EX-13078HM ist ein Modul zur Umsetzung von USB 2.0 auf acht RS-232 Schnittstellen mit
FIFO 16C550 Ports für den Anschluss von seriellen high speed RS-232 Peripheriegeräten (z.B.
Modem, Plotter usw.). Die USB Module sind Hot Plug & Play fähig. Für die Einstellungen der
I/O Adressen und Interrupts sind keine Jumper und Einstellungen notwendig. Sie werden vom
System BIOS und beim installieren des Betriebssystems automatisch vorgenommen.
Kompatibilität: USB 2.0 Anschluss
Betriebssysteme: WIN 9.x/ME/2000/XP/Server200x/ Vista/ 7/ 8/ 10/ 11, Linux, MAC
Anschlüsse: 8x 9 Pin D-Sub Stecker, 1x USB B-Buchse, 1x T-Block, DC-Buchse
Lieferumfang: EX-13078HM, Montage-Bügel, DIN-Rack Kit, Anleitung, USB Kabel
Zertifikate:
JUMPER EINSTELLUNG & ANSCHLÜSSE:
9V ~ 48V T-Block:
ACHTUNG !!!
Schließen Sie niemals Strom an Ground an, da dies Ihre Hardware
zerstören kann!!!
–
+
GND (Ground)
9V ~ 48V
5 Volt Buchse:
ACHTUNG !!!
Nur zur Verwendung mit optionalem Original Netzteil !!!
DB 9M:
USB B-Buchse:
Germany:
EXSYS Vertriebs GmbH
Industriestrasse 8
61449 Steinbach
www.exsys.de
EX-13078HM
9-48V T-
Block & DC-
Anschluss
für optiona-
les externes
Netzteil
USB B-Buchse
PC-Anschluss
Seriell 9 Pin D-SUB Stecker (S1 - S8)
Pin Signal Pin Signal Pin
1 CDC 4 DTR 7
2 RXD 5 GROUND 8
3 TXD 6 DSR 9
Achtung!
USB 2.0 B-Buchse
Stecker nie umge-
Pin Signal Pin Signal
kehrt oder mit
1 VCC 3 DATA+
Gewalt einstecken.
2 DATA- 4 GND
1
Signal
RTS
CTS
RI
