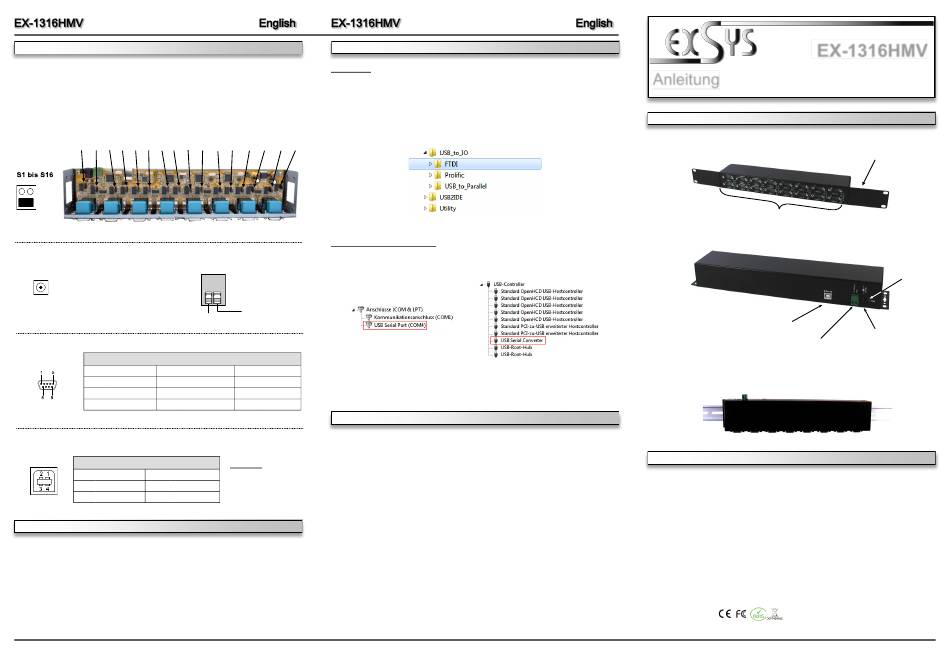

Exsys EX-1316HMV Anleitung

JUMPER SETTING & CONNECTORS
With the EX-1316HMV you have the option +5V or +12V to configure to pin 9 from all connector
S1 to S16:
Attention! Only change if you really need +5Volt or +12Volt for the peripheral device. For
normal use, don't change the jumper or your hardware can be damaged.
Open the housing with the four side Phillips screws and lift off the cover. There are now 16
jumper detectable with which the voltage can be set to pin 9 of the sixteen connectors
S1 S2 S3 S4 S5 S6 S7 S8 S9
PWR
DIS
12 Volt Connector: +7V ~ 40V Terminal Block:
ATTENTION !!!
Use only the original
power supply !!!
+7V ~ 40V
DB 9M:
Serial 9 Pin male connector
Pin Signal Pin
1 CDC 4
2 RXD 5 GROUND
3 TXD 6
USB B-Connector:
USB 2.0 B-Connector
Pin Signal Pin Signal
1 VCC 3 DATA+
2 DATA- 4 GND
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-1316HMV. Please refer your computers reference manual whenever in doubt.
1. Connect the supplied cable to the USB B-female connector from the EX-1316HMV and fix
the cable with the screw lock.
2. Now connect the other end A-male of the supplied cable to the A-female from your PC.
3. Connect the supplied power adapter to the +12V DC Jack socket and then turn on the EX-
1316HMV.
4. Start the PC and go to the point „Driver installation".
5
DRIVER INSTALLATION
Windows
After the hardware installation Windows will recognize the device automatically and install the
drivers. If the driver shoul not be installed automatically, please insert the Driver CD into your
CD-Rom drive (e.g. Drive D:) and open the folder „USB_to_IO/FTDI". Please select the folder
with your operating system and install the driver (see Picture). Follow the hardware assistant
and finish the installation. Important! Restart your PC in any case after installing the drivers.
S10 S11 S12 S13 S14 S15 S16
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „Ports (COM & LPT)" and „USB-
Controller" the following new entry:
GND (Ground)
Signal Pin Signal
DTR 7 RTS
If you see this or a similar information the device is installed correctly.
8 CTS
DSR 9 RI
CLEANING
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
the area of the connectors please make sure that no fibres from the cloth remain in the connect-
ors. Attention! Never use a moist or wet cloth for cleaning!
Attention!
Never plug in with
force or in wrong
direction.
AUFBAU
Vorderseite:
Rückseite:
Installation auf einer Trägerschiene:
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-1316HMV ist ein Modul zur Umsetzung von USB auf eine RS-232 Schnittstelle mit
FIFO 16C550 Port für den Anschluss von High Speed Seriellen RS-232 Peripherie Geräten
(z.B. Modem, Plotter usw.). Die EX-1316HMV ist mit einem USB 2.0 A-Stecker zum Anschluss
an den PC und einem RS-232 seriellen 9 Pin Stecker ausgestattet. Das USB Modul ist Hot
Plug & Play fähig. Die EX-1316HMV unterstützt POS (Power over System). Es besteht die
Möglichkeit, +12V oder +5V Spannung auf Pin 9 der sechzehn 9 Pin Stecker zu legen. Die
+12V oder +5V Spannung ist abhängig welches Netzteil am DC-Jack angeschlossen ist.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
6
EX-1316HMV
Anleitung
Vers. 1.3 / 21.11.17
Metallbügel zum Einbau in ein 19" Rack
S1-S16: 9 Pin Seriell RS-232 Stecker
USB B-Buchse
PC-Anschluss
(Verschraubbar)
+7V ~ 40V
Power Anschluss
USB 1.1 & 2.0
Windows 9.x/ ME/ 2000/ XP/ Vista/ 7/ 8.x/ 10/ Server 20xx/ Linux/ MAC
1x USB 2.0 B-Buchse, 16x 9 Pin Stecker Seriell RS-232
1x +7V bis +40V Terminal Block, 1x 12V DC Jack
EX-1316HMV, USB Kabel, Din-Rail Kit,
2 x Metall Bügel für 19" Rack, Treiber CD, Anleitung
1
Betriebs LED
12V Buchse für Netzteil
