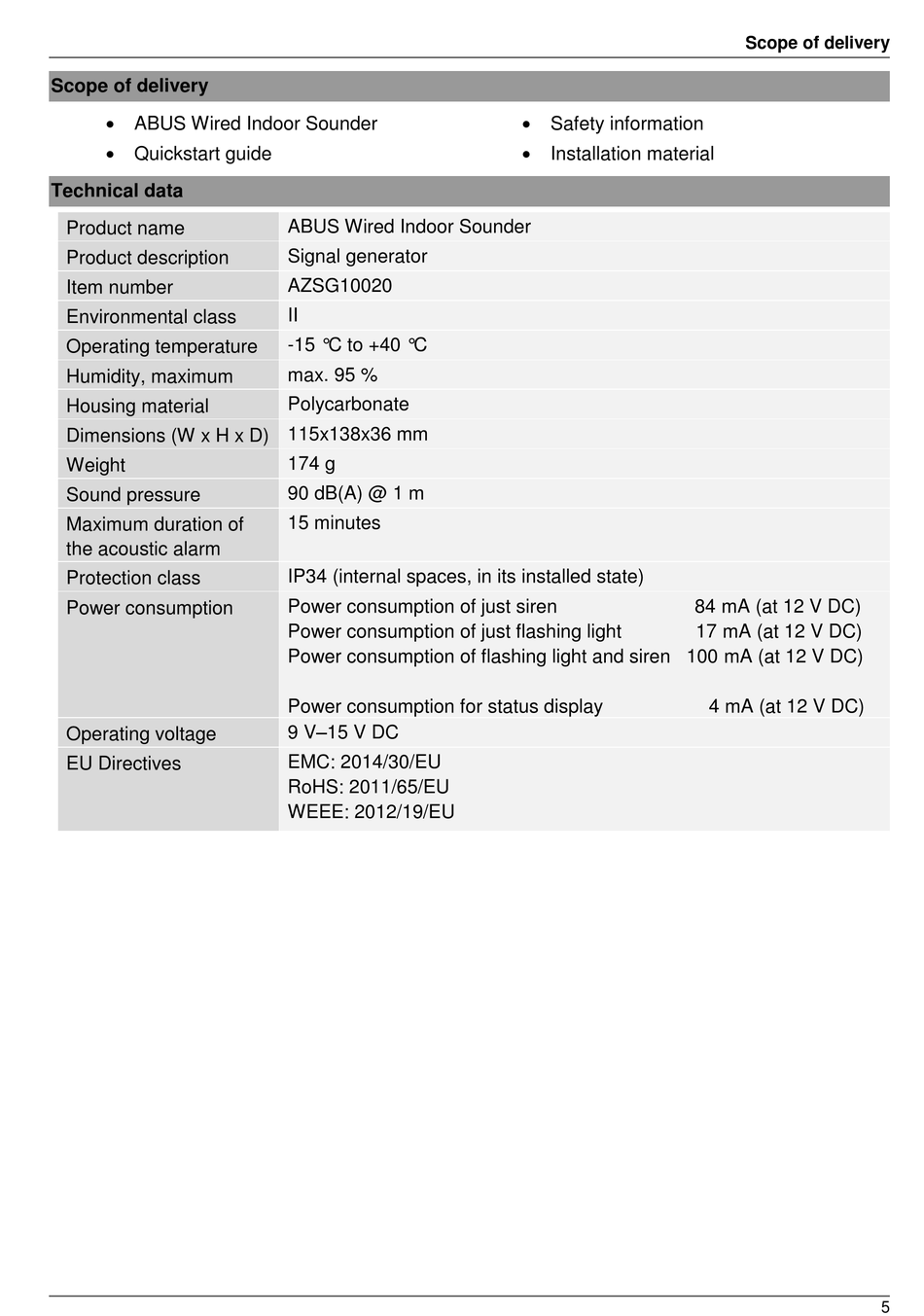

Scope of delivery

 ABUS Wired Indoor Sounder
 Quickstart guide

Technical data

Product name
Product description
Item number
Environmental class
Operating temperature
Humidity, maximum
Housing material
Dimensions (W x H x D) 115x138x36 mm
Weight
Sound pressure
Maximum duration of
the acoustic alarm
Protection class
Power consumption
Operating voltage
EU Directives
ABUS Wired Indoor Sounder
Signal generator
AZSG10020
II
-15 °C to +40 °C
max. 95 %
Polycarbonate
174 g
90 dB(A) @ 1 m
15 minutes
IP34 (internal spaces, in its installed state)
Power consumption of just siren
Power consumption of just flashing light
Power consumption of flashing light and siren 100 mA (at 12 V DC)
Power consumption for status display
9 V–15 V DC
EMC: 2014/30/EU
RoHS: 2011/65/EU
WEEE: 2012/19/EU
 Safety information
 Installation material
84 mA (at 12 V DC)
17 mA (at 12 V DC)
Scope of delivery
4 mA (at 12 V DC)
