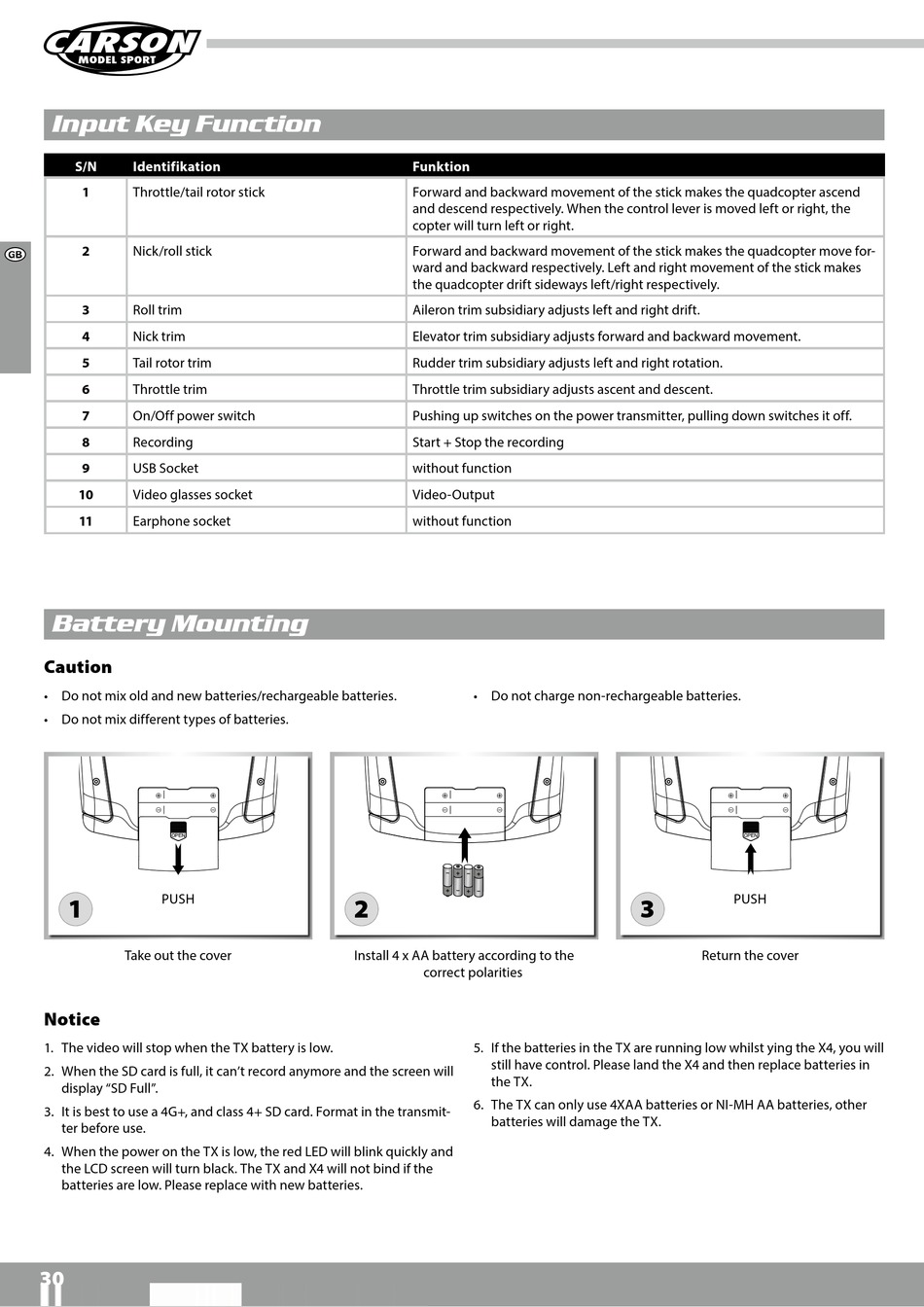

Input Key Function
S/N
Identifikation
1
Throttle/tail rotor stick
G
2
Nick/roll stick
3
Roll trim
4
Nick trim
5
Tail rotor trim
6
Throttle trim
7
On/Off power switch
8
Recording
9
USB Socket
10
Video glasses socket
11
Earphone socket
Battery Mounting
Caution
• Do not mix old and new batteries/rechargeable batteries.
• Do not mix different types of batteries.
1
PUSH
Take out the cover
Notice
1. The video will stop when the TX battery is low.
2. When the SD card is full, it can't record anymore and the screen will
display "SD Full".
3. It is best to use a 4G+, and class 4+ SD card. Format in the transmit-
ter before use.
4. When the power on the TX is low, the red LED will blink quickly and
the LCD screen will turn black. The TX and X4 will not bind if the
batteries are low. Please replace with new batteries.
30
Funktion
Forward and backward movement of the stick makes the quadcopter ascend
and descend respectively. When the control lever is moved left or right, the
copter will turn left or right.
Forward and backward movement of the stick makes the quadcopter move for-
ward and backward respectively. Left and right movement of the stick makes
the quadcopter drift sideways left/right respectively.
Aileron trim subsidiary adjusts left and right drift.
Elevator trim subsidiary adjusts forward and backward movement.
Rudder trim subsidiary adjusts left and right rotation.
Throttle trim subsidiary adjusts ascent and descent.
Pushing up switches on the power transmitter, pulling down switches it off.
Start + Stop the recording
without function
Video-Output
without function
• Do not charge non-rechargeable batteries.
2
Install 4 x AA battery according to the
correct polarities
5. If the batteries in the TX are running low whilst ying the X4, you will
still have control. Please land the X4 and then replace batteries in
the TX.
6. The TX can only use 4XAA batteries or NI-MH AA batteries, other
batteries will damage the TX.
3
PUSH
Return the cover
