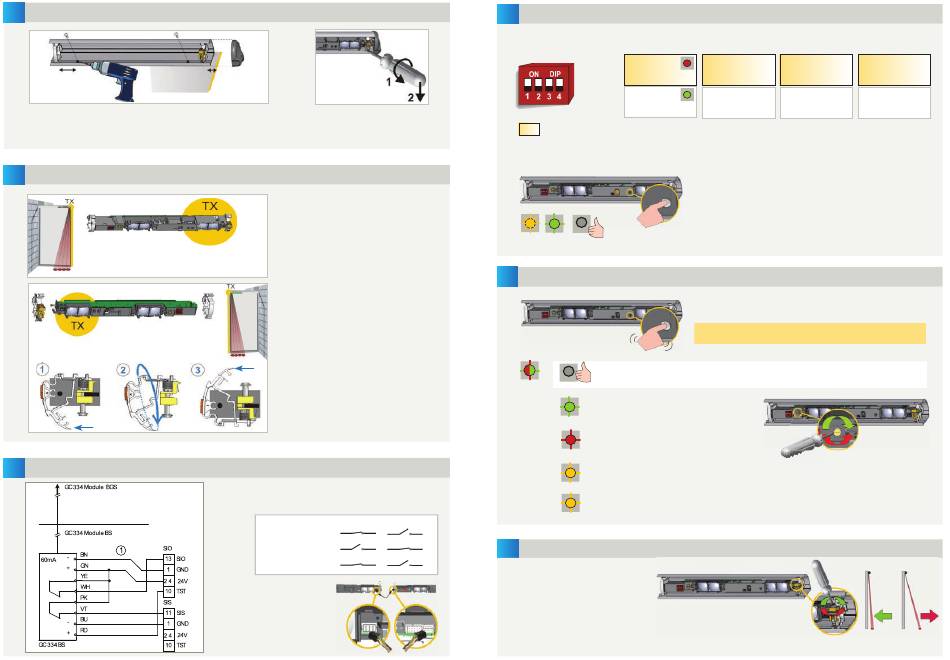

GEZE GC 334 Montageanleitung Seite 4

1
MOUNTING THE PROFILE
Mount the profi les as close as possible to the closing edge. Leave 2 cm
for the black end caps. Take the position of the white clips into account
before drilling and fastening the screws.
2
POSITIONING THE MODULES
180°
3
WIRING
/
/
GC 334
2 cm
To loosen the modules, please use
a screwdriver.
Place the transmitter (TX) next to the door
edges that needs to be protected.
Position the angle adjustment clip next to the
transmitter.
If necessary, turn the module and
reposition the clips as indicated.
1. Detach the clips
2. Turn them by 180°
3. Reattach
The module connected to the door controller
becomes the MASTER.
NO
NO POWER
NO DETECTION
DETECTION
Plug the SLAVE
CABLE between
the modules in
one of the two
placements.
4
SETTINGS
FACTORY VALUE
X
ORANGE GREEN OFF
5
CALIBRATION
RED-GREEN OFF
GREEN
RED
4
ORANGE
5
NC
6
DOOR SAFETY CHECK
IMPORTANT: Test the good
functioning of the installation
before leaving the premises.
If necessary, position spots
closer to or away from the door
and relaunch a calibration.
MOUNTING FREQUENCY
SIDE
RELAY 1
ON
FREQ A
OPENING SIDE
RELAY 2
OFF FREQ B
CLOSING SIDE
LED during detection:
Set different
R1 > RED frequencies on
R2 > GREEN modules close to
each other.
After changing a DIP-switch, the orange LED fl ashes.
A LONG push on the push button of the MASTER
confi rms the settings of ALL MODULES.
Afterwards, a number of green fl ashes (x) indicates
the number of connected modules.
A SHORT push on the button of the MASTER launches a
calibration on ALL MODULES.
Do not stand in the detection fi eld!
When the LED is off on all modules, the detection zone is OK.
The detection zone is too short:
turn the screw clockwise.
The detection zone is too long:
turn the screw anticlockwise.
Step out of the detection fi eld.
If necessary, change angle or switch off background (DIP 3 = OFF).
Launch a new calibration.
UNCOVERED
BACKGROUND
ZONE
ON HIGH*
OFF
LOW
Not enough background Approximate values at 2 m:
refl ectivity: switch to OFF high= 40 cm, low = 15 cm
* Recommended for most applications.
Mounting height > 2.7 m: set to LOW for
EN 16005 and DIN 18650-conformity.
The fl ashing speed of
the LED increases when
approaching the optimal
position.
GC 334
