AXIS blade video servers
S/N -
(serial number) is identical to the unit's MAC/Ethernet address,
e.g. 00408C1A2B3C = 00-40-8C-1A-2B-3C.
P/N -
is the product's model number.
Bus Connector -
This is the physical interface to the I/O terminal connector on the rack.
DIP Switches (4-port models) -
DIP switch. Axis blade video servers are supplied with the line termination enabled for each
input; i.e. with the DIP switches set to ON (down position). To connect the video server in parallel
with other equipment, disable the input termination by setting the corresponding DIP switch to
OFF (up position). Failure to do so may affect the image quality negatively.

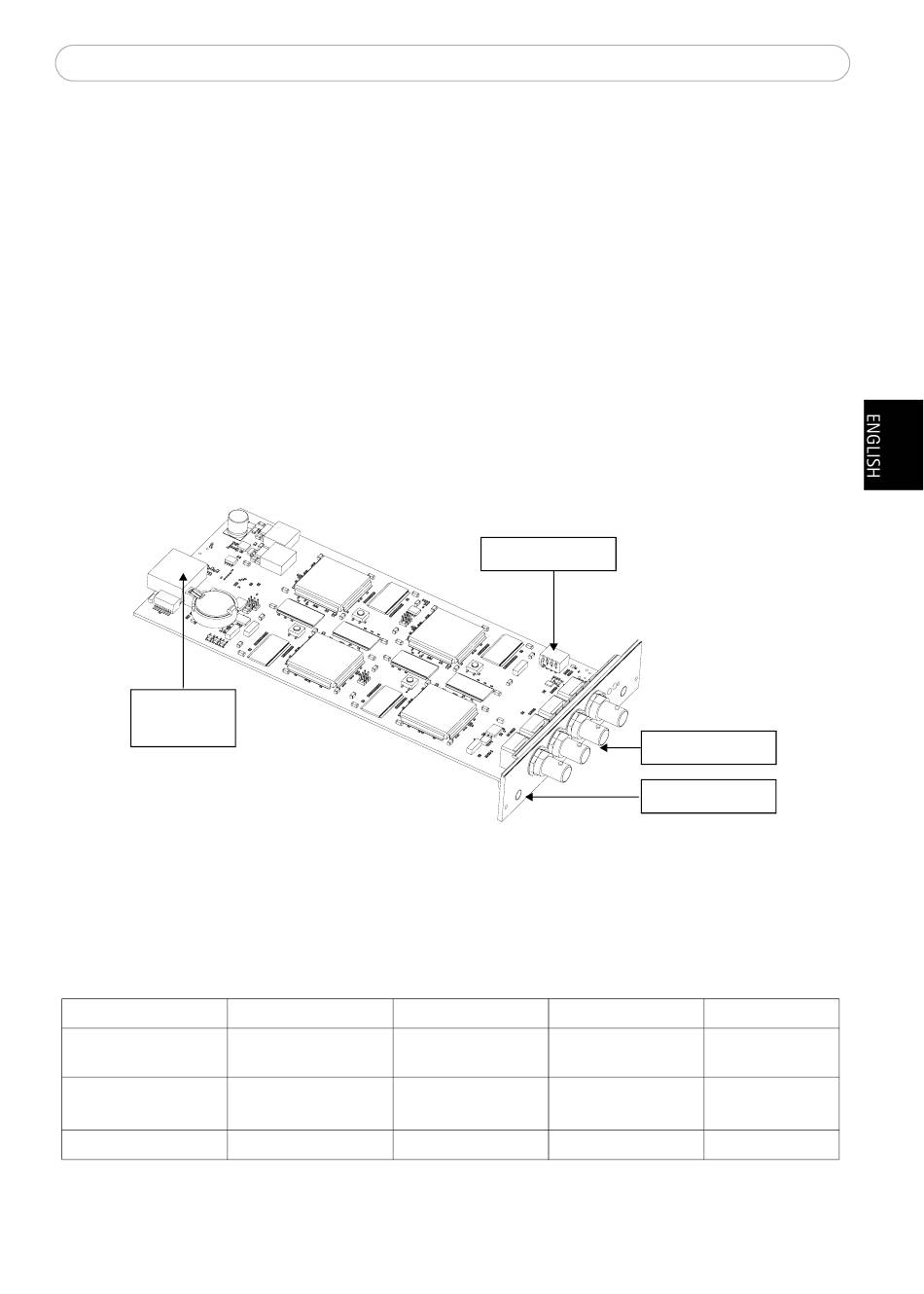

Bus
Connector
DIP Switches (1-port models) -
video. The type to use is determined by the DIP switch settings. 1-port AXIS blade video servers
are supplied configured for composite video input, as shown in the table below
.
Switch
Description
Composite video
input
Y/C video input
Axis Rack Mounted Video Server Solution
Each video input has a corresponding line termination
These models can accommodate either composite or Y/C
1
75 ohm video in 75 ohm video out
termination
on
on
DIP Switches
2
Connects video in
termination and video out
off
on
4 Video inputs
S/N & P/N label
3 4
Not used
on n/a
off n/a
