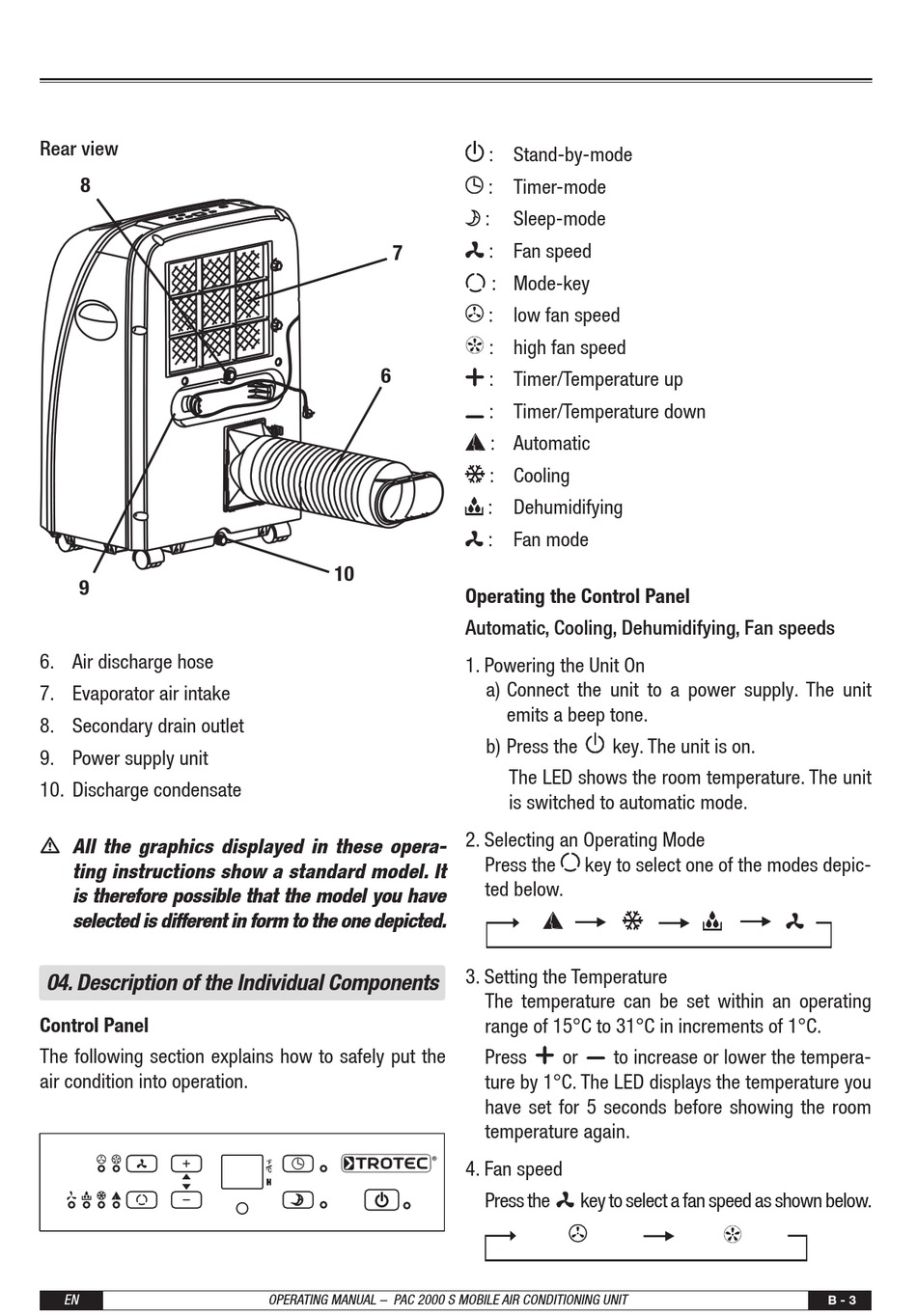

Rear view
8
9
6 . Air discharge hose
7 . Evaporator air intake
8 . Secondary drain outlet
9 . Power supply unit
10 . Discharge condensate
m All the graphics displayed in these opera-
ting instructions show a standard model. It
is therefore possible that the model you have
selected is different in form to the one depicted.
04. Description of the Individual Components

Control Panel

The following section explains how to safely put the
air condition into operation .
en
7
6
10
operating manual – pac 2000 s moBile air conditioning unit
: Stand-by-mode
: Timer-mode
: Sleep-mode
: Fan speed
: Mode-key
: low fan speed
: high fan speed
: Timer/Temperature up
: Timer/Temperature down
: Automatic
: Cooling
: Dehumidifying
: Fan mode
Operating the Control Panel
Automatic, Cooling, Dehumidifying, Fan speeds
1 . Powering the Unit On
a) Connect the unit to a power supply . The unit
emits a beep tone .
b) Press the key . The unit is on .
The LED shows the room temperature . The unit
is switched to automatic mode .
2 . Selecting an Operating Mode
Press the key to select one of the modes depic-
ted below .
3 . Setting the Temperature
The temperature can be set within an operating
range of 15°C to 31°C in increments of 1°C .
Press or to increase or lower the tempera-
ture by 1°C . The LED displays the temperature you
have set for 5 seconds before showing the room
temperature again .
4 . Fan speed
Press the key to select a fan speed as shown below .
B - 3
