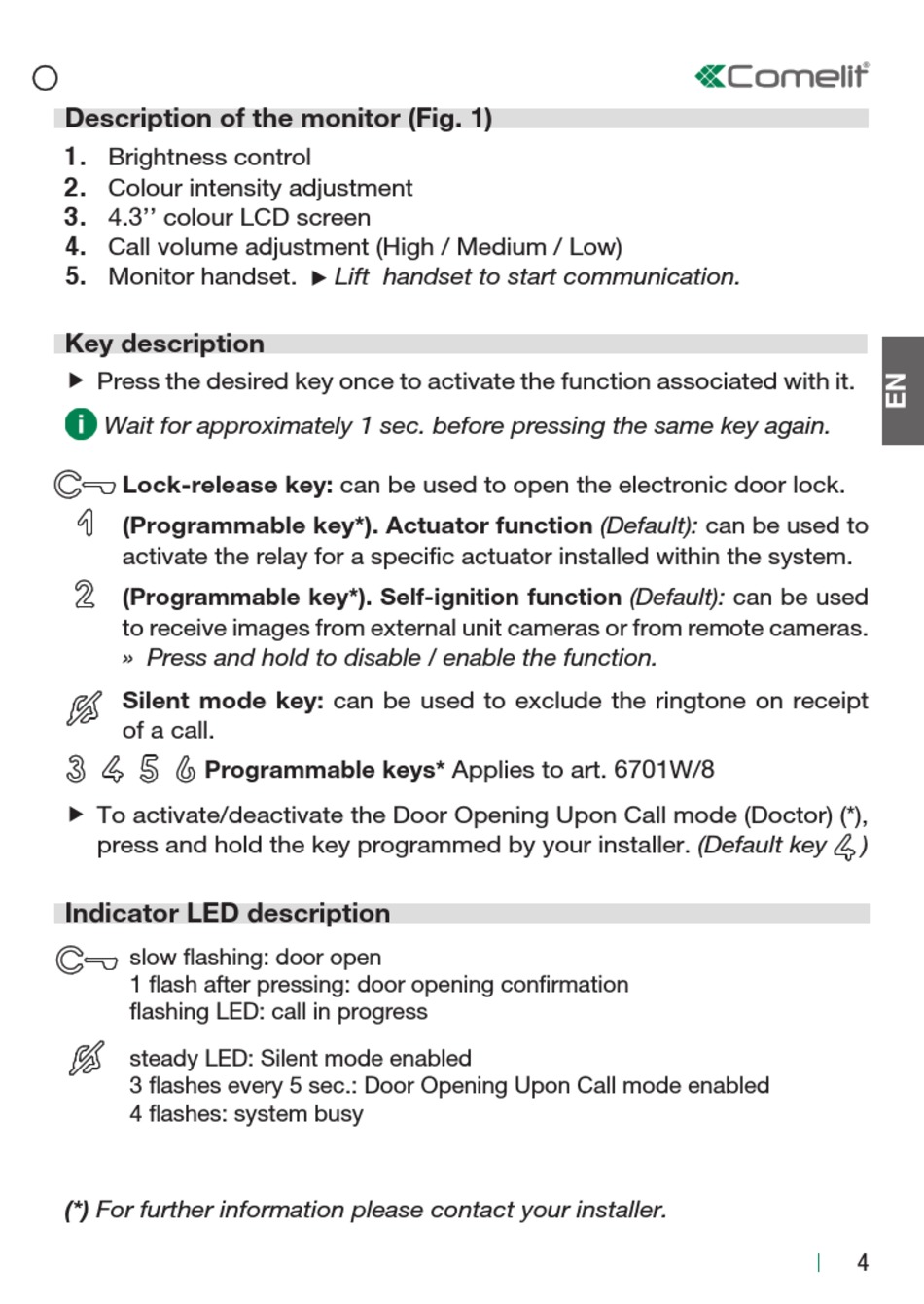

Description of the monitor (Fig. 1)
1. Brightness control
2. Colour intensity adjustment
3. 4.3'' colour LCD screen
4. Call volume adjustment (High / Medium / Low)
5. Monitor handset.

Key description

„ Press the desired key once to activate the function associated with it.
Wait for approximately 1 sec. before pressing the same key again.
Lock-release key: can be used to open the electronic door lock.
(Programmable key*). Actuator function (Default): can be used to
activate the relay for a specific actuator installed within the system.
(Programmable key*). Self-ignition function (Default): can be used
to receive images from external unit cameras or from remote cameras.
» Press and hold to disable / enable the function.
Silent mode key: can be used to exclude the ringtone on receipt
of a call.
Programmable keys* Applies to art. 6701W/8
„ To activate/deactivate the Door Opening Upon Call mode (Doctor) (*),
press and hold the key programmed by your installer. (Default key
Indicator LED description
slow flashing: door open
1 flash after pressing: door opening confirmation
flashing LED: call in progress
steady LED: Silent mode enabled
3 flashes every 5 sec.: Door Opening Upon Call mode enabled
4 flashes: system busy
(*) For further information please contact your installer.
Lift handset to start communication.
