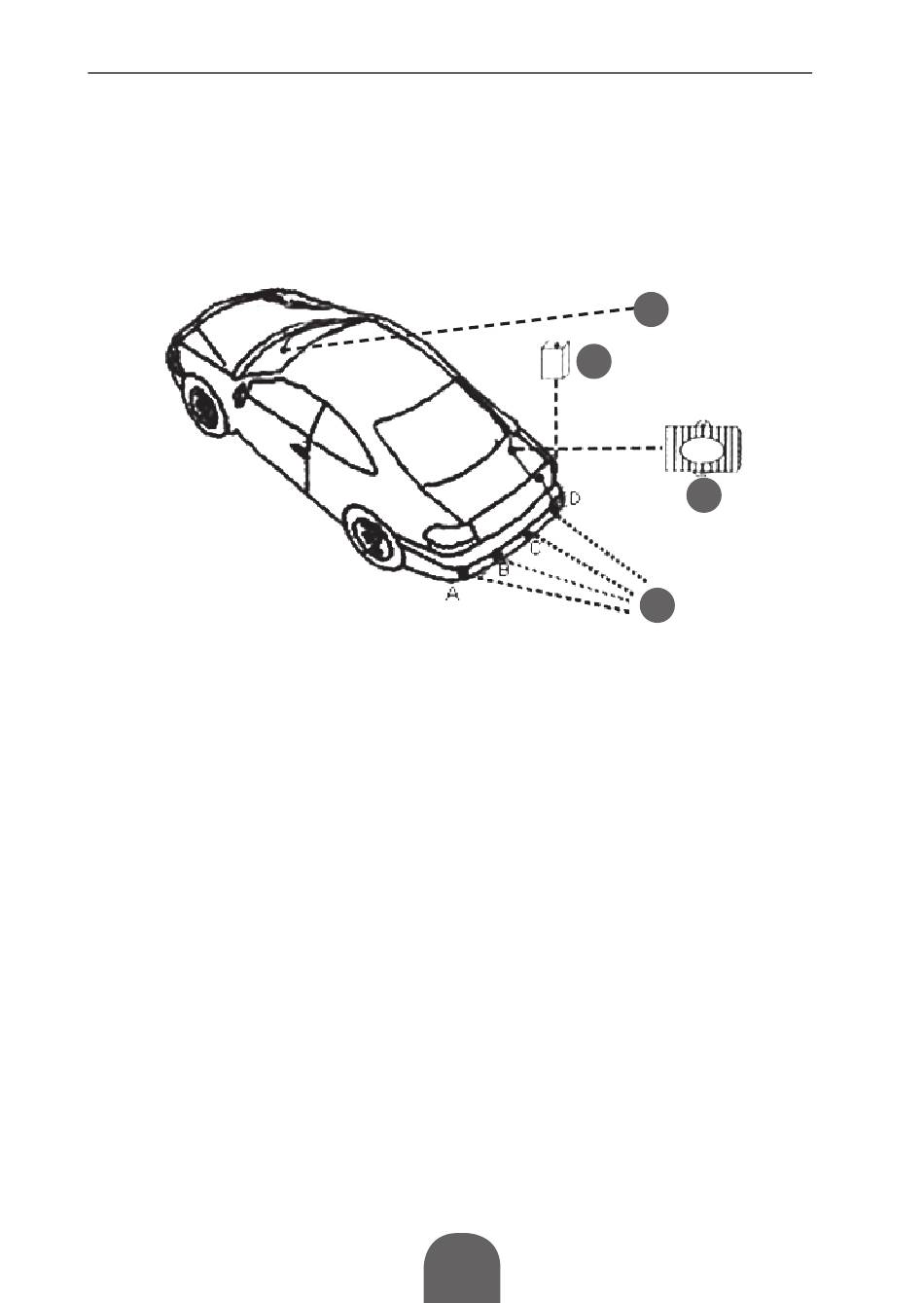

System installation
1. Display
2. Power supply
3. Control unit
4. Sensors
1. Install the sensors in the holes cut out with the use of the
included drill.
• After selecting a mounting spot, remove the panel if
possible, and tape off the area to be drilled with masking
tape in order to protect the surroundings.
• After drilling, carefully remove any burs or sharp edges
so you do not damage the cable when pulling it through.
• Carefully route the cables through the hole and insert
the sensors into the holes.
2. Connect the sensors and display's cables to appropriate
input sockets on the control unit.
NOTE: when connecting the sensors to the control unit, keep
in mind that sensors that will be located on the left side of the
vehicle must be connected to sockets marked as A and B; while
sensors that will be located on the right side of the vehicle
