Dear Customer,
Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following
hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the
instruction manual are not covered by our warranty and any liability.
Item number
Power supply
• Never attach the fan to a power point, but to the ceiling itself.
• The minimum distance between the blades of the fan and the floor must be 2.3 m. The minimum carrying
capacity of the hook from which the fan is hung must be 100 kg.
• Make sure to install all poles disconnection switch having a contact separation of at least 3mm between
poles in the supply wiring to the ceiling fan.
• Install only bulbs of the type intended for your fan.
• Switch off the power before connecting or repairing the fan.
• The fan must be properly grounded to avoid the risk of electric shocks.
• Never mount the fan in a moist or wet room.
• Be careful when working near the rotating blades.
• Always have your fan installed by someone who is knowledgeable about electrical wiring.
• This appliance is not intended for use by persons (including children) with reduced physical. Sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or inst-
ruction concerning use of the appliance by a person responsible for their safety. Page 1 of 3 Children should
be supervised to ensure that they do not play with the appliance.

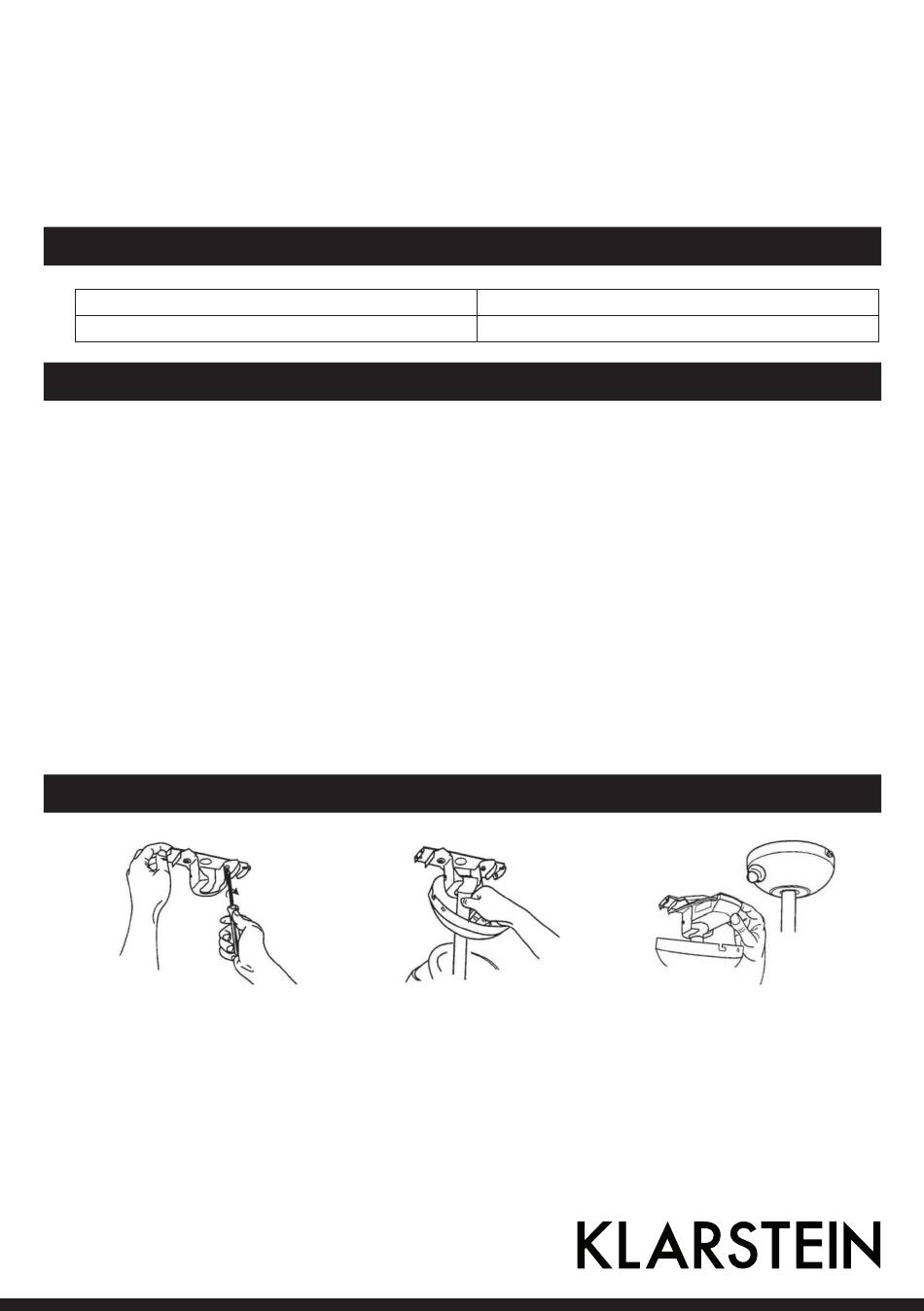

1. Secure the mounting plate
to a ceiling joist with two
screws, spring
and flat washers provided.
Ensure the support for the
mounting plate must be
capable of safely and se-
curely holding the moving
weight of the fan.
5

Technical Data

Safety Instructions

Mounting
2. Hang the fan assembly
onto the mounting plate.
washers The mounting plate has
a lug on it; this should be
lined up with the corre-
sponding groove on the
fan assembly ball joint.
10029345, 10029346
220-240 V~ 50-60 Hz
3. Insert the remote control
receiver between the brack-
et and the ball joint.
