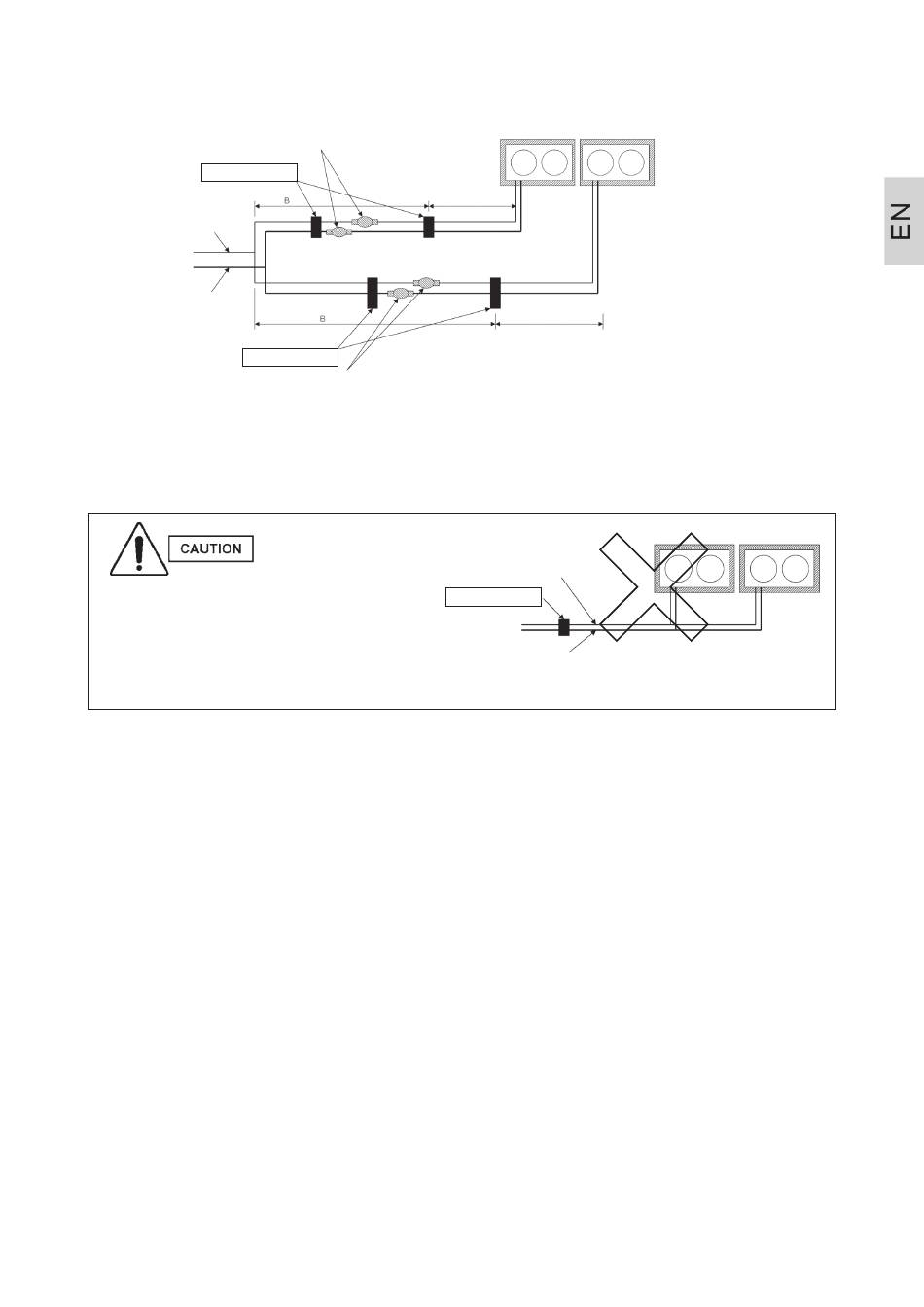

Ball valve (provided by installer)
SGP-BV710K (for 30 hp) (purchased separately)
SGP-BV355K (for 25/20 hp) (purchased separately)
SGP-BV450M (for 16 hp) (purchased separately)
Tubing anchor
Liquid tube (narrow)
Gas tube (wide)
Tubing anchor
Ball valve (provided by installer)
SGP-BV710K (for 30 hp) (purchased separately)
SGP-BV355K (for 25/20 hp) (purchased separately)
SGP-BV450M (for 16 hp) (purchased separately)
When using single-type vibration-
resistant frames, never install tubing in
the manner shown at the right. Doing so
puts excessive weight on the entire tubing
installation and may result tube damage.
(At least 1.5 m)
(At least 1.5 m)
Fig. 21-1
Liquid tube
Tubing anchor
Gas tube
EN - 23
Fig. 21-2
