STEINEL IR Quattro COM 1 Bedienungsanleitung Seite 13

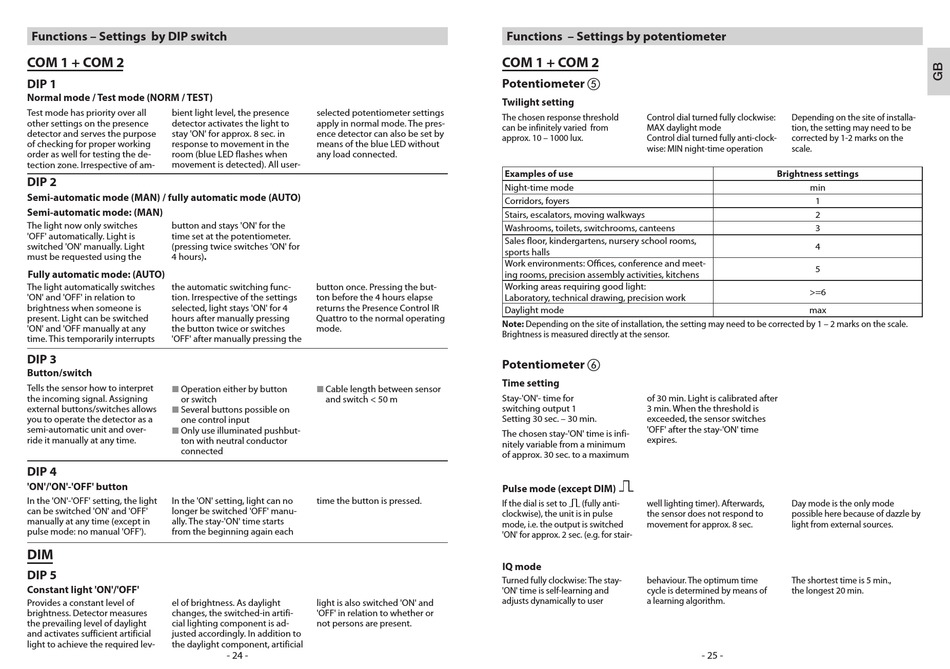

Functions – Settings by DIP switch
COM 1 + COM 2
DIP 1
Normal mode / Test mode (NORM / TEST)
Test mode has priority over all bient light level, the presence
other settings on the presence detector activates the light to
detector and serves the purpose stay 'ON' for approx. 8 sec. in
of checking for proper working response to movement in the
order as well for testing the de- room (blue LED flashes when
tection zone. Irrespective of am- movement is detected). All user-
DIP 2
Semi-automatic mode (MAN) / fully automatic mode (AUTO)
Semi-automatic mode: (MAN)
The light now only switches button and stays 'ON' for the
'OFF' automatically. Light is time set at the potentiometer.
switched 'ON' manually. Light (pressing twice switches 'ON' for
must be requested using the 4 hours).
Fully automatic mode: (AUTO)
The light automatically switches the automatic switching func-
'ON' and 'OFF' in relation to tion. Irrespective of the settings
selected, light stays 'ON' for 4
brightness when someone is
present. Light can be switched hours after manually pressing
'ON' and 'OFF manually at any the button twice or switches
time. This temporarily interrupts 'OFF' after manually pressing the
DIP 3
Button/switch
Tells the sensor how to interpret
Operation either by button
n
the incoming signal. Assigning
or switch
external buttons/switches allows Several buttons possible on
n
you to operate the detector as a
one control input
semi-automatic unit and over-
Only use illuminated pushbut-
n
ride it manually at any time.
ton with neutral conductor
connected
DIP 4
'ON'/'ON'-'OFF' button
In the 'ON'-'OFF' setting, the light In the 'ON' setting, light can no
can be switched 'ON' and 'OFF' longer be switched 'OFF' manu-
manually at any time (except in ally. The stay-'ON' time starts
pulse mode: no manual 'OFF'). from the beginning again each
DIM
DIP 5
Constant light 'ON'/'OFF'
Provides a constant level of el of brightness. As daylight
brightness. Detector measures changes, the switched-in artifi-
the prevailing level of daylight cial lighting component is ad-
and activates sufficient artificial justed accordingly. In addition to
light to achieve the required lev- the daylight component, artificial
selected potentiometer settings
apply in normal mode. The pres-
ence detector can also be set by
means of the blue LED without
any load connected.
button once. Pressing the but-
ton before the 4 hours elapse
returns the Presence Control IR
Quattro to the normal operating
mode.
Cable length between sensor
n
and switch < 50 m
time the button is pressed.
light is also switched 'ON' and
'OFF' in relation to whether or
not persons are present.
- 24 -
Functions – Settings by potentiometer
COM 1 + COM 2
Potentiometer e
Twilight setting
The chosen response threshold Control dial turned fully clockwise:
can be infinitely varied from MAX daylight mode
approx. 10 – 1000 lux. Control dial turned fully anti-clock-
wise: MIN night-time operation
Examples of use
Night-time mode
Corridors, foyers
Stairs, escalators, moving walkways
Washrooms, toilets, switchrooms, canteens
Sales floor, kindergartens, nursery school rooms,
sports halls
Work environments: Offices, conference and meet-
ing rooms, precision assembly activities, kitchens
Working areas requiring good light:
Laboratory, technical drawing, precision work
Daylight mode
Note: Depending on the site of installation, the setting may need to be corrected by 1 – 2 marks on the scale.
Brightness is measured directly at the sensor.
Potentiometer f
Time setting
Stay-'ON'- time for of 30 min. Light is calibrated after
switching output 1 3 min. When the threshold is
Setting 30 sec. – 30 min. exceeded, the sensor switches
'OFF' after the stay-'ON' time
The chosen stay-'ON' time is infi-
expires.
nitely variable from a minimum
of approx. 30 sec. to a maximum
Pulse mode (except DIM)
If the dial is set to (fully anti- well lighting timer). Afterwards,
clockwise), the unit is in pulse the sensor does not respond to
mode, i.e. the output is switched movement for approx. 8 sec.
'ON' for approx. 2 sec. (e.g. for stair-
IQ mode
Turned fully clockwise: The stay- behaviour. The optimum time
'ON' time is self-learning and cycle is determined by means of
adjusts dynamically to user a learning algorithm.
Depending on the site of installa-
tion, the setting may need to be
corrected by 1-2 marks on the
scale.
Brightness settings
min
1
2
3
4
5
>=6
max
Day mode is the only mode
possible here because of dazzle by
light from external sources.
The shortest time is 5 min.,
the longest 20 min.
- 25 -
