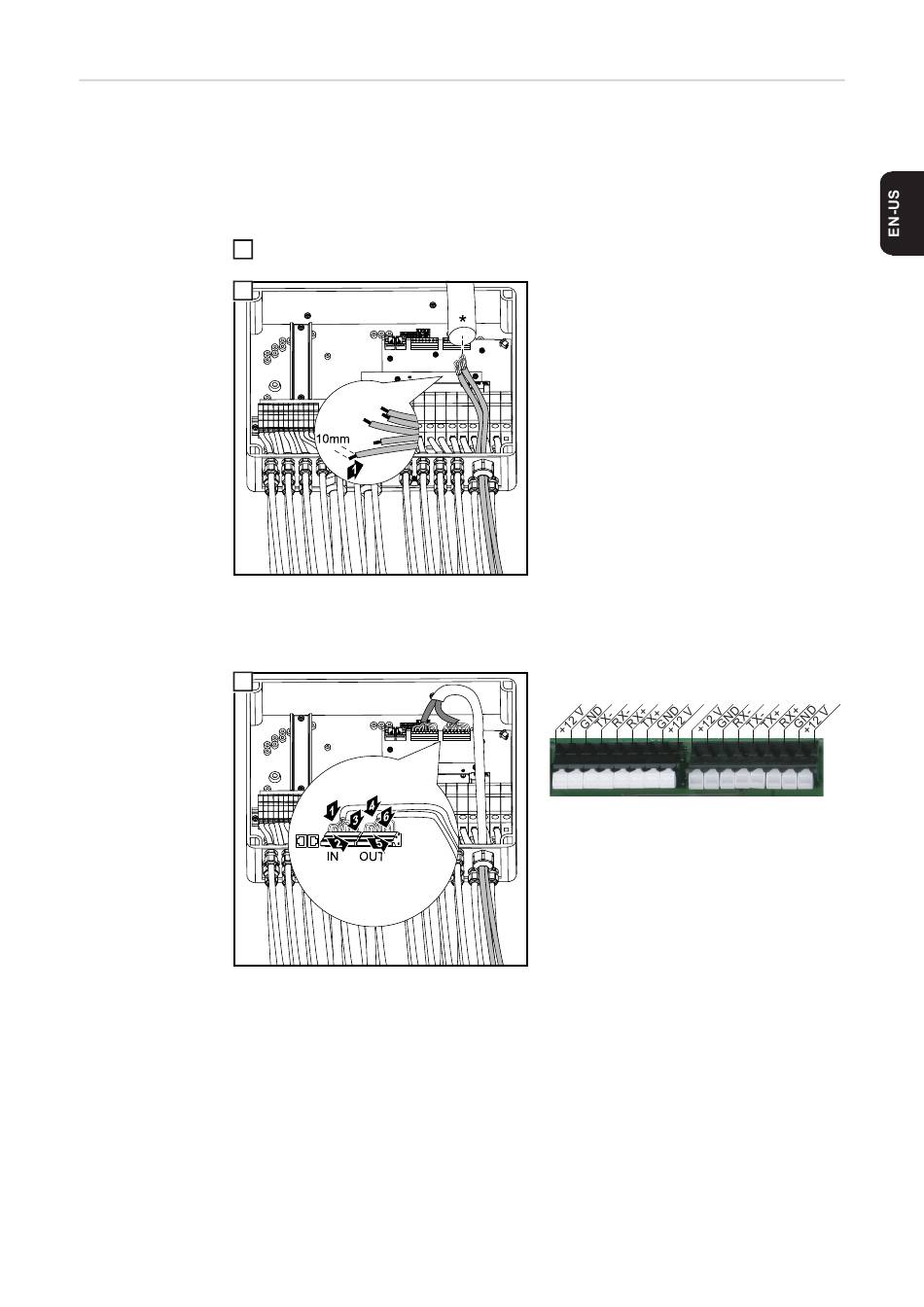

Connecting Multi- When using multi-core data communication cables with a diameter up to a max. of 6 mm,
core Data Com- both cables are fed through the rubber insert and through the opening intended for this pur-
munication Ca- pose like with the RJ 45 cable.
bles to the
Fronius String The following work steps are for data communication cables with a maximum diameter of
Control 100/12 up to 6 mm.
1
2
IMPORTANT! You must know the assignment of each individual wire when connecting the
wires to the terminals.
3
Strip approx. 50 - 70 mm of insulation from the end of the data communication cable
* Silicone tube Ø 25 x 510 mm
Terminal assignments:
IN OUT
