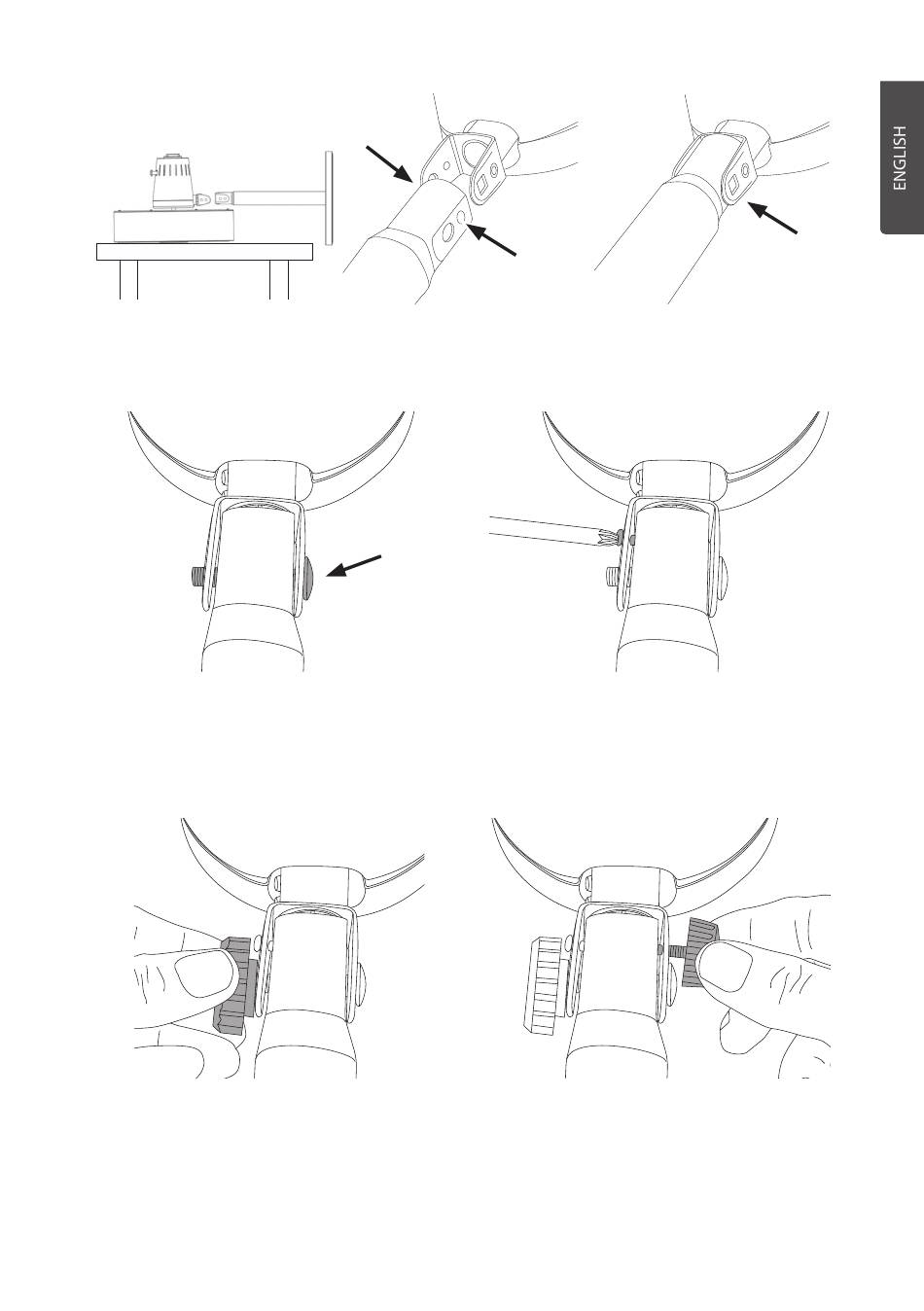

2. Lay the fan head on
a flat surface.
4. Push the mounting bolt (10) through
the bracket and support.
6. Screw the lock nut (4) onto the mounting
bolt and tighten. Tighten the nut just enough
that the fan head can still be tilted.
Open slot
Depression
3. Push the end of the support into the bracket on the fan
head. Make sure that is support is facing the right way.
The side with the depression should be on the side of
the bracket with the square hole.
5. Hold the support in line with the bracket
7. Screw in the knob (9) for locking the fan
5
and screw the fan head angle locking
screw (3) all the way in. The screw
should protrude into the opening in
the support and limit the tilt angle.
head angle. Set the desired tilt angle and
then tighten.
