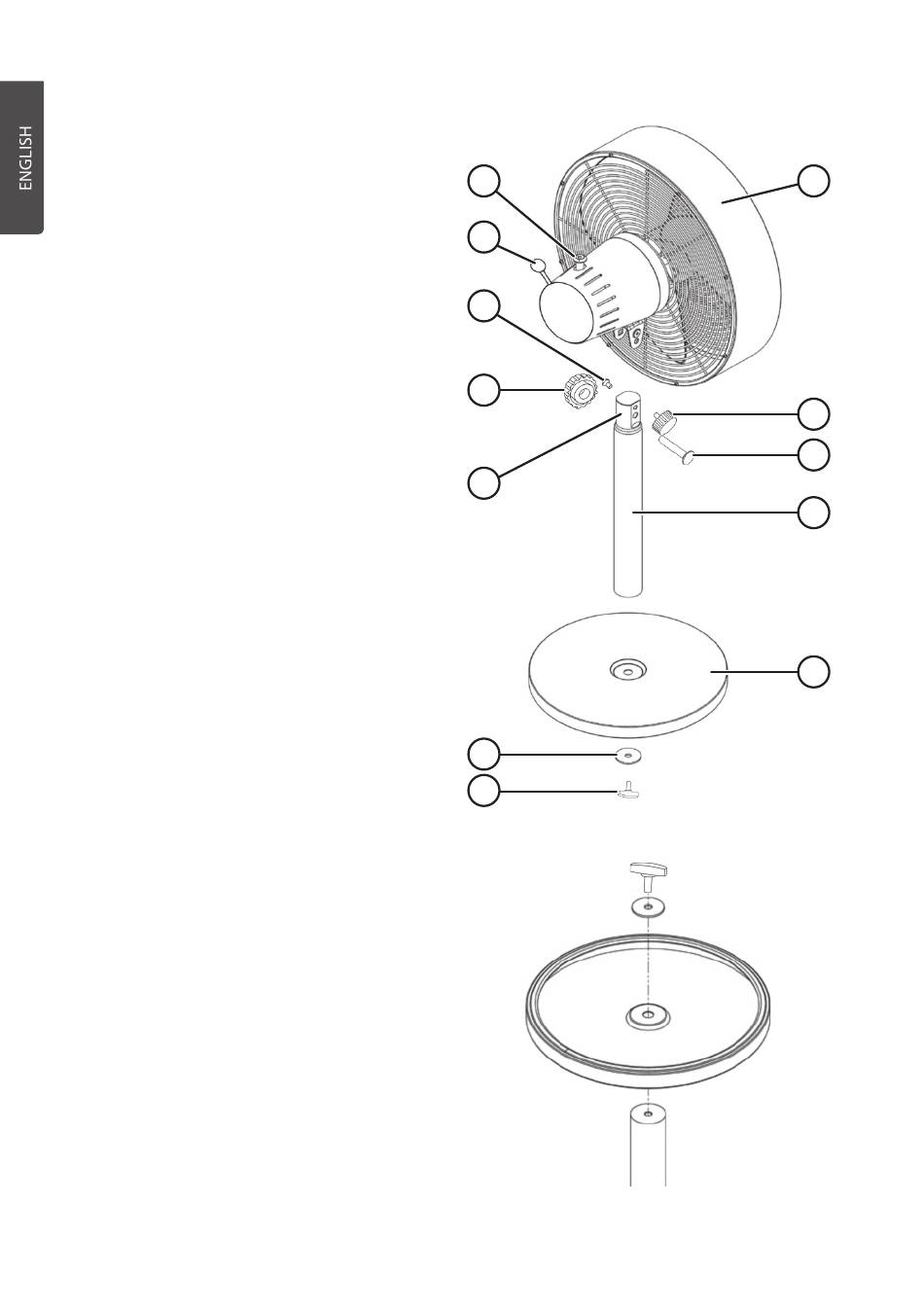

Product description

1. Control for turning the oscillation function on/off
2. Control for selecting fan speed l, ll, lll or off
3. Locking screw for fan head angle
4. Lock nut for mounting bolt
5. Mount for fan head
6. Washer
7. Wing screw
8. Fan head
9. Knob for locking fan head angle
10. Fan head mounting bolt
11. Support
12. Base plate
Assembly
1. Attach the base plate to the support using
the washer (6) and the wing screw (7).
