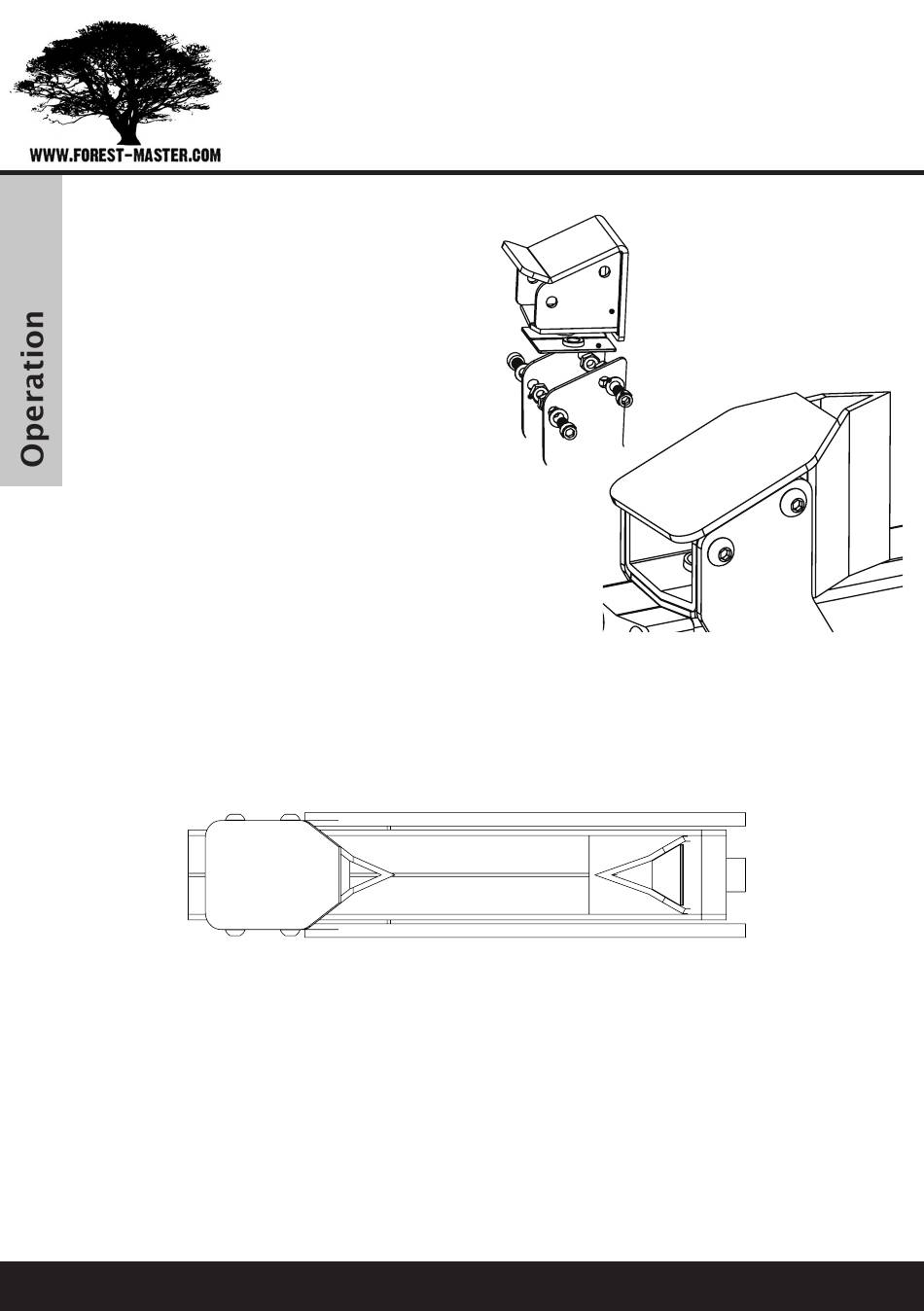

FITTING THE DUOCUT BLADE
(FM8(R))
To fit the Duocut blade,
remove the four bolts holding
the pusher block in place (an
open ended spanner is best for
turning the nuts) and remove
the pusher block from the
cradle.
Remove the plastic insert from
the bottom of the pusher block
and attach to the bottom of the
Duocut blade.
Fit the Duocut blade into the
cradle and secure with the four
bolts.
CHECKING THE ALIGNMENT (FM8(R/D/T) & FM10(R/D/T))
Before splitting any logs, the alignment of the Duocut blade
should be checked and adjusted if necessary. The Duocut blade
should point along the centreline of the splitter bed and align
with the edge of the fixed blade.
