NOTE -It is recommended that the outlet is mounted above the
water line and anti-syphon loops are fitted where applicable- see
typical installation (Fig. 1)
• When mounting, position the pump on surface and work out the best angles for the hose (to
prevent kinking) and mark the 3 hole positions using the pump feet.

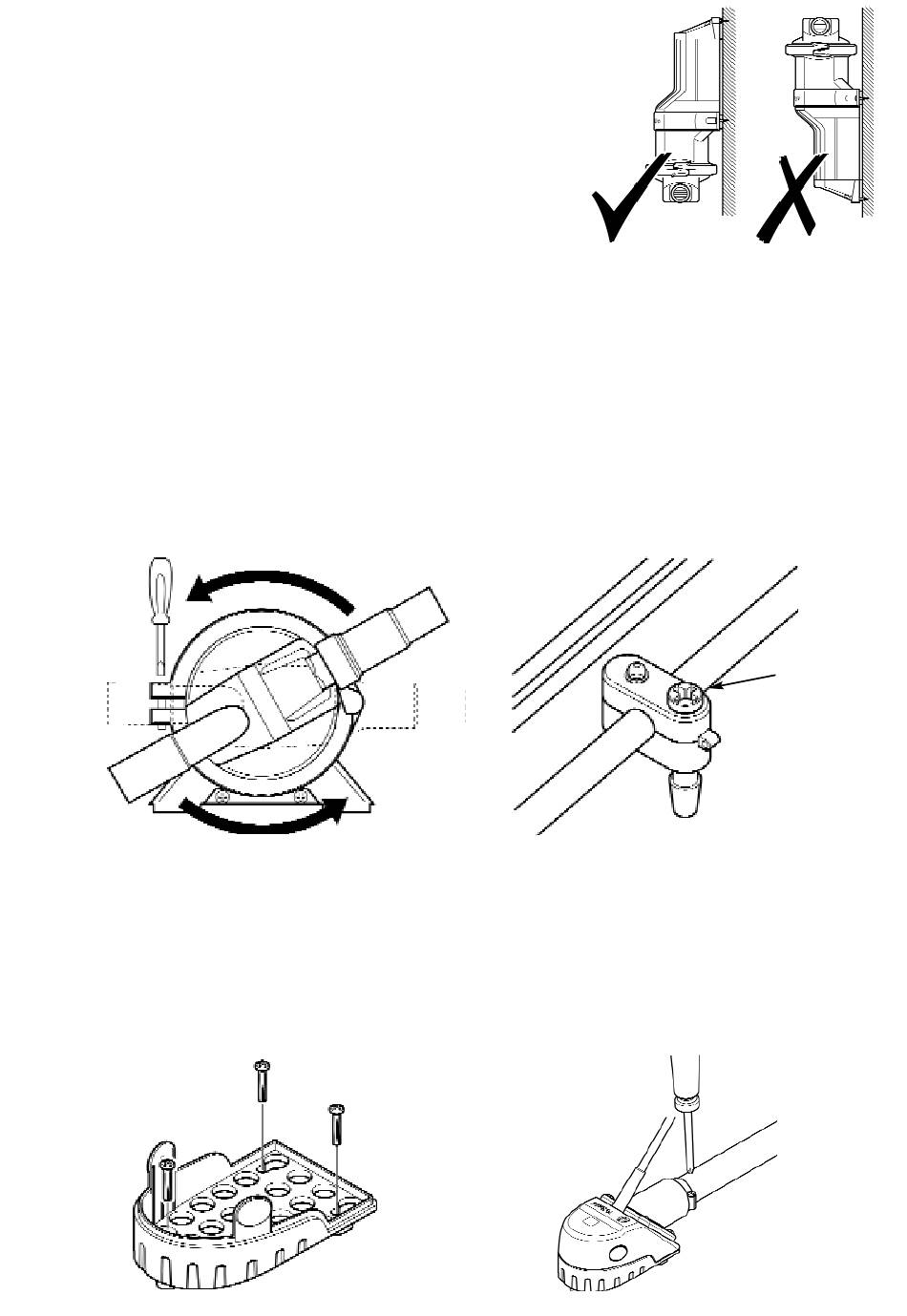

• NOTE: The pump head may be rotated to suit the hose connections. Loosen the screw, adjust
and ensure diaphragm remains in place. Reposition the head to the required position (fig 3)
and tighten the screw
• Drill pilot holes of 3.2mm (1/8").
NOTE: Do not drill through hull, ensure that pump is mounted to additional board or bulkhead.
• Use the three No.8 self tappers and washers (included) to secure the pump.
• Use 19mm (3/4") or 25mm (1") smooth bore reinforced hose to connect to the pump with
hose clips.
NOTE: Barbed connections mean no need to cut inlets or outlets to size.
NOTE: Ensure tight connections, but do not over-tighten clamp rings/ screws/hose clips
Fig 3 - Gulper® Installation
• Screw p clamp to bulkhead ensuring it is located Approx. 100 mm (4") from rear housing (Fig
4).
NOTE: In order to securely fasten the unit, ensure that the p clamp mounting surface is at least
19mm (3/4") minimum thickness.
11.iii Mounting Instructions - Strainer IC
• Mount in a position with the shortest pipe run lengths.
Fig 5 Connect Strainer IC to bulkhead
Fig. 2 - Pump Orientation
Fig 4 - Fit P clamp
Fig 6 Attaching jubilee clips
P Clamp
