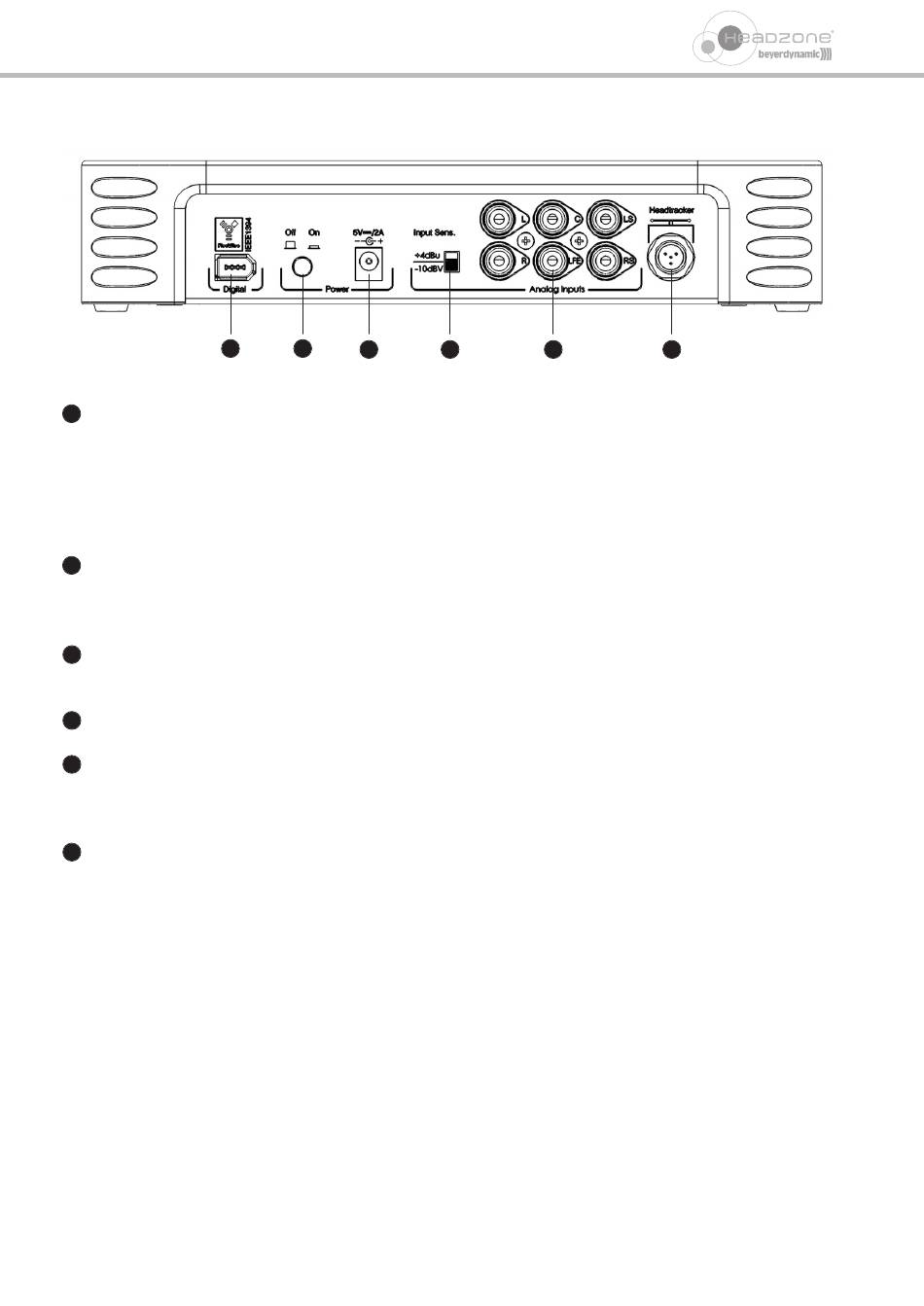

Rear
8
Digital audio input (IEEE1394), 6-pin Firewire connection
8
The digital audio input is used as input for 6 digital audio streams with a sample rate of up to 96 kHz.
Please use an appropriate adapter for connection to a 4-pin Firewire port (e.g. on notebooks) or
an 8-pin Firewire Port (IEEE 1394-B Standard) .
Note:
No power supply is supported by Headzone
power pack supplied by beyerdynamic.
Power switch
9
Use it to switch the base station on and off. Please connect the power pack first before switching
on the device. Switch off the device first before disconnecting the power pack from the device or
mains supply.
Connection for plug-in power pack, 5 V DC
10
Attention: please only use the power pack supplied. Do not connect any power pack other than
that supplied by beyerdynamic as the base station may be damaged.
Input sensitivity switch for setting the input sensitivity of analogue audio inputs (RCA)
11
to -10 dBV or +4 dBU
Analogue audio inputs, unbalanced, RCA
12
- use these inputs to supply analogue 5.1 surround signals.
- use the input sensitivity switch to adjust Headzone
device.
Connection for the Headtracker receiver rail "Headzone
13
Important: the ultrasound exciter on the DT 770 PRO HT or DT 880 PRO HT headphones and
Headtracker receiver rail must always be in sight of one another! Obstructions such as plants
cause interruptions.
9 10 11
® via Firewire1394. Headzone
- 11 -
12
® can only be fed by the
® to the output level of your 5.1 playback
® Rail".
13
