Installation

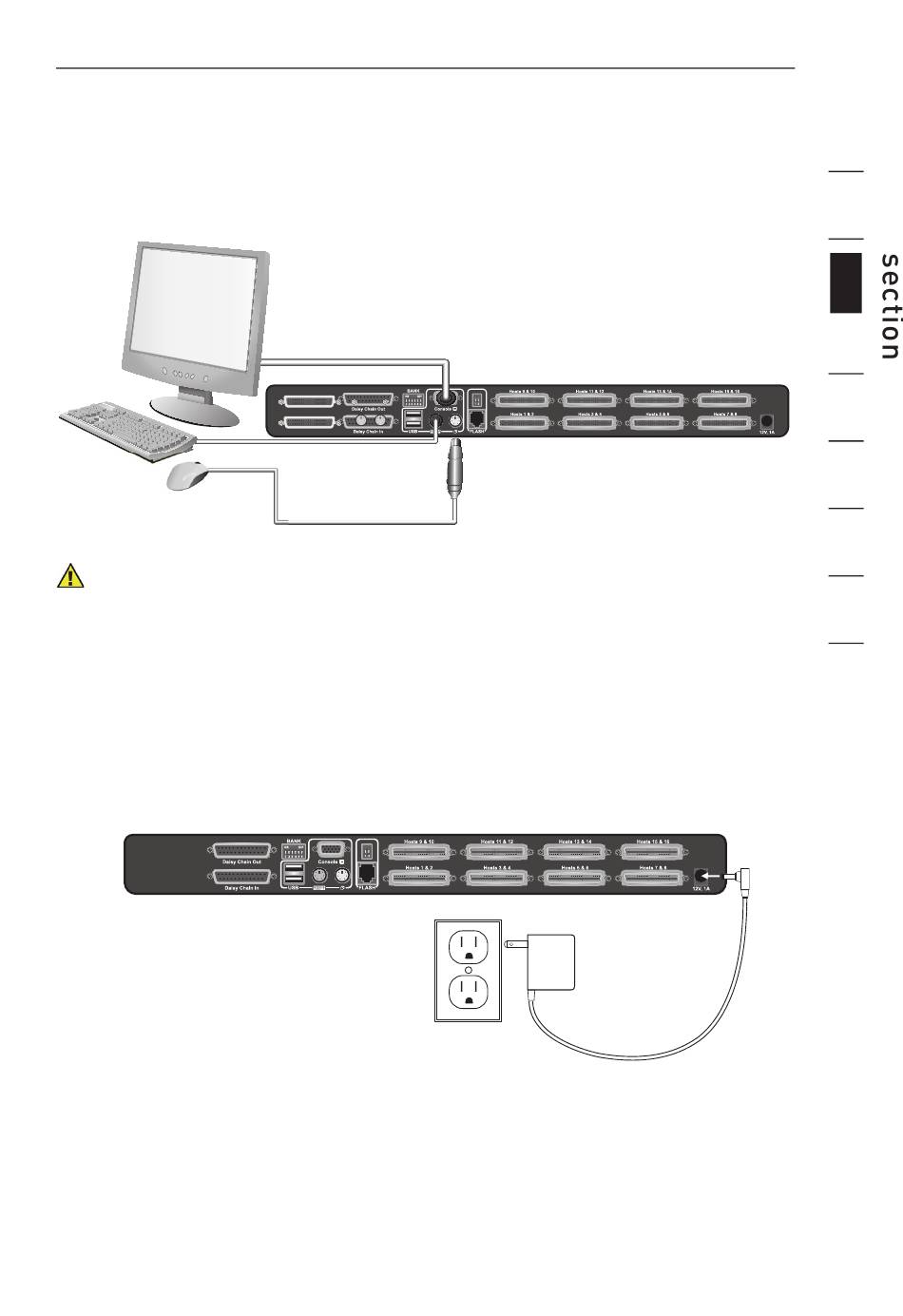

Step 3
Connect the PS/2 or USB mouse cable to the mouse port on the back of the
PRO3 KVM Switch in the "Console" section. (Refer to diagram below.)
Note: Either use all USB input devices or all PS/2 input devices
when connecting to the console. Using a combination of USB and PS/2
input devices will result in a 2-second delay between operation of each
input device.
Step 4
Attach the power adapter to the DC power jack labeled "12VDC, 1A" located on
the rear panel of the PRO3 KVM Switch. Only use the power adapter supplied
with the unit. (Refer to diagram below.)
Your PRO3 KVM Switch is now installed and you are ready to connect
your servers.
