HOW TO USE THE MACHINE
When the grass-catcher is full an audible
warning is given. STOP FORWARD
MOVEMENT, in order not to block the col-
lector channel, and disengage the blades,
which will stop the audible signal.

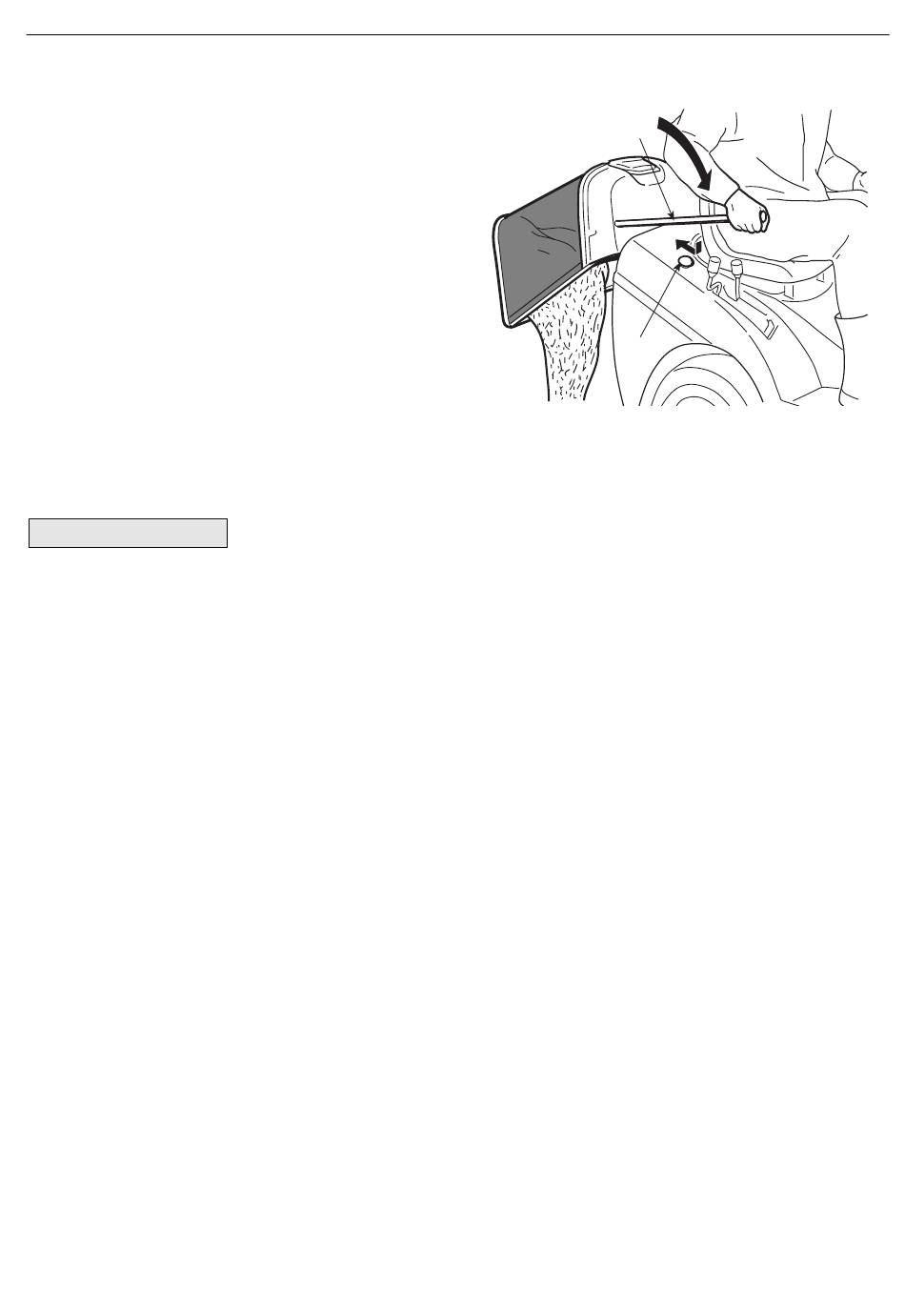

To empty the grass-catcher,
– press the button (1) which releases the
emptying system, and bring the button
back so that it is held down;
– pull out the lever (2) and lift the grass-
catcher.
To ensure that the grass-catcher hooks
properly into position it is necessary to release the button before returning the
grass-catcher into the work position.
NOTE
are engaged even when the grass-catcher has been emptied. This is due to
grass cuttings left on the sensor of the micro-switch. To stop the signal, disen-
gage the blades and then immediately engage them again.
Summary of the conditions whereby the safety devices permit or stop work
The safety devices work in two ways:
– by preventing the engine from starting if all the safety requirements have not
been met;
– stopping the engine if even just one of the safety requirements is lacking.
To start the engine it will be necessary that:
– the transmission is in "neutral";
– the blades are not engaged;
– the operator is seated or the parking brake is engaged.
The engine stops when:
– the operator leaves his seat when the blades are engaged;
– the operator leaves his seat when the transmission is not in "neutral";
– the operator leaves his seat with the transmission in "neutral" but without enga-
ging the parking brake;
– the grass-catcher is lifted or the stone-guard is removed when the blades are
engaged
The table below shows various operating conditions, highlighting why the safety
device shuts down the engine.
At times the audible warning may be heard when the blades
2
1
eng 23
