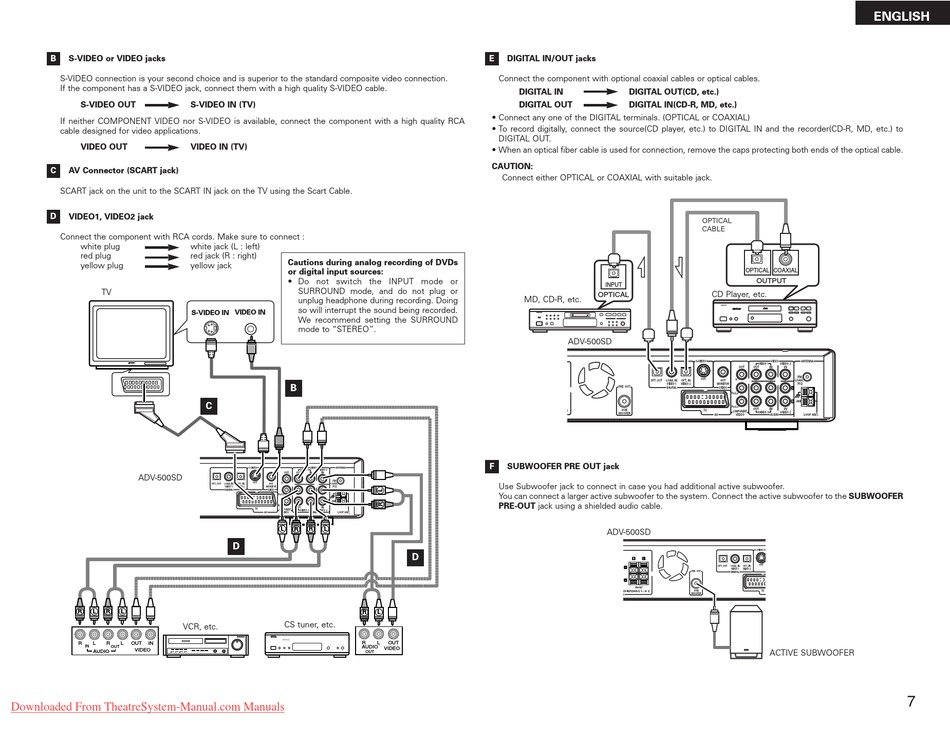

B S-VIDEO or VIDEO jacks
S-VIDEO connection is your second choice and is superior to the standard composite video connection.
If the component has a S-VIDEO jack, connect them with a high quality S-VIDEO cable.
S-VIDEO OUT
If neither COMPONENT VIDEO nor S-VIDEO is available, connect the component with a high quality RCA
cable designed for video applications.
VIDEO OUT
C AV Connector (SCART jack)
SCART jack on the unit to the SCART IN jack on the TV using the Scart Cable.
D VIDEO1, VIDEO2 jack
Connect the component with RCA cords. Make sure to connect :
white plug
red plug
yellow plug
TV
ADV-500SD
R L R L
VCR, etc.
R L R L OUT IN
IN OUT
VIDEO
AUDIO
Downloaded From TheatreSystem-Manual.com Manuals
S-VIDEO IN (TV)
VIDEO IN (TV)
white jack (L : left)
red jack (R : right)
Cautions during analog recording of DVDs
yellow jack
or digital input sources:
• Do not switch the INPUT mode or
SURROUND mode, and do not plug or
unplug headphone during recording. Doing
so will interrupt the sound being recorded.
S-VIDEO IN VIDEO IN
We recommend setting the SURROUND
mode to "STEREO".
B
C
L L R R R R L L
D
R
CS tuner, etc.
B
R
AUDIO
OUT
E DIGITAL IN/OUT jacks
Connect the component with optional coaxial cables or optical cables.
DIGITAL IN
DIGITAL OUT
• Connect any one of the DIGITAL terminals. (OPTICAL or COAXIAL)
• To record digitally, connect the source(CD player, etc.) to DIGITAL IN and the recorder(CD-R, MD, etc.) to
DIGITAL OUT.
• When an optical fiber cable is used for connection, remove the caps protecting both ends of the optical cable.
CAUTION:
Connect either OPTICAL or COAXIAL with suitable jack.
MD, CD-R, etc.
B
F SUBWOOFER PRE OUT jack
Use Subwoofer jack to connect in case you had additional active subwoofer.
You can connect a larger active subwoofer to the system. Connect the active subwoofer to the SUBWOOFER
PRE-OUT jack using a shielded audio cable.
D
L
L OUT
VIDEO
DIGITAL OUT(CD, etc.)
DIGITAL IN(CD-R, MD, etc.)
OPTICAL
CABLE
OPTICAL COAXIAL
INPUT
CD Player, etc.
OPTICAL
ADV-500SD
ADV-500SD
ENGLISH
OUTPUT
DIGITAL AUDIO DIGITAL AUDIO
ACTIVE SUBWOOFER
