AW C22E-C42E

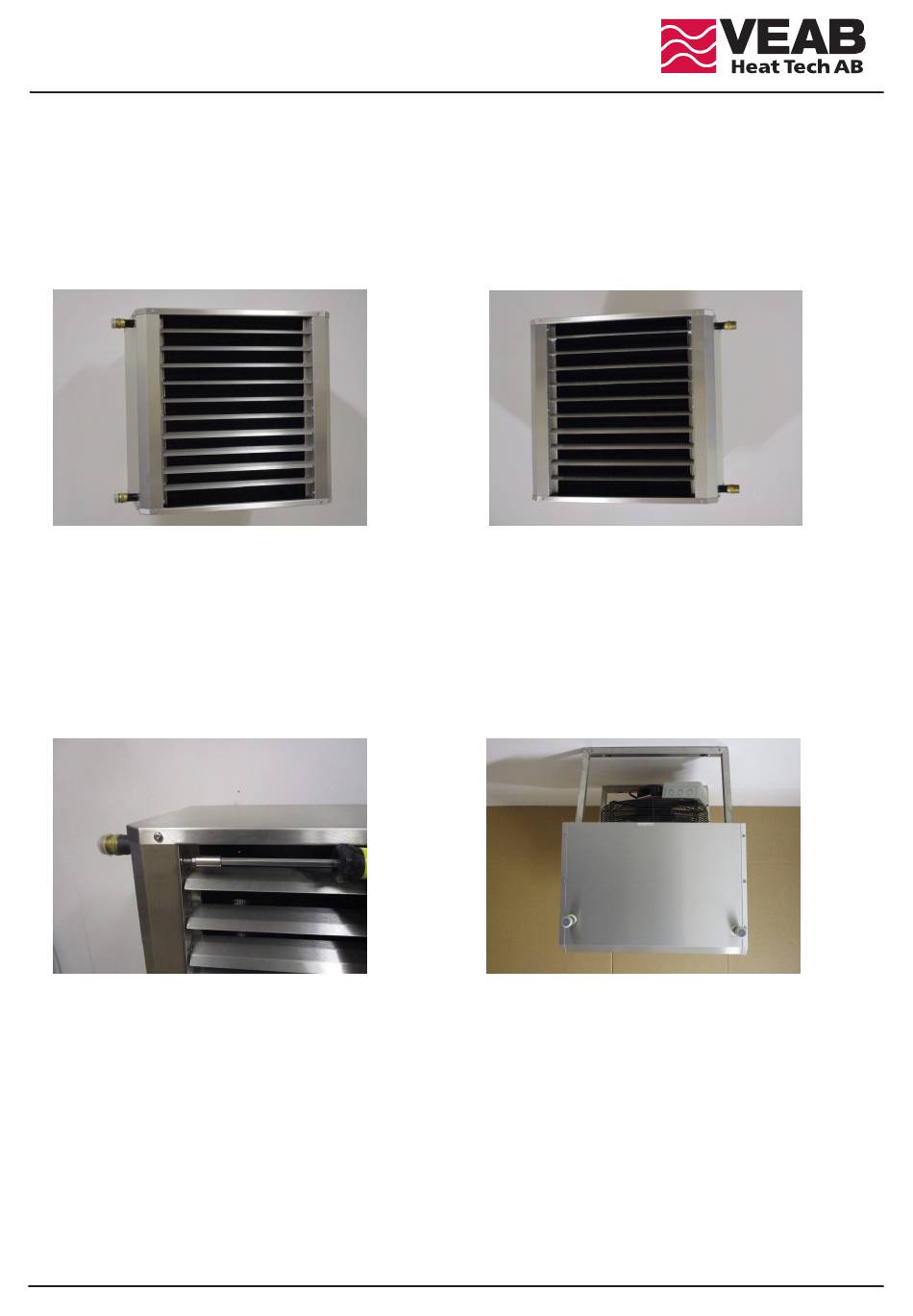

4. The fan heater can be fitted with the connection pipes left or right from the front as shown in Figures 5 and 6.
In rooms with high ceilings the heating fan should be mounted low, but without interfering with the working environme-
nt. For a drill template for the fan heater's wall console with minimum distance to wall and ceiling, see appendix B.
Check that the wall structure meets the load of the fan heater's weight.
Figure 5
5. The heating fans are supplied with the air inlet mounted for assembly as shown in Figure 5.
If the fan heater is fitted with the pipes to the right, the air inlet must be turned if the air is to be directed downwards.
Loosen the six screws (Torx 20 head) that hold the air inlet as shown in Figure 7, remove the air inlet and turn it half a turn.
Then tighten it again.
Figure 7
6. When installing in the ceiling for vertical airflow, the fan heater is mounted as shown in Figure 8. Minimum distance to wall
should be 700 mm. If the heater is mounted in a ceiling near a wall corner, the minimum distance to one wall should be
700 mm and at least 2000 mm to the other wall. Check that the roof structure meets the load of the fan heater's weight.
Figure 6
Figure 8
