Contractor ECO-80P Bedienungsanleitung Seite 48

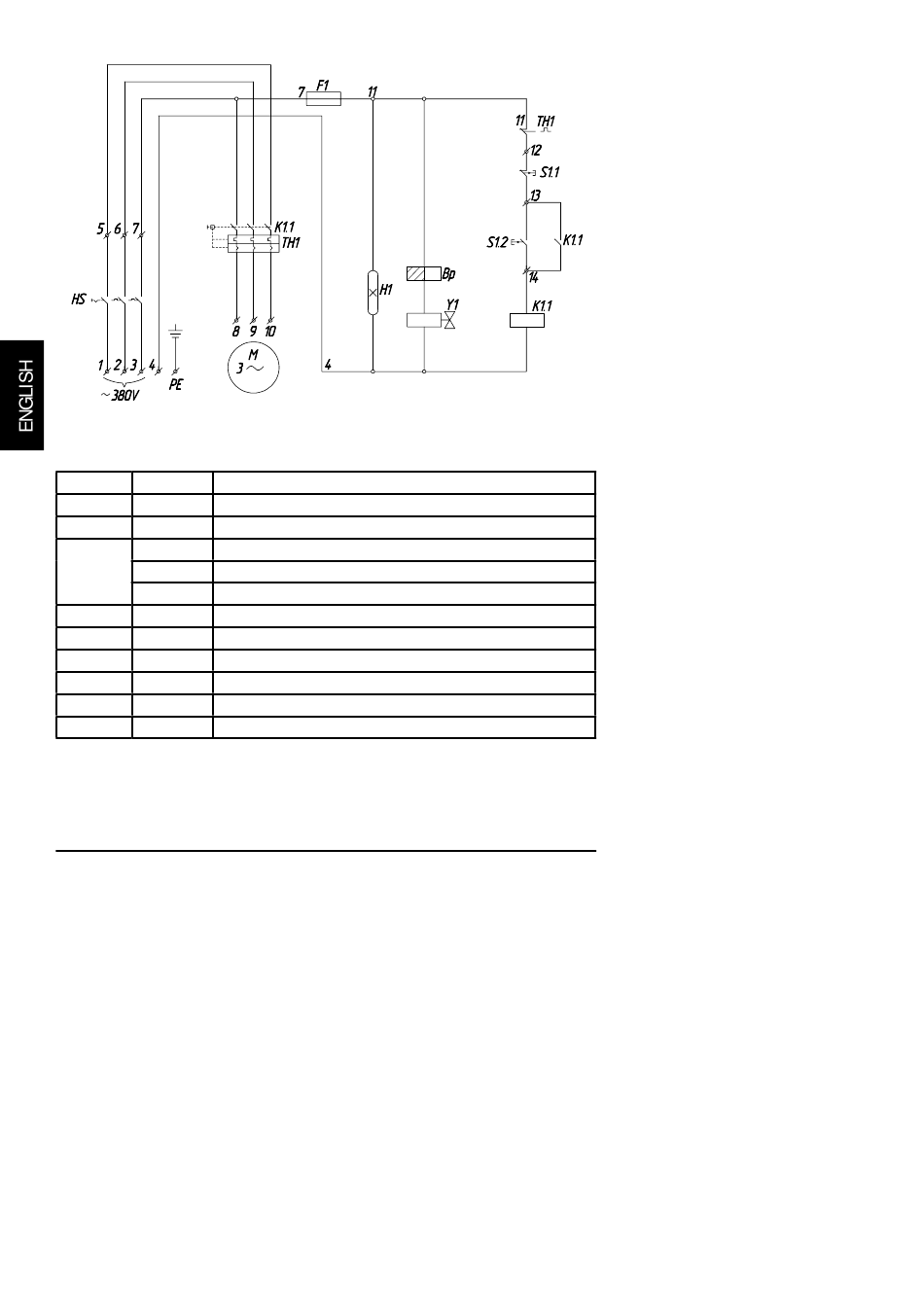

Picture 22. Electric circuit diagram special model
ECO-80PF/ 100PF/ / 120PF/ 140PF/ ECO-80PL/ 100PL/ / 120PL/ 140PL
Pos. No Order code Description
S1 16099 Double pushbuttons ON / OFF
HS 16100 Main switch 0-I
17535 Electric motor 0,37 kW (for DC-370)
M 16124 Electric motor 0,55 kW (for DC-550)
16125 Electric motor 0,75 kW (for DC-750)
K1.1 16104 Contactor 3-poles
H1 16121 Light assembly 2x30 Watt
Bp 16106 Electronic timer for pulse-jet valve
Y1 15974 Diaphragm pulse valve 3/ 4", 220 V~
TH1 16105 Thermal relay
F1 16133 Fuze
48 CONTRACOR ® Version 2.3
