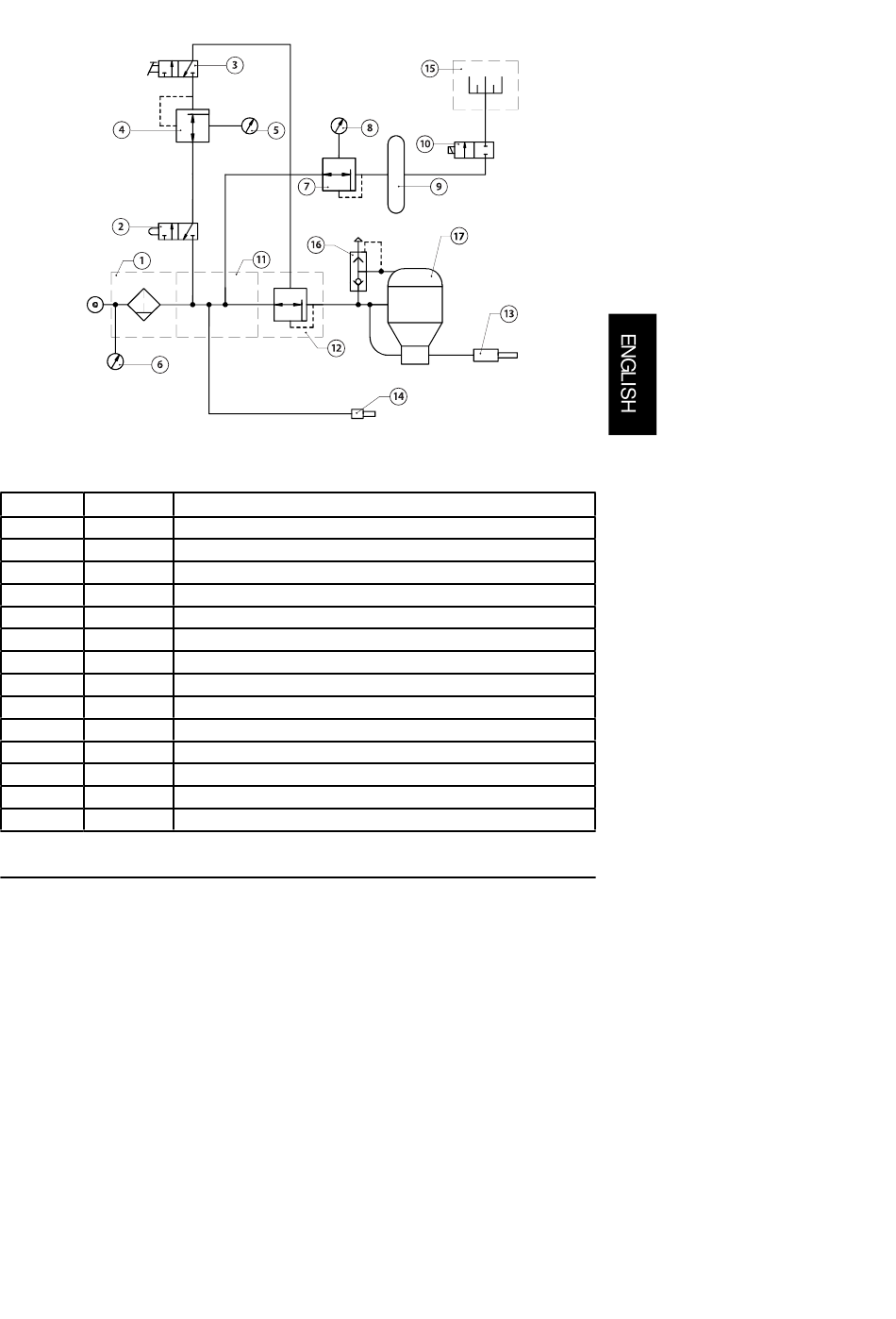

Picture 20. Pneumatic circuit diagram special model
ECO-80PF/ 100PF/ / 120PF/ 140PF/ ECO-80PL/ 100PL/ / 120PL/ 140PL
Pos. No Order code
1 15904
2 15930
3 15931
4 15932
5 15934
6 30404
7 15932
8 24407
9 15816
10 15974
11 16017
12 15909
13 12551
14 15901
CONTRACOR ® ECO-series pressure blast cabinets
Description
Airline Filter 1/ 2", manual drain
Door interlock 1/ 8"
Pneumatic foot pedal
Pressure regulator, 1/ 4"
Panel mounting pressure gauge 1/ 8"
Pressure gauge 1/ 8" (rubber cover)
Pressure regulator, 1/ 4"
Pressure gauge 1/ 4" (rubber cover)
Pulse-jet cleaning manifold
Diaphragm pulse-jet valve 3/ 4"
Pneumatic Àtting 1/ 4" x 6mm, 2xOut
Pressure regulator 1", pilot operated
NTC-5.0, Short Venturi nozzle, tungsten carbide, 5.0 mm x 45 mm
Air blow-off nozzle, rubber
