• Select a location where the device is protected against extreme heat (see "Technical
Specifications"), dust and moisture. Respect a minimum distance of 0.5m between the device's
light output and any illuminated surface.
• Use an appropriate safety cable to fix the device (e.g. VDLSC8).
• Familiarise yourself with the functions of the device before actually using it. Do not allow
operation by unqualified people. Any damage that may occur will most probably be due to
unprofessional use of the device.
• Use the original packaging if the device is to be transported.
• All modifications of the device are forbidden for safety reasons.
• Only use the device for its intended purpose. All other uses may lead to short circuits, burns,
electroshocks, crash, etc. Using the device in an unauthorised way will void the warranty.
4.

Installation

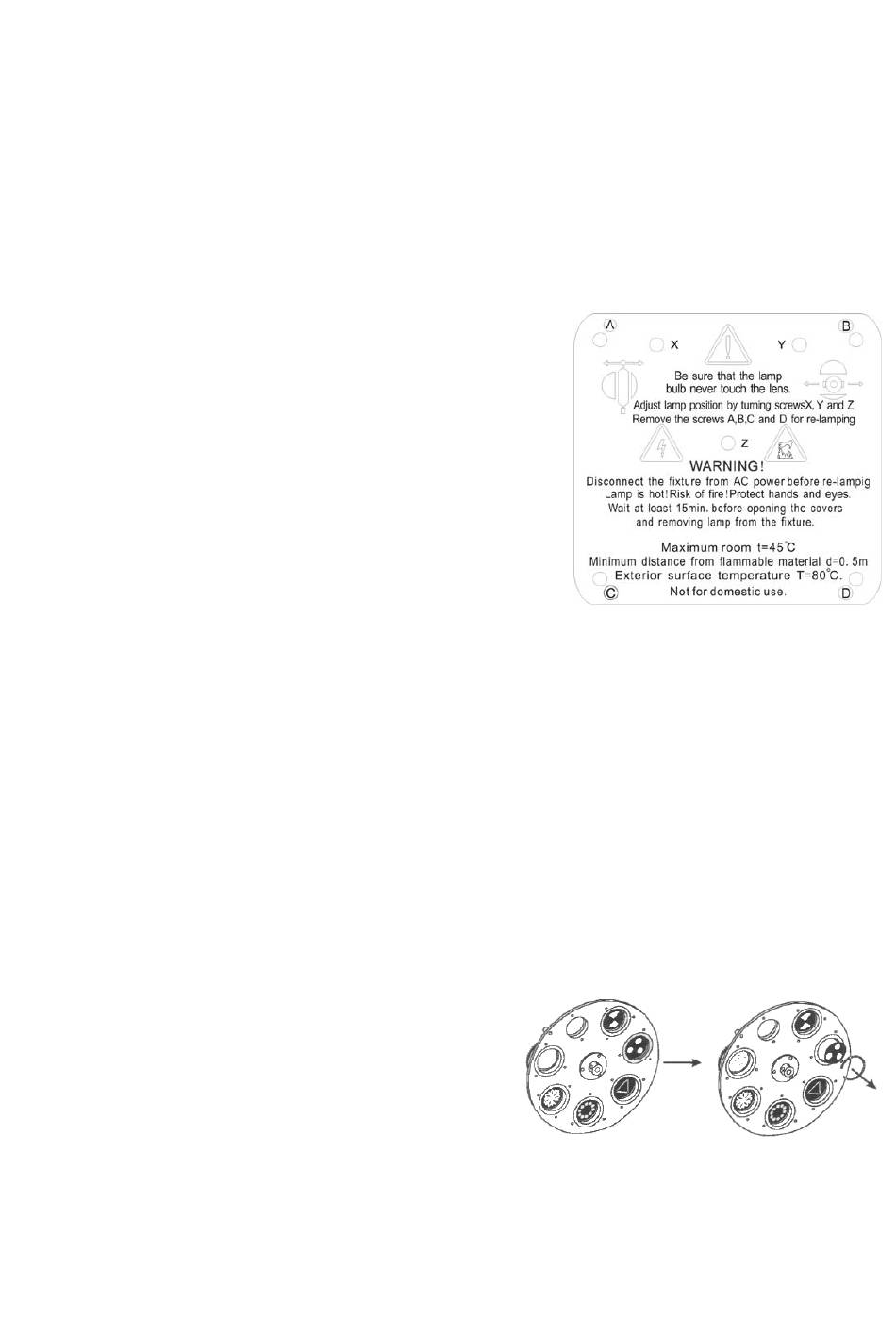

a) Fitting the Lamp
To insert the MSD250/2 lamp open the top cover of the
projector-head by unscrewing the 4 screws on the cover. Then
open the small lamp cover by unscrewing the 2 fastening
screws. If changing the lamp remove the old lamp from the
socket. Insert the lamp in the socket. Do not install a lamp
with a higher wattage! A lamp like this generates
temperatures the device is not designed for. Do not touch the
glass bulb with bare hands during the installation. Make sure
that the lamp is installed tightly into the socket. Close the
small lamp cover by screwing the fastening screws tightly.
Close the top cover of the head and tighten the 4 screws.
b) Lamp Adjustment
The lamp holder is aligned at the factory. Due to difference between lamps, fine adjustment may
improve light performance. Strike the lamp, open the shutter and the iris, set the dimmer to 100%
and focus the light on a flat surface (wall). As the optimum distance of the lamp from lens was
adjusted during the installing or changing the lamp (by turning screw "A"), it is necessary to adjust
only the second position by turning screw "B", in order to centre the hot-spot (the brightest part of
the beam). If the light on the edge seems to be too bright, you can lower intensity by moving the
lamp closer to the reflector. Do so by turning screw "A" until the light is evenly distributed. If the
Light on the edge seems to be brighter as in the centre, the lamp is too close at the reflector. In this
case, you need to move the lamp away from the reflector until the light is evenly distributed and the
beam appears bright enough.
c) Inserting / Exchanging Gobos
Turn off the lamp and allow it cool for at least 10 minutes. Disconnect the fixture from the mains. To
insert the gobos open the top covers of the head by unscrew the screws on the top cover and follow
the instructions below:
Rotating Gobo Wheel
Press the ends of the fixation ring together with an
appropriate tool and remove it. Remove the gobo and
insert the new gobo. Press the ends of the fixation-ring
together and insert it in the front of the gobo.
d) Mounting the Device
• Have the device installed by a qualified person, respecting EN 60598-2-17 and all other applicable
norms.
• The carrying construction must be able to support 10 times the weight of the device for 1 hour
without deforming.
• The installation must always be secured with a secondary attachment e.g. a safety cable.
VDP250MHS18FL2_v2 HQPOWER™
