System description

Principle of operation
The solar coil and water heater's volume are adjusted to maximum 6 m
m 2 .

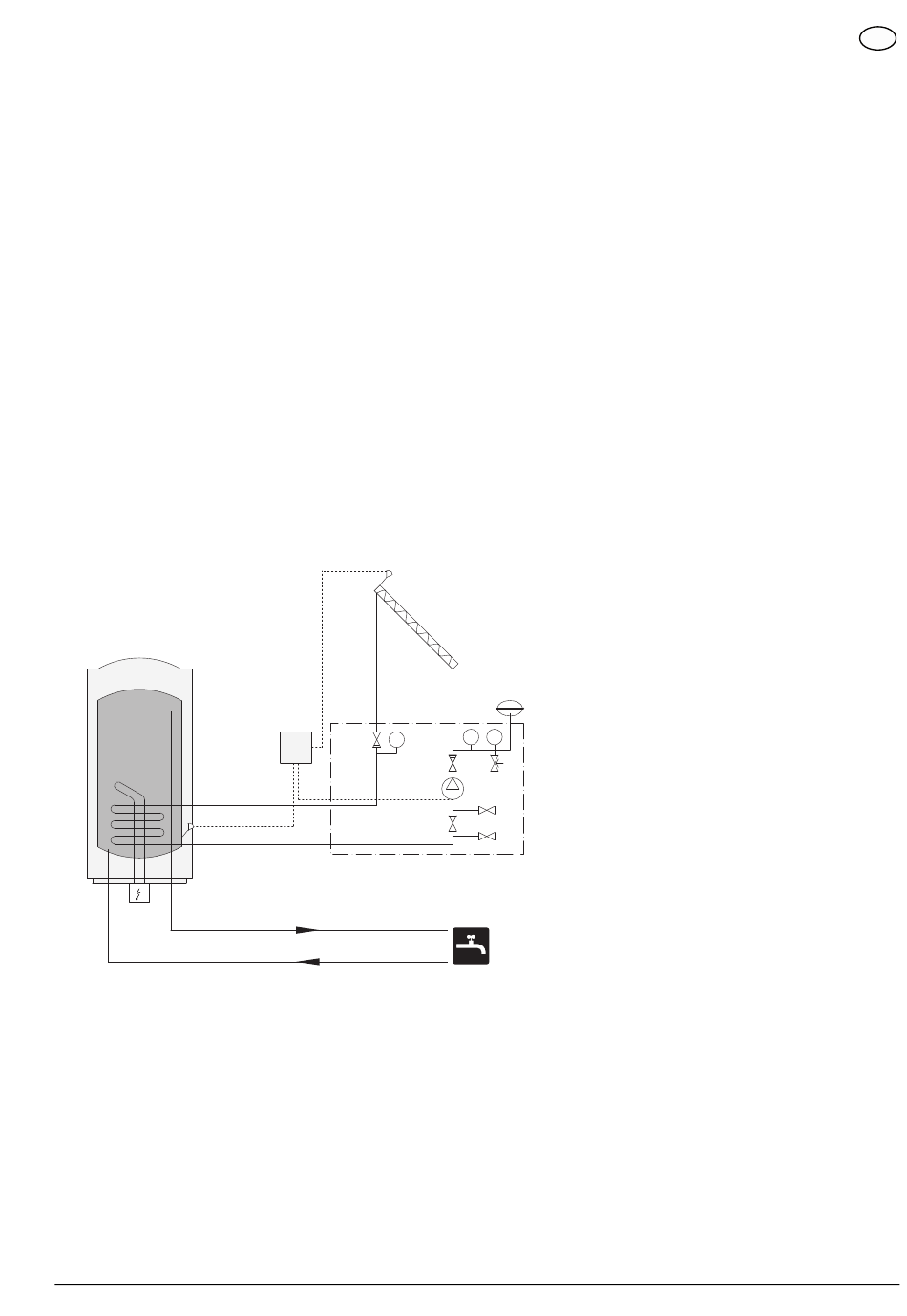

System diagram
Compact Sol has been specially developed to work with NIBE solar control, SCU 10. The solar panel's charge automation
must be limited to a max temperature of 80 °C. This is to prevent temperatures higher than 85 °C in the water heater.
Components
EP30 Solar control SCU 10
AA25 Control unit
BT53 Temperature sensor, solar panel
BT54 Temperature sensor solar
GP30 Pump station SPS 10/SPS 20
FL4 Safety valve, solar
GP4 Circulation pump, solar
QM43 Shut-off valve
-CP1
-EP30-BT54
NOTE! This is an outline diagram. Actual installations must be planned according to applicable regulations.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Rights to make any design or technical modifications are reserved.
©NIBE 2015.
INSTALLATION AND MAINTENANCE INSTRUCTIONS
COMPACT
-EP30-BT53
-EP8
-EP30
-GP30
-AA25
-RM4
T
-RM3
-GP4
-QM45
COMPACT
2
solar panel area. The solar coil has an area of 0,75
QM44 Shut-off valve
QM45 Shut-off valve
RM3 Non-return valve
RM4 Non-return valve
Miscellaneous
CP1 Compact Sol
CM5 Expansion vessel, solar circuit
EP8 Solar panel
-CM5
T P
-FL4
-QM44
-QM43
GB
9
