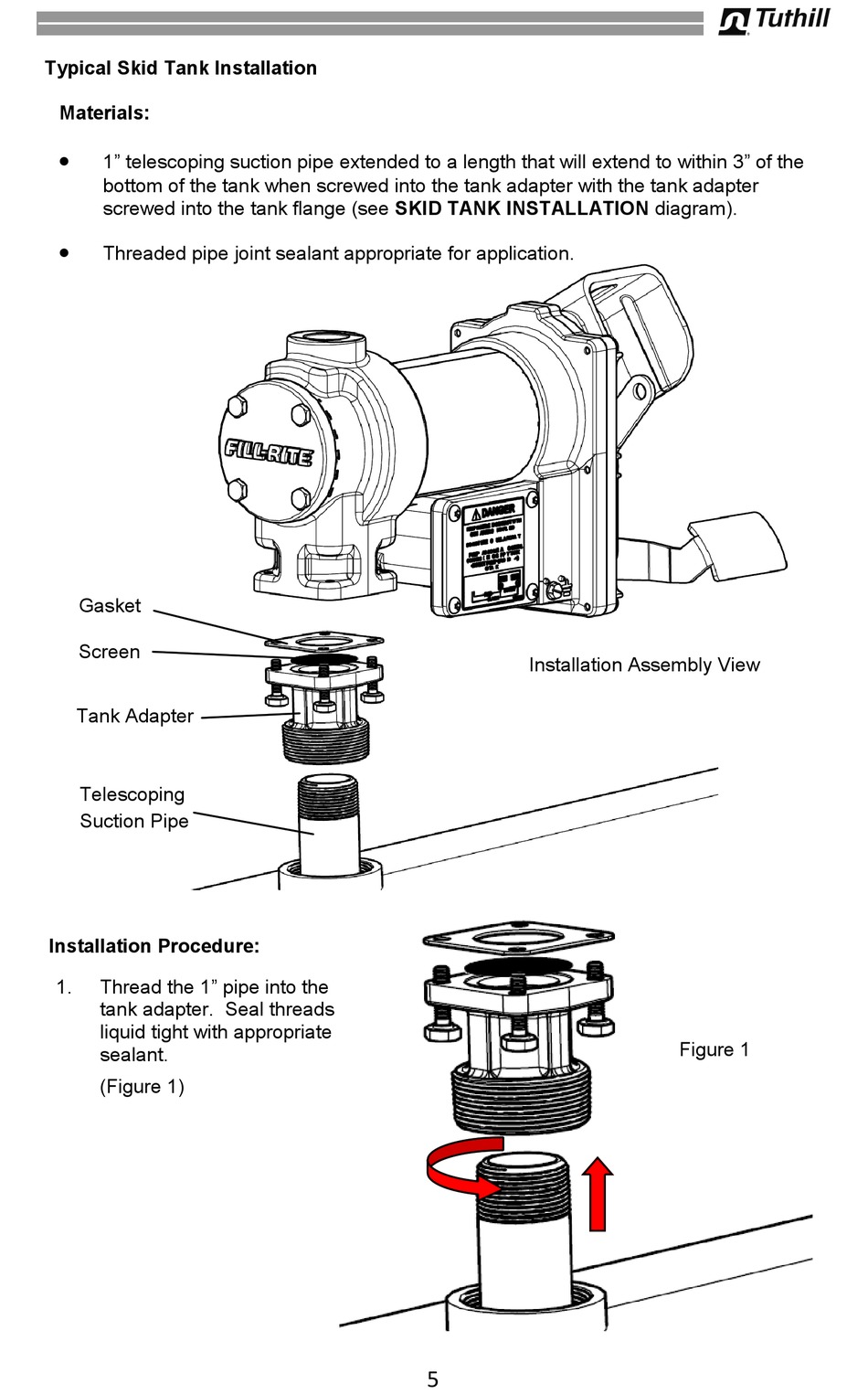

Typical Skid Tank Installation
Materials:

1" telescoping suction pipe extended to a length that will extend to within 3" of the
bottom of the tank when screwed into the tank adapter with the tank adapter
screwed into the tank flange (see SKID TANK INSTALLATION diagram).

Threaded pipe joint sealant appropriate for application.
Gasket
Screen
Tank Adapter
Telescoping
Suction Pipe

Installation Procedure:

1. Thread the 1" pipe into the
tank adapter. Seal threads
liquid tight with appropriate
sealant.
(Figure 1)
Installation Assembly View
5
Figure 1
