HV-120081.3

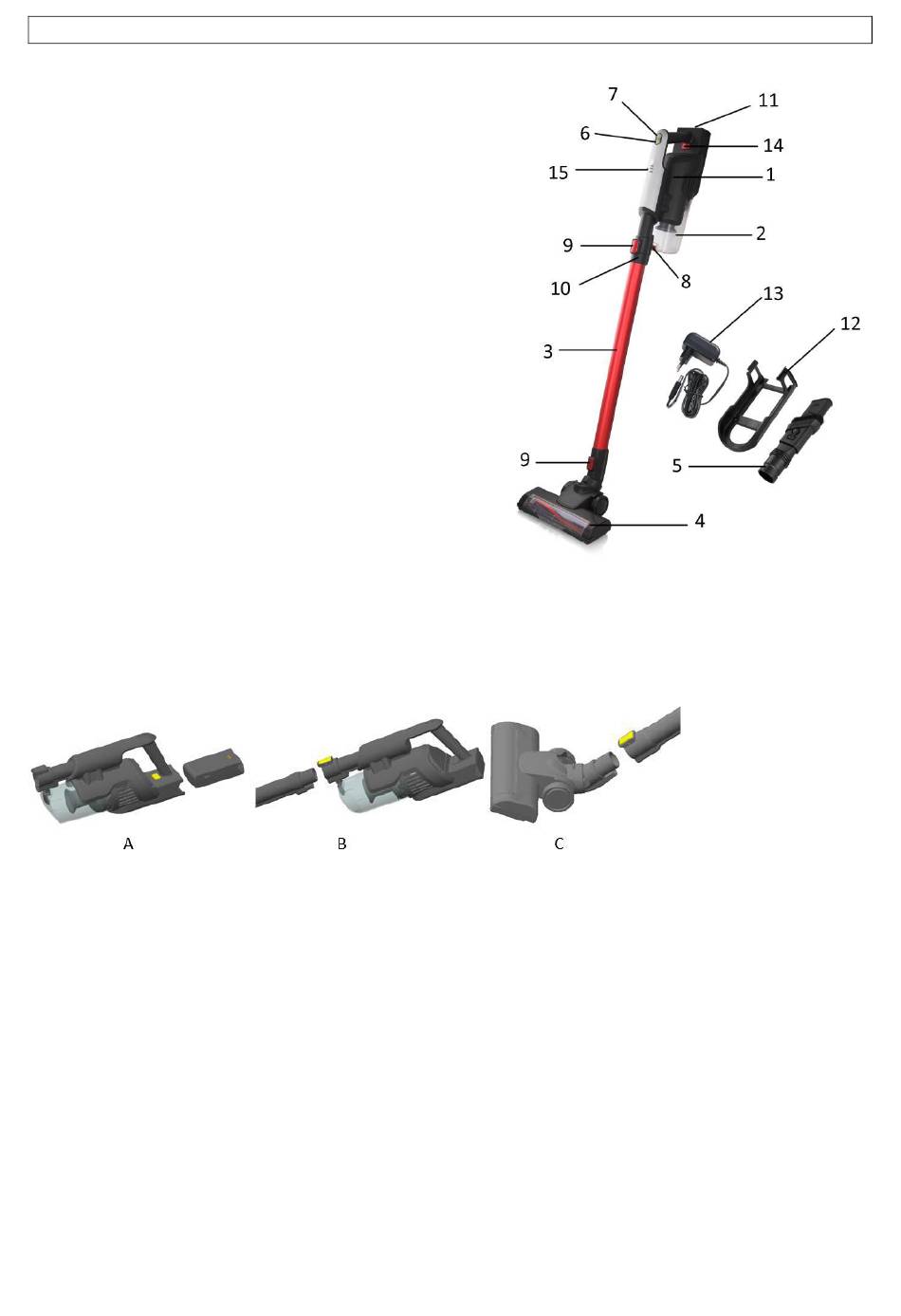

PARTS DESCRIPTION
1. Main unit
2. Dust cup
3. Extension tube
4. Floor brush
5. 2 in 1 nozzle
6. Speed button
7. On/off button
8. Dust cup release button
9. Accessory release button
10. Suction hole opening
11. Battery
12. Wall-mounted bracket
13. Charger
14. Battery release button
15. Battery pilot lights
OPERATION
1. Correctly insert the battery into the battery compartment. (Fig. A)
If you want to take out the battery: press the battery release button, pull the battery out of the compartment
in the same time.
2. Insert the extension tube into the suction hole opening; make sure it fits firmly. (Fig. B)
3. Attach the floor brush to the other side of the extension tube. (fig.C)
4. If you want to use the attachment 2 in 1 nozzle, attach it to the suction hole opening directly or to the other
side of the extension tube instead of the floor brush according to your own desire.
Note: The floor brush can also be attached to the suction hole opening directly.
5. Press the on/off button to turn on the appliance. The appliance will operate with high speed. The indicator
light of "max" will illuminate.
6. Press the speed button, the appliance will switch to low speed. The indicator light of "eco" will illuminate.
Press the speed button again, the appliance will switch back to high speed.
NOTE: During use, please pay attention to the dust capacity and empty the dust cup before it is full. This appliance
is for dry suction only.
Caution: The suction hole opening must be open and free of any obstructions at all times. Otherwise, the motor
will overheat and could become damaged.
RECHARGING THE APPLIANCE:
1. When one pilot light is blinking in the process of operation, the appliance needs to be recharged.
2. Insert the connector pin into the charger hole of the appliance, and then plug the charger into the power
socket. The appliance is in charge.
