Model HT- HT- HT-
HOWSON- HOWSON- HOWSON-
18TE 18SE 18BE
Dimensions 460 460 493
[mm] x605x975 x560x925 x460x280
Weight [kg] 10,8 10,9 13
AREAS OF APPLICATION
The device is designed for removing leaves from freshly cut
branches of various kinds.
The user is responsible for any damage resulting from
non-intended use of the device.
BERORE THE FIRST USE
Upon receipt of the goods, check the package integrity
before opening it. If the packaging is damaged, please
contact your carrier company and distributor within 3 days,
and document the damages as detailed as possible. Do not
turn the package upside-down! In case of transporting the
package, please kept it always horizontal and stable.
DISPOSING OF PACKAGING
Please keep all packaging materials (cardboard, plastic
tapes and Styrofoam), so in case of a problem, the device
can be sent back to the service centre in accurate condition!

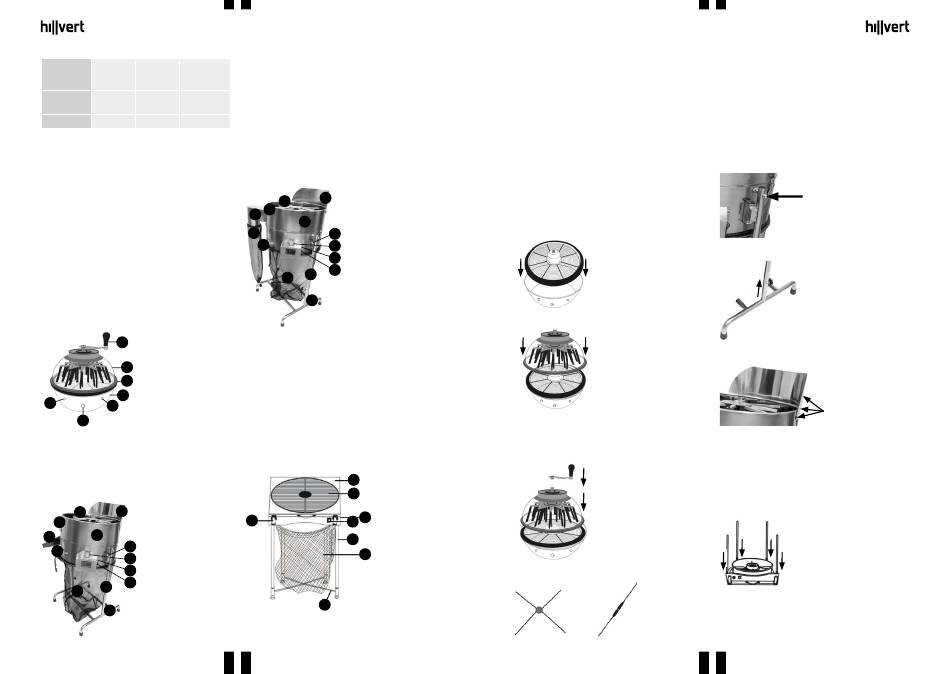

PRINCIPLE OF OPERATION
HT-HOWSON-16TE/
HT-HOWSON-19TE/HT-HOWSON-24TE
1
2
3
4
7
5
6
1. Crank
2. Cover
3. Mesh with blades
4. Bowl
5. Power connection
6. Rotational speed adjustment knob
7. Diode
HT-HOWSON-18TE
2
1
13
3
12
4
11
5
6
7
8
10
9
8
EN
1. Spinning blades with rubbers
2. Cover
3. Drum
4. Snap fastener
5. Rotational speed adjustment knob
6. Power connection
7. Switch On/Off
8. Stand leg
9. Stand base
10. Leaf bag
11. Handle
12. Waste chute
13. Chute lid
HT-HOWSON-18SE
2
1
14
13
3
12
4
11
5
6
7
8
10
9
1. Spinning blades with rubbers
2. Cover
3. Drum
4. Snap fastener
5. Rotational speed adjustment knob
6. Power connection
7. Switch On/Off
8. Stand leg
9. Stand base
10. Leaf bag
11. Handle
12. Waste bag
13. Waste chute
14. Chute lid
HT-HOWSON-18BE
1
2
3
8
4
5
6
7
15.11.2017
1. Housing
2. Mesh
3. Power connection
4. Rotational speed adjustment knob
5. Stand leg
6. Leaf bag
7. Stand base
8. Cover snap fastener
INSTALLING THE APPLIANCE
APPLIANCE LOCATION
Keep the device away from hot surfaces. The device should
always be kept out of reach of children and mentally
disabled person. Always ensure unobstructed access to the
electricity plug. Make sure the power source reflects the
parameters on the rating plate.
Preparing for use
HT-HOWSON-16TE/
HT-HOWSON-19TE/HT-HOWSON-24TE
1. Place mesh with blades over the bowl
2. Place cover (2) on the bowl with mesh. Ensure it is on
properly.
3. Connect power to (5), the diode (7) will not be on if
the machine is not spinning.
4. Use knob (6) to set the rotational speed for the blade
and rubbers. When in use the diode (7) will be red.
For manual operation attach the crank as per the drawing
below.
Two types of blades can be installed in the device:
Crosswise: Lengthwise:
15.11.2017
EN
TO CHANGE THE BLADE:
1. Remove the cover (2).
2. Remove the mesh with blades (3) from the bowl (4).
3. Turn the mesh with blades so that the blades are
facing upwards.
4. Remove the nut and carefully remove the blade.
5. Attach new blade, tighten the nut. Reverse these
steps to assemble the device.
HT-HOWSON-18TE/HT-HOWSON-18SE
1. Place the drum with the upper surface facing down.
2. Insert stand legs into the drum, align notch with legs
in snap fastener.
3. Place stand base over the stand legs and screw
together.
4. Turn the device the right side up.
5. Mount cover to the drum.
6. Screw / slide (depending on the model) waste chute
to the drum.
7. Attach bags and fasten using string pullers.
HT-HOWSON-18BE
1. Place the cover, mesh and blade with the upper side
facing down.
2. Insert stand lags on the holes as shown on the
diagram below, fasten them by tightening the on the
inside of the housing.
3. Insert perpendicular stand legs with feet in the legs
already in place. Fasten by tightening screws.
